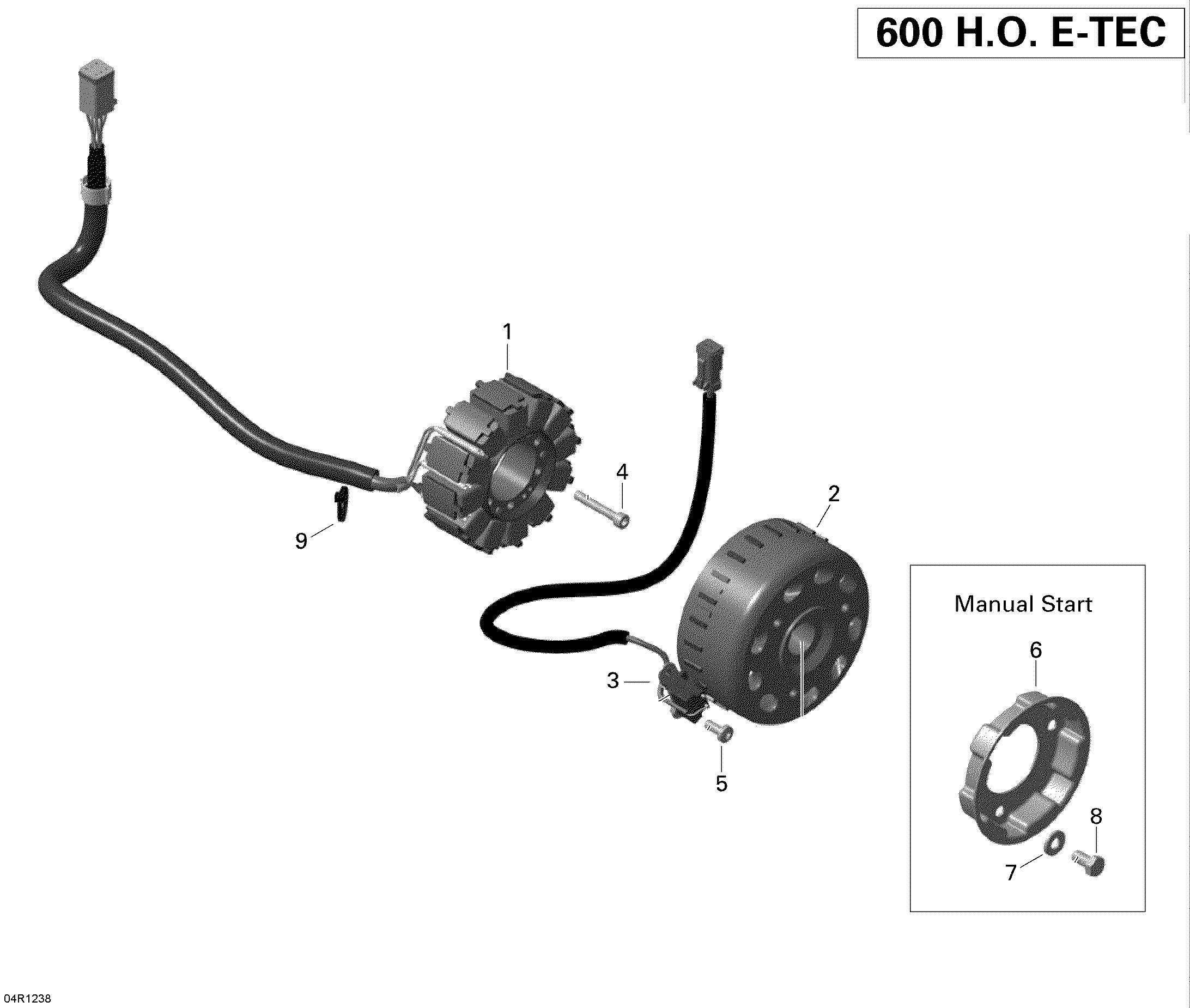

03- Magneto для BRP Ski-Doo Expedition SE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1420665433 Stator PlateStator Plate
-
2420665442 FlywheelFlywheel
-
3410922969 Pick-Up Ass'yPick-Up Ass'y
-
4420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
5420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
6420852532 Starting Pulley. Manual StartStarting Pulley. Manual Start
-
7420827405 Flat Washer. Manual StartFlat Washer. Manual Start
-
8207181644 Hex. Screw M8 x 16. Manual StartHex. Screw M8 x 16. Manual Start
-
9420866714 Tie RapTie Rap
