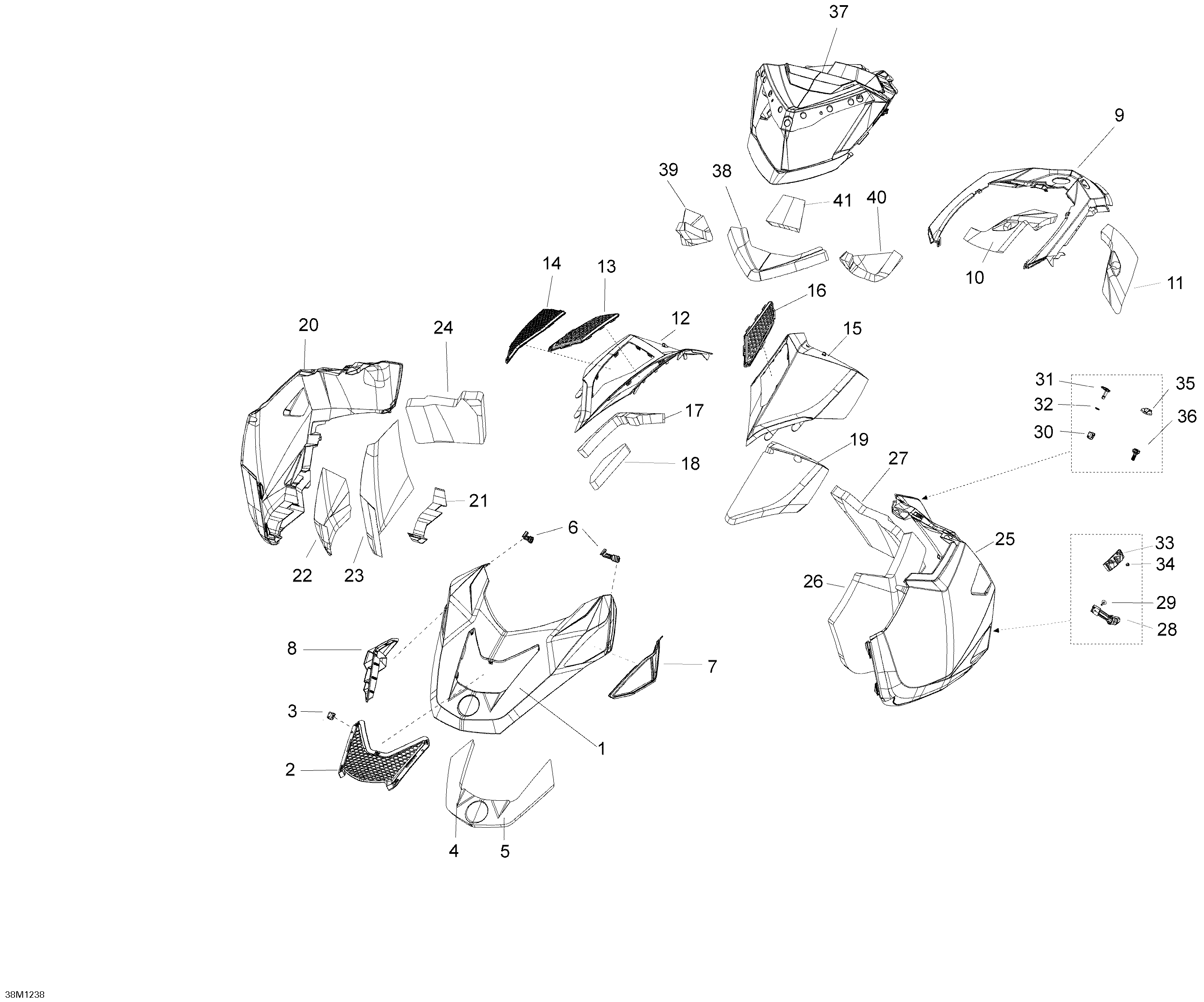

09- Hood для BRP Ski-Doo Expedition SE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1517304814 Hood, White. North AmericaHood, White. North America
-
1517304818 Hood. EuropeHood. Europe
-
2517304843 Hood GrillHood Grill
-
3517302785 ClipClip
-
4517304330 Insulator LHInsulator LH
-
5517304214 Insulator RHInsulator RH
-
6517304289 Latch PannelLatch Pannel
-
7508000609 Air FilterAir Filter
-
8517304155 Scoop GrillScoop Grill
-
9517304820 ConsoleConsole
-
10517304318 InsulatorInsulator
-
11517304317 InsulatorInsulator
-
12517304826 Side Access Panel RH. North AmericaSide Access Panel RH. North America
-
12517304824 Side Access Panel RH. EuropeSide Access Panel RH. Europe
-
13517304015 RH Access Panel GrillRH Access Panel Grill
-
14517304016 RH Lower Acces GrillRH Lower Acces Grill
-
15517304837 Side Access Panel LH. North AmericaSide Access Panel LH. North America
-
15517304839 Side Access Panel LH. EuropeSide Access Panel LH. Europe
-
16517303893 LH Access Panel Grill. North AmericaLH Access Panel Grill. North America
-
15517304835 Upper Side panel LH. EuropeUpper Side panel LH. Europe
-
17517304311 InsulatorInsulator
-
18517304312 InsulatorInsulator
-
19517304313 InsulatorInsulator
-
20517304866 Side Pannel RHSide Pannel RH
-
21517304215 Aluminium FoilAluminium Foil
-
22517304216 Aluminium FoilAluminium Foil
-
23517303890 RH FoamRH Foam
-
24517304310 RH Rear FoamRH Rear Foam
-
25517304869 Side Pannel LHSide Pannel LH
-
26517303891 LH FoamLH Foam
-
27517304309 LH Rear FoamLH Rear Foam
-
28517304572 Latch-PanelLatch-Panel
-
29293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
31517304296 Quarter-Turn HandleQuarter-Turn Handle
-
32517304538 Locking PlateLocking Plate
-
33517304497 Side Panel SupportSide Panel Support
-
3436005 RivetRivet
-
35860200239 Black Latch KitBlack Latch Kit
-
36517304573 Latch-PanelLatch-Panel
-
37517304272 Indicator SupportIndicator Support
-
38517304314 InsulatorInsulator
-
39517304315 InsulatorInsulator
-
40517304316 InsulatorInsulator
-
41517304319 InsulatorInsulator
