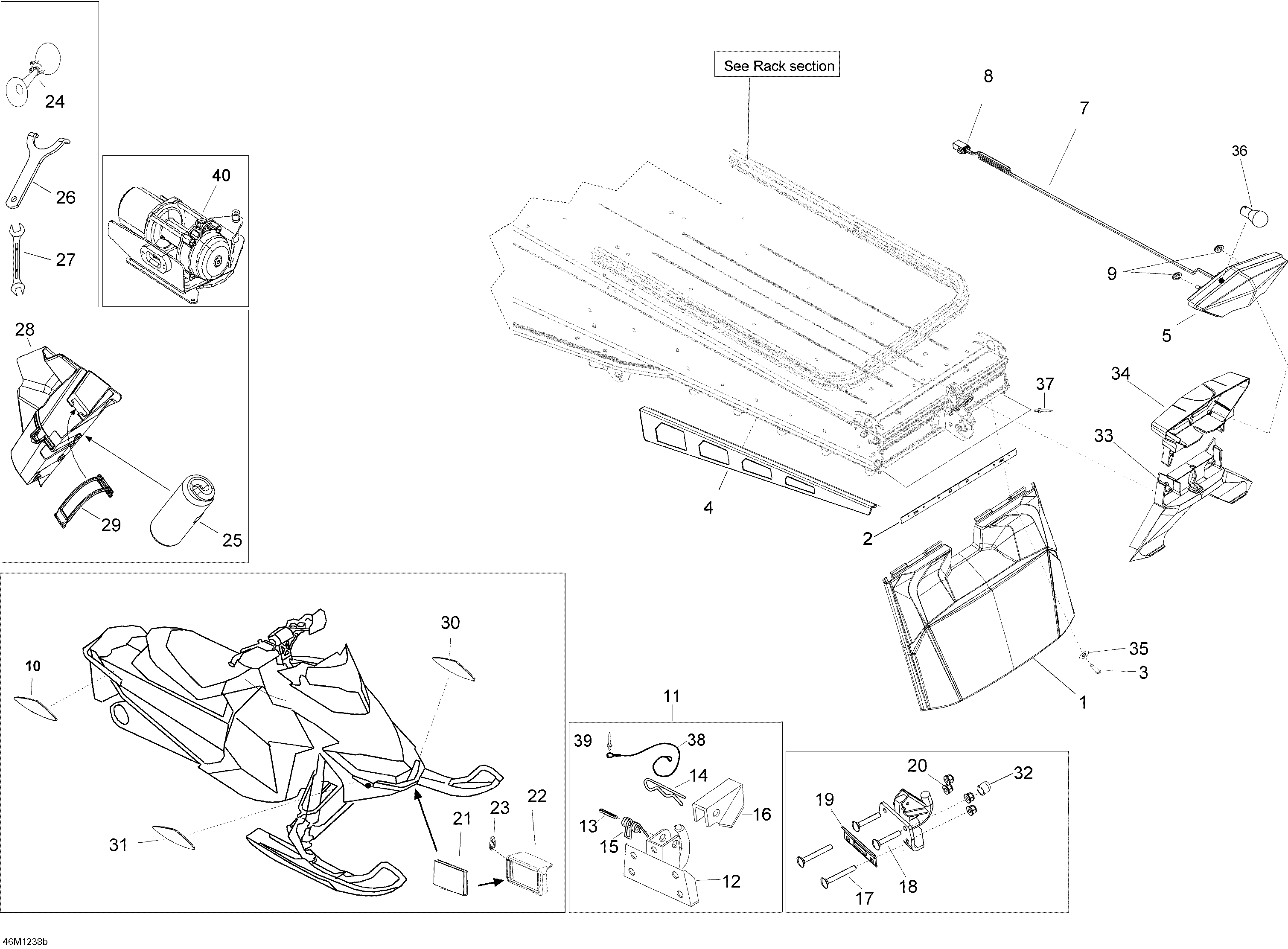

09- Utilities Europe для BRP Ski-Doo Expedition SE 600HOETEC XU - 2012
-
№АртикулНазвание
-
1520001094 Snow Guard 500, Long, BlackSnow Guard 500, Long, Black
-
2520001021 PlatePlate
-
3732600030 ScrewScrew
-
4520000693 RH ProtectorRH Protector
-
4520000694 LH ProtectorLH Protector
-
5520000587 Rear LightRear Light
-
7520000849 Rear Wiring HarnessRear Wiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9705003666 Rubber GrommetRubber Grommet
-
10705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
11520001039 Hitch Ass'yHitch Ass'y
-
13M41012 Retainer PinRetainer Pin
-
14M41029 PinPin
-
15M545693 SpringSpring
-
16520001041 Locking PlateLocking Plate
-
17207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
18207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
19520000727 PlatePlate
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21M21118 Reflector (White)Reflector (White)
-
22520000871 Reflector SupportReflector Support
-
23M27120 Tie Rap 2.4x200Tie Rap 2.4x200
-
24549011291 HornHorn
-
25529000054 Tool KitTool Kit
-
26529035582 Adjustment WrenchAdjustment Wrench
-
28520000720 Tool Kit RackTool Kit Rack
-
29520000528 LatchLatch
-
30520000844 LH ReflectorLH Reflector
-
31520000843 RH ReflectorRH Reflector
-
32M28056 CapCap
-
33511000559 Rear Light SupportRear Light Support
-
34511000764 Rear Light CoverRear Light Cover
-
35250200025 Washer M5Washer M5
-
36520000758 BulbBulb
-
37293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
38M5446839 Retainer CableRetainer Cable
-
39390909100 Avex RivetAvex Rivet
-
40619400069 Winch KitWinch Kit
