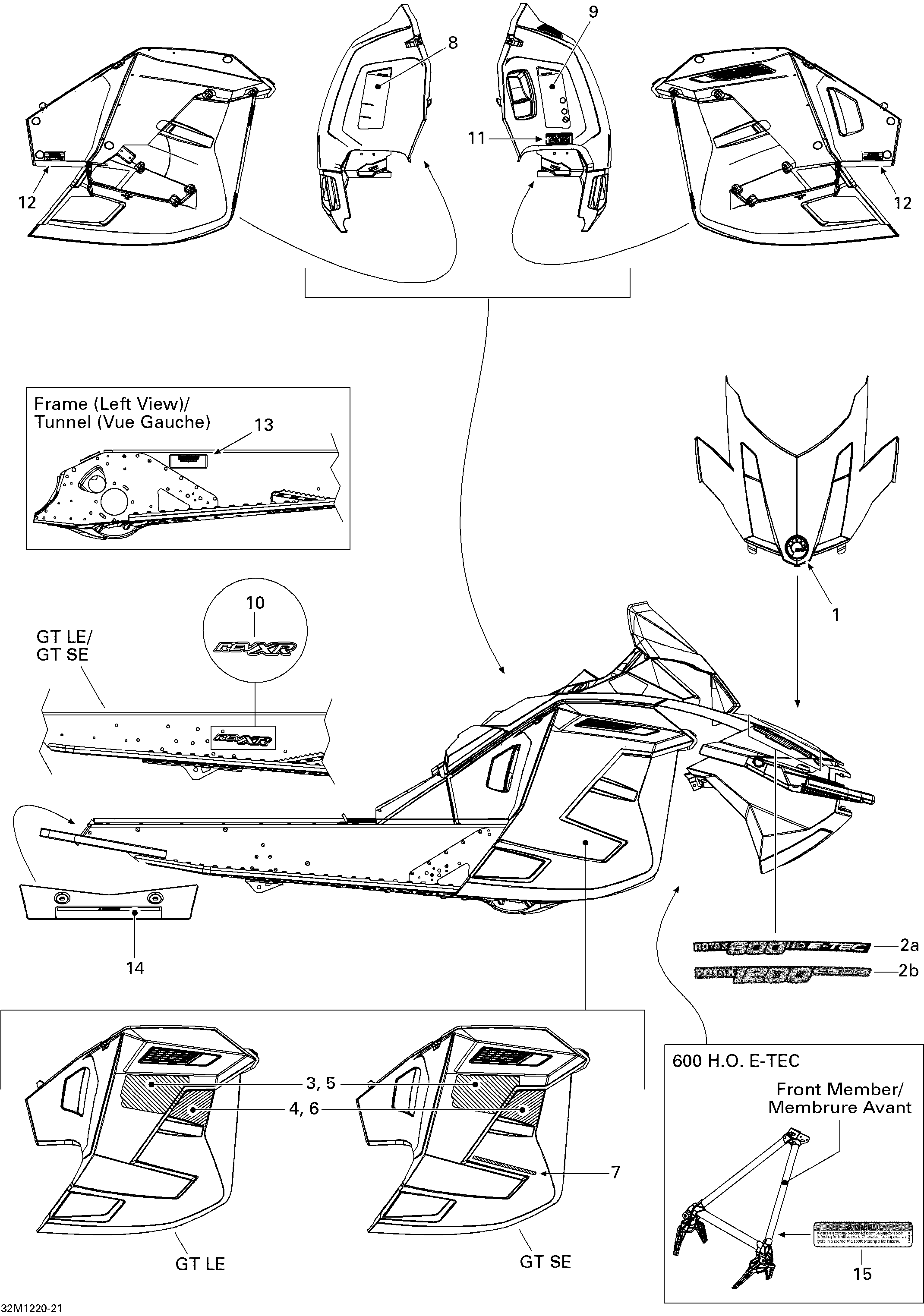

09- Decals для BRP Ski-Doo Grand Touring LE 600HOETEC XR - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2a516004686 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004884 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
4516004504 RH Front Upper Side DecalRH Front Upper Side Decal
-
5516004883 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
6516004503 LH Front Upper Side DecalLH Front Upper Side Decal
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004888 Warning Decal, SecurityWarning Decal, Security
-
10516004207 Decal, REV XRDecal, REV XR
-
11516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
12516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
14516004440 Warning Decal, TrackWarning Decal, Track
-
15516003940 Warning Decal, InjectorsWarning Decal, Injectors
