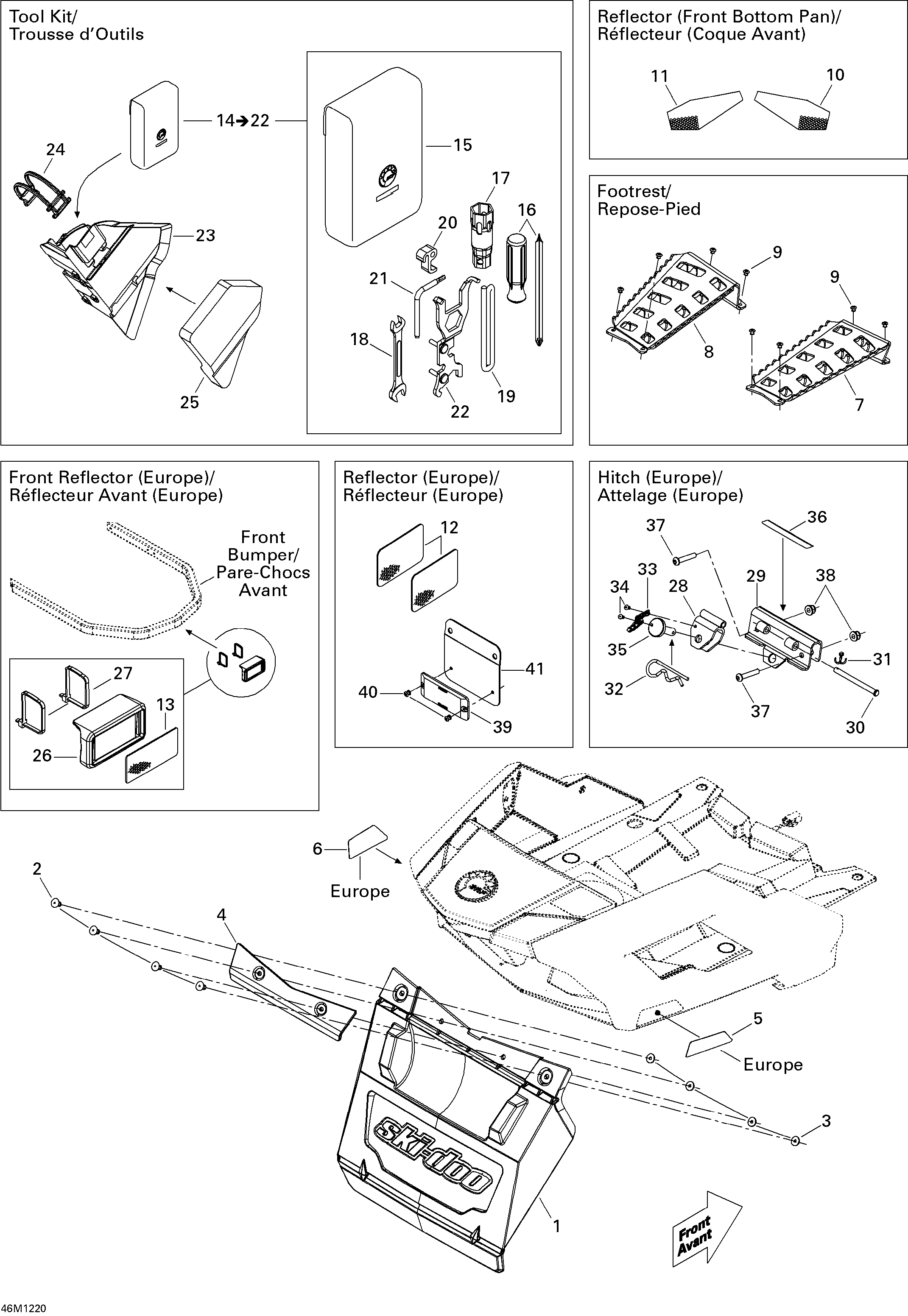

09- Utilities для BRP Ski-Doo Grand Touring LE 600HOETEC XR - 2012
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4520000751 ReinforcementReinforcement
-
5520000803 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
6520000804 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
7520000887 RH FootrestRH Footrest
-
8520000888 LH FootrestLH Footrest
-
9390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
10520000759 RH Front ReflectorRH Front Reflector
-
11520000760 LH Front ReflectorLH Front Reflector
-
12520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
13415037900 Reflector, White. EuropeReflector, White. Europe
-
14529000065 Tool Kit. Includes 14 to 22Tool Kit. Includes 14 to 22
-
16529000004 Screw DriverScrew Driver
-
18529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
19412500200 Starter Rope, MeterStarter Rope, Meter
-
20529000060 Starter GripStarter Grip
-
21520001142 Spacing ToolSpacing Tool
-
22520000988 Wrench SuspensionWrench Suspension
-
23520000720 Tool Kit RackTool Kit Rack
-
24520000528 LatchLatch
-
25520001060 FoamFoam
-
26520000871 Reflector Support. EuropeReflector Support. Europe
-
27293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
28511000554 Support. EuropeSupport. Europe
-
29511000588 Hitch Plate. EuropeHitch Plate. Europe
-
30511000520 Clevis Pin. EuropeClevis Pin. Europe
-
31371800200 Cotter Pin. EuropeCotter Pin. Europe
-
32114045200 Hair Pin. EuropeHair Pin. Europe
-
34390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
35511000555 Pin. EuropePin. Europe
-
36516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
37205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
38233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
-
39510004350 Lens. EuropeLens. Europe
-
40390402000 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
41520000933 Reflector Support. EuropeReflector Support. Europe
