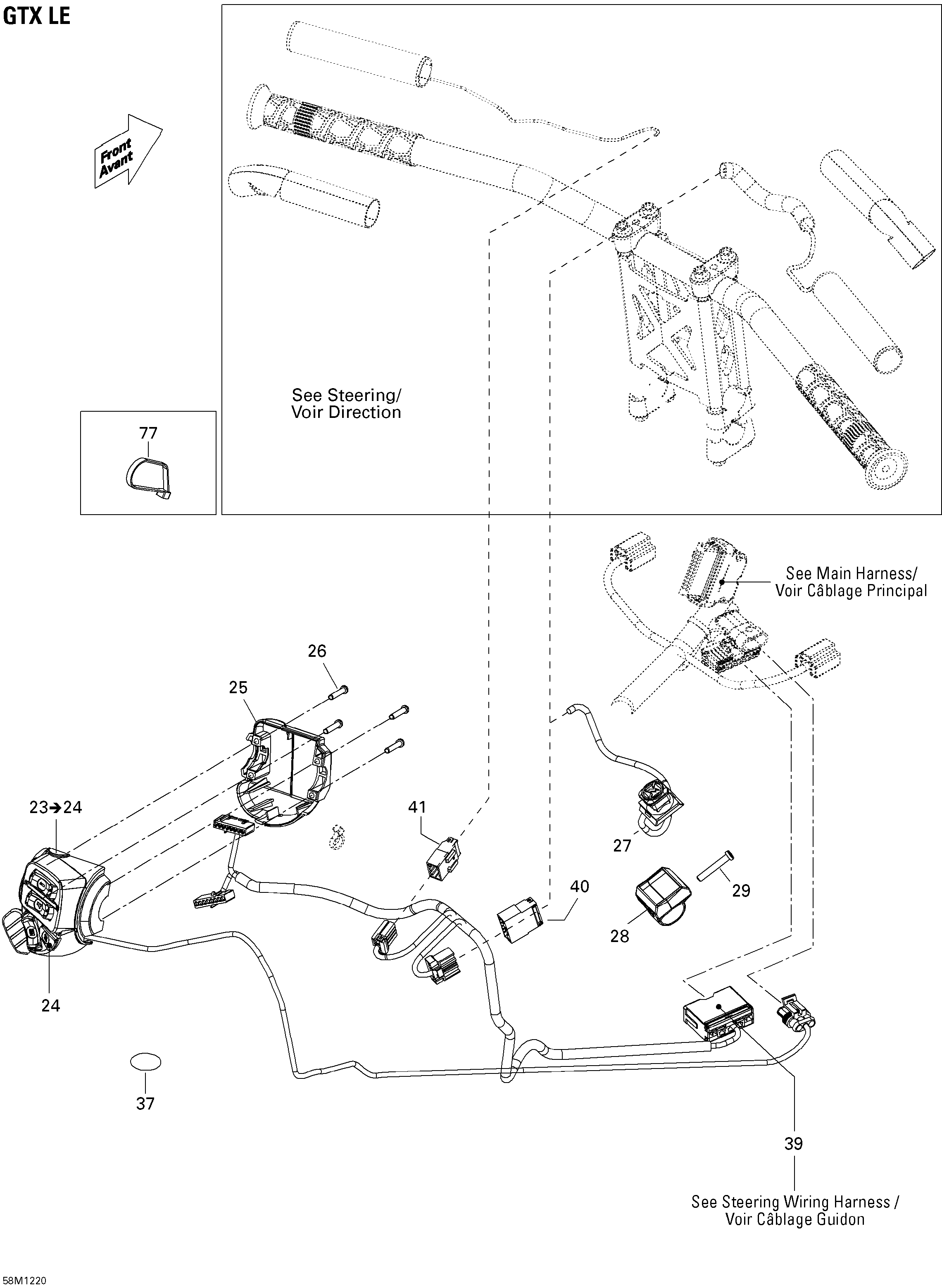

10- Electrical Accessories, Steering для BRP Ski-Doo Grand Touring LE 600HOETEC XR - 2012
-
№АртикулНазвание
-
23515177020 LH Housing. GTXLH Housing. GTX
-
24515176088 Start/RER Button. GTXStart/RER Button. GTX
-
25515175926 Housing Switch Plate. GTXHousing Switch Plate. GTX
-
26250000263 Torx Screw #8-18. GTXTorx Screw #8-18. GTX
-
27515177061 Kill SwitchKill Switch
-
28515176825 Kill Switch SupportKill Switch Support
-
29250000263 Torx Screw #8-18Torx Screw #8-18
-
37518325560 Adhesive Patch. Except SEAdhesive Patch. Except SE
-
39515176868 Steering Wiring Harness Ass'y. GTXSteering Wiring Harness Ass'y. GTX
-
40515175662 Male Terminal Housing, 6 Circuits. GTXMale Terminal Housing, 6 Circuits. GTX
-
41515175846 Male Terminal Housing, 4 Circuits. GTXMale Terminal Housing, 4 Circuits. GTX
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750009 Tie-Rap 173 mmTie-Rap 173 mm
