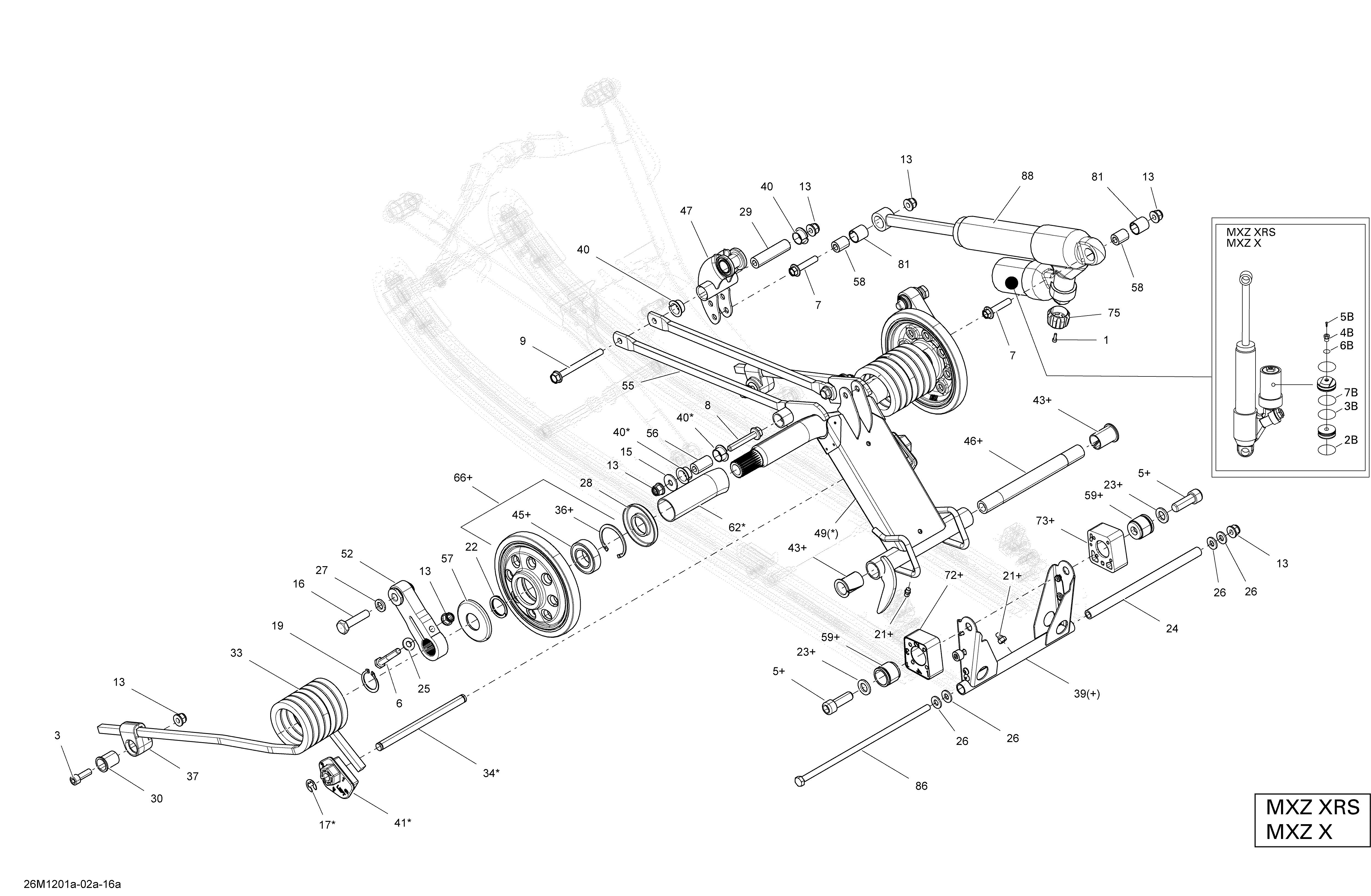

08- Rear Suspension Rear Arm Fixe (X Model) для BRP Ski-Doo MXZ X & TNT 1200 XR - 2012
-
№АртикулНазвание
-
1205031060 Socket Screw M3 X 10Socket Screw M3 X 10
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
5205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
6207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
7207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
8207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
9207688544 Hex. Flanged ScewHex. Flanged Scew
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234082410 Flat Washer 8 mmFlat Washer 8 mm
-
16207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
19293370080 Retaining RingRetaining Ring
-
21408200700 Grease FittingGrease Fitting
-
22503189146 Axle SpringAxle Spring
-
23517225900 Flat WasherFlat Washer
-
24503189156 Pivot Arm AxlePivot Arm Axle
-
25503189157 WasherWasher
-
26503192494 WasherWasher
-
27503192496 WasherWasher
-
28503190434 Labyrinth SealLabyrinth Seal
-
29503190643 Bar AxleBar Axle
-
30503190754 Retainer CushionRetainer Cushion
-
33503193158 LH Square SpringLH Square Spring
-
33503193159 RH Square SpringRH Square Spring
-
36415129371 Retaining RingRetaining Ring
-
37503191183 Spring SupportSpring Support
-
39503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
40503191555 Swivel BushingSwivel Bushing
-
40503191555 Swivel BushingSwivel Bushing
-
43503191640 CushionCushion
-
45503191982 Ball BearingBall Bearing
-
46503192330 Lower ShaftLower Shaft
-
47503192531 RockerRocker
-
49503193074 Rear Arm Ass`yRear Arm Ass`y
-
52503193072 Extension Arm Ass'yExtension Arm Ass'y
-
55503192554 Link RodLink Rod
-
56503192555 Axle BarAxle Bar
-
57503192592 Labyrinth RingLabyrinth Ring
-
58503192606 Rear Shock AxleRear Shock Axle
-
59503192749 Guide BlockGuide Block
-
62503192767 BushingBushing
-
66503192808 Wheel 155 Ass'yWheel 155 Ass'y
-
72503192918 LH Cam BlockLH Cam Block
-
73503192919 RH Cam BlockRH Cam Block
-
75503193033 Shock Adjuster KnobShock Adjuster Knob
-
81505072663 BushingBushing
-
86503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
88503192456 Rear ShockRear Shock
-
2b415093807 O-RingO-Ring
-
3b415093806 Piston RingPiston Ring
-
4b505070398 Air ValveAir Valve
-
5b505070399 ScrewScrew
-
6b505070400 O-RingO-Ring
-
7b415093804 O-RingO-Ring
