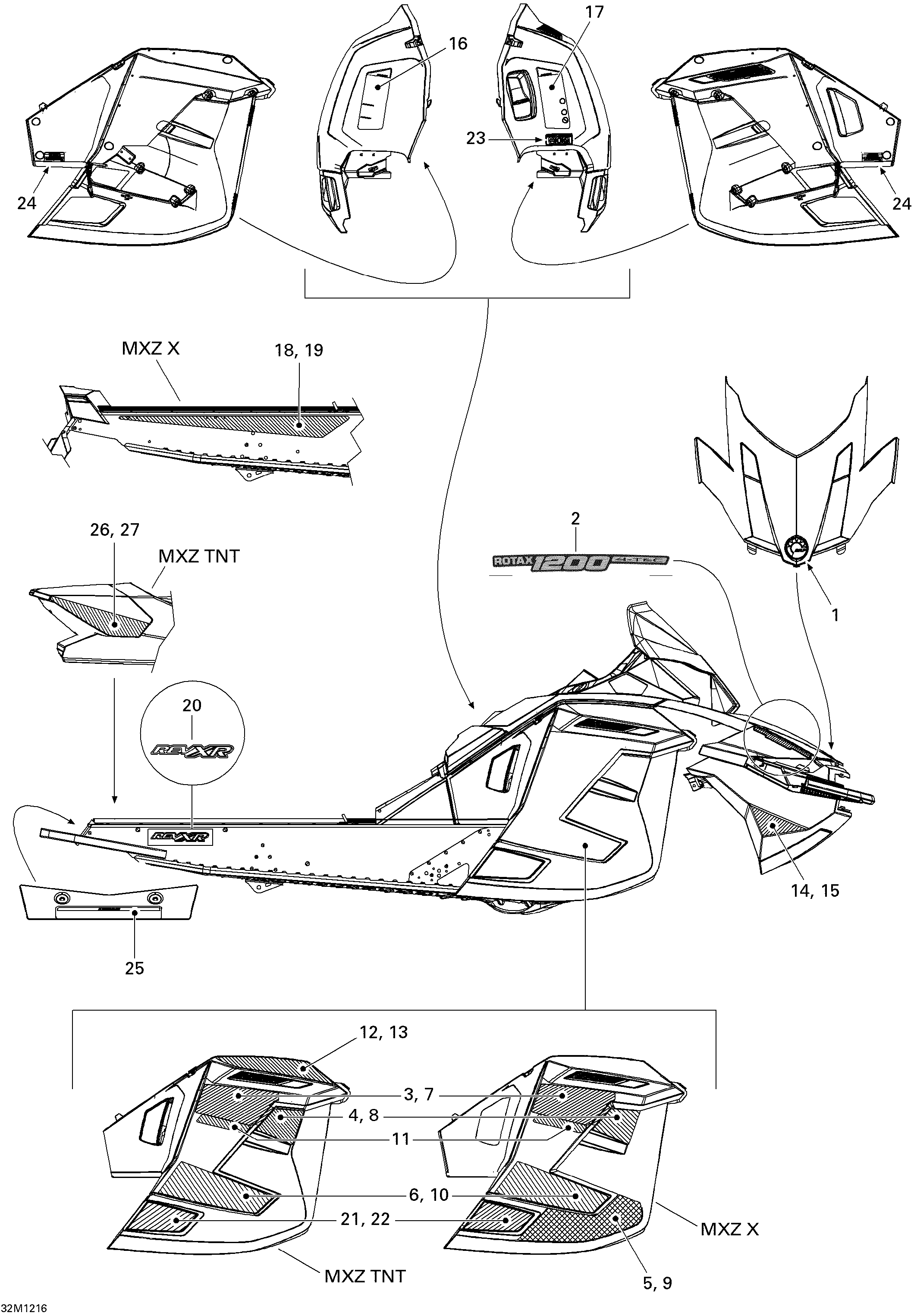

09- Decals X для BRP Ski-Doo MXZ X & TNT 1200 XR - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516004465 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004842 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
4516004844 RH Front Upper Side DecalRH Front Upper Side Decal
-
5516004860 RH Front Side DecalRH Front Side Decal
-
6516004862 RH Side DecalRH Side Decal
-
7516004841 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
8516004843 LH Front Upper Side DecalLH Front Upper Side Decal
-
9516004859 LH Front Side DecalLH Front Side Decal
-
10516004861 LH Side DecalLH Side Decal
-
11516004890 Side Decal, MXZSide Decal, MXZ
-
14516004858 RH Bottom PanRH Bottom Pan
-
15516004857 LH Bottom PanLH Bottom Pan
-
16516004561 Warning Decal, SecurityWarning Decal, Security
-
17516004888 Warning Decal, SecurityWarning Decal, Security
-
18516004868 RH Frame Decal, REV XRRH Frame Decal, REV XR
-
19516004867 RH Frame Decal, REV XRRH Frame Decal, REV XR
-
21516004864 RH Lower DecalRH Lower Decal
-
22516004863 LH Lower DecalLH Lower Decal
-
23516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
24516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
25516004440 Warning Decal, TrackWarning Decal, Track
