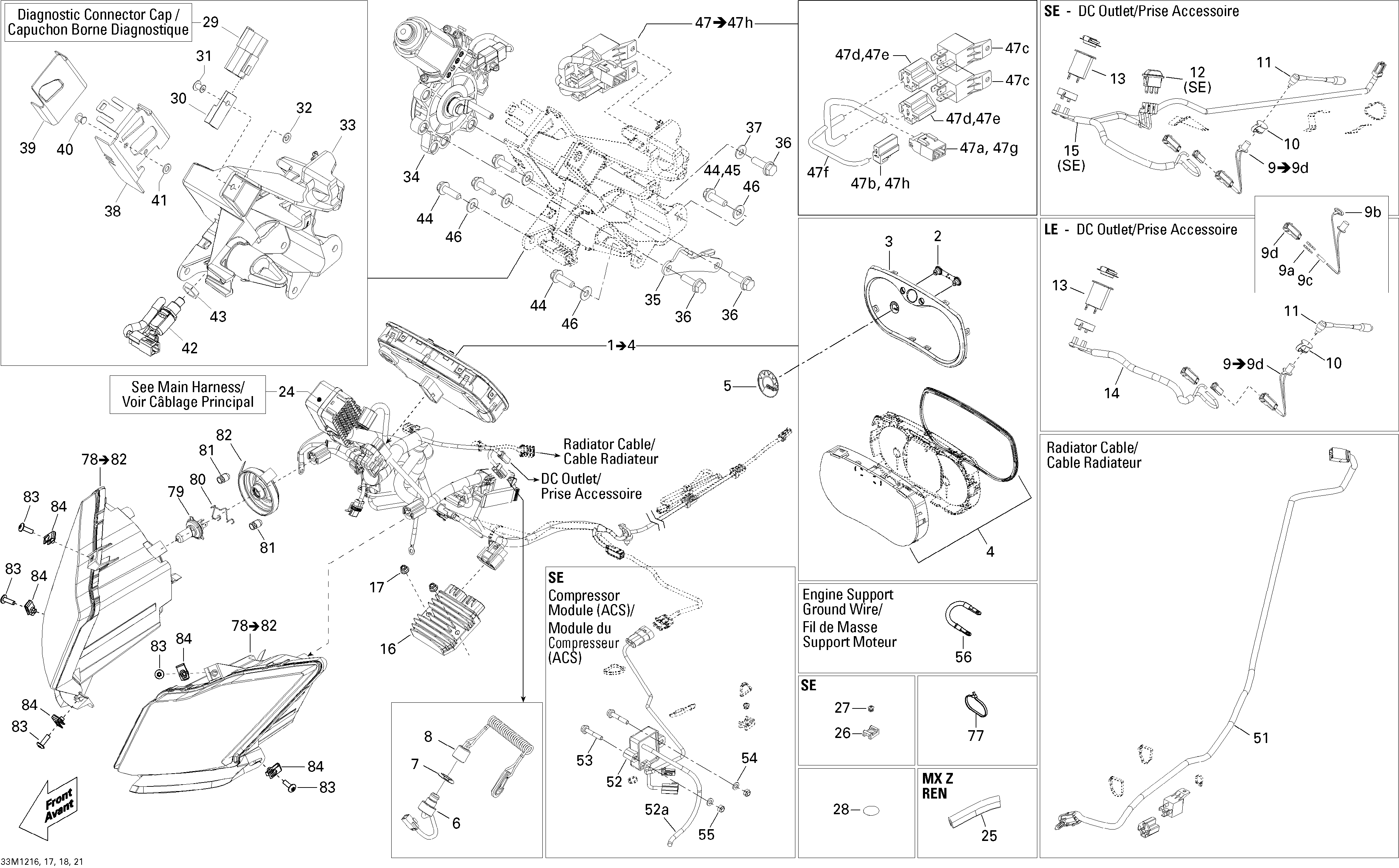

10- Electrical System для BRP Ski-Doo MXZ X & TNT 1200 XR - 2012
-
№АртикулНазвание
-
1515177114 Speedometer. X, Includes 1 to 4Speedometer. X, Includes 1 to 4
-
1515177115 Speedometer. TNT, Includes 1 to 4Speedometer. TNT, Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS SwitchDESS Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
16278002021 Voltage RegulatorVoltage Regulator
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24515177267 Main Harness Ass'yMain Harness Ass'y
-
25271001530 Trim. MX-ZTrim. MX-Z
-
28518325560 Adhesive PatchAdhesive Patch
-
29515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
30270000141 ClipClip
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32234051410 Flat Washer M5Flat Washer M5
-
33515177044 PlatePlate
-
38515176514 Fuse HolderFuse Holder
-
39515176637 ProtectorProtector
-
40390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41234051410 Flat Washer M5Flat Washer M5
-
42515176472 Switch Ass'ySwitch Ass'y
-
43250000373 Brass NutBrass Nut
-
44210262040 Hex. Flanged Screw M6 X 20. MX-ZHex. Flanged Screw M6 X 20. MX-Z
-
45210262580 Hex. Flanged Forming Screw M6 X 25. MX-ZHex. Flanged Forming Screw M6 X 25. MX-Z
-
46250200039 Flat WasherFlat Washer
-
56515176861 Ground WireGround Wire
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
77293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
78517304194 RH Headlamp Ass'y. Includes 78 to 82RH Headlamp Ass'y. Includes 78 to 82
-
78517304195 LH Headlamp Ass'y. Includes 78 to 82LH Headlamp Ass'y. Includes 78 to 82
-
79515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
80515176493 Bulb HolderBulb Holder
-
81515176498 CapCap
-
82515176499 CoverCover
-
83250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
84250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
