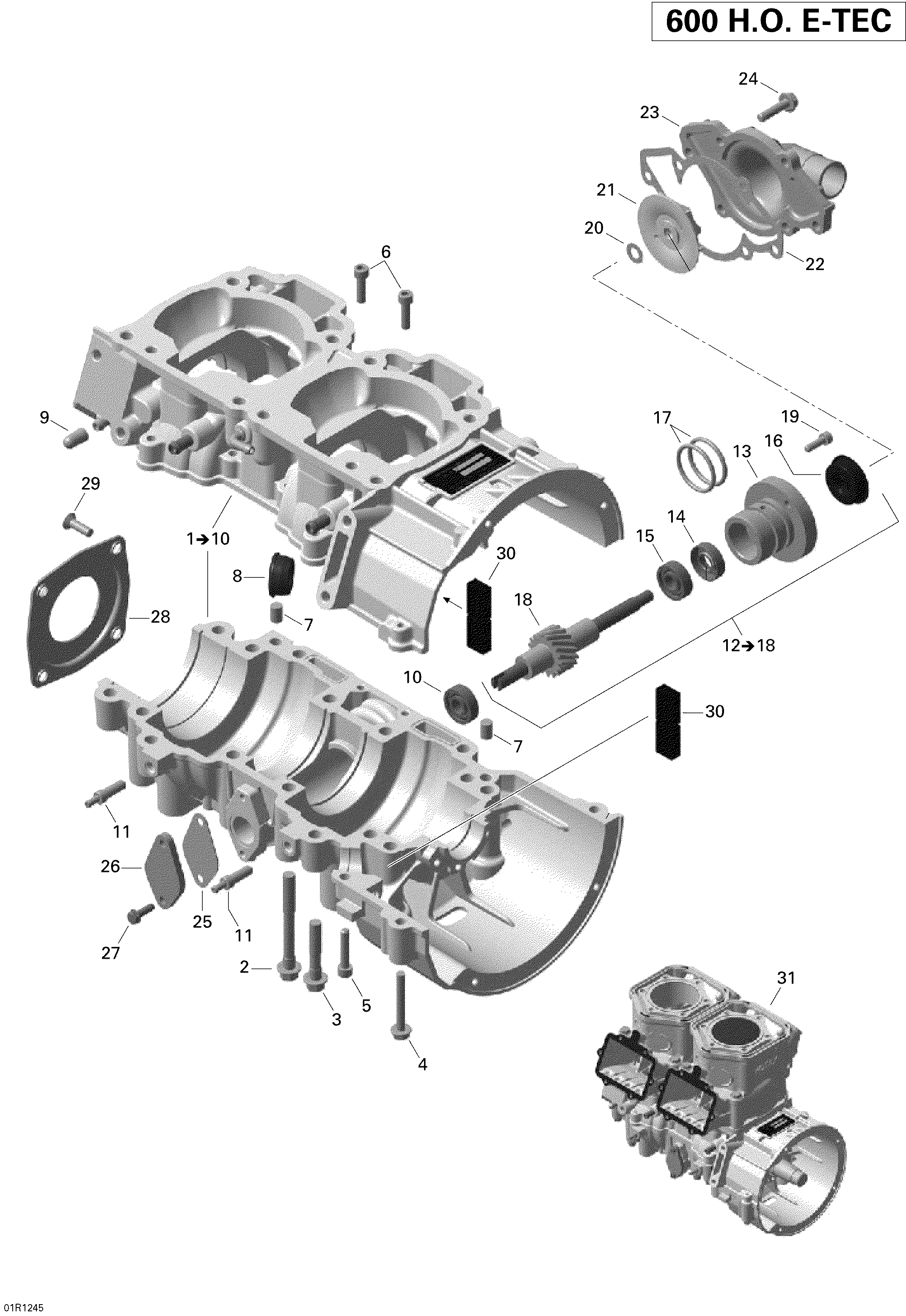

01- Crankcase для BRP Ski-Doo Skandic SWT 600 H.O. E-TEC - 2012
-
№АртикулНазвание
-
1420890222 Crankcase Ass'y. Includes 1 to 10Crankcase Ass'y. Includes 1 to 10
-
2420640836 Hex. Collar Screw M8 X 75Hex. Collar Screw M8 X 75
-
3420640431 Hex. Collar Screw M8 X 45Hex. Collar Screw M8 X 45
-
4420640311 Hex. Collar Screw M6 X 45Hex. Collar Screw M6 X 45
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
7420632010 Center Pin 8 X 12Center Pin 8 X 12
-
8420660890 Cable GrommetCable Grommet
-
9420960770 CapCap
-
10420232100 Ball BearingBall Bearing
-
11420956070 Check ValveCheck Valve
-
12420837421 Water Pump/Oil Pump Ass'y. Includes 12 to 18Water Pump/Oil Pump Ass'y. Includes 12 to 18
-
14420230195 Oil SealOil Seal
-
15420232100 Ball BearingBall Bearing
-
16420650370 Rotary SealRotary Seal
-
17420950890 O-RingO-Ring
-
19420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
20420227945 WasherWasher
-
21420222505 Water ImpellerWater Impeller
-
22420931810 GasketGasket
-
23420922630 Water Pump HousingWater Pump Housing
-
24420240031 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
25420931566 GasketGasket
-
26420810825 Cover PlateCover Plate
-
27420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
28420812420 CoverCover
-
29420941436 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
30420960925 Rubber StopperRubber Stopper
-
31420059352 Short Block 593 HO E-TECShort Block 593 HO E-TEC
