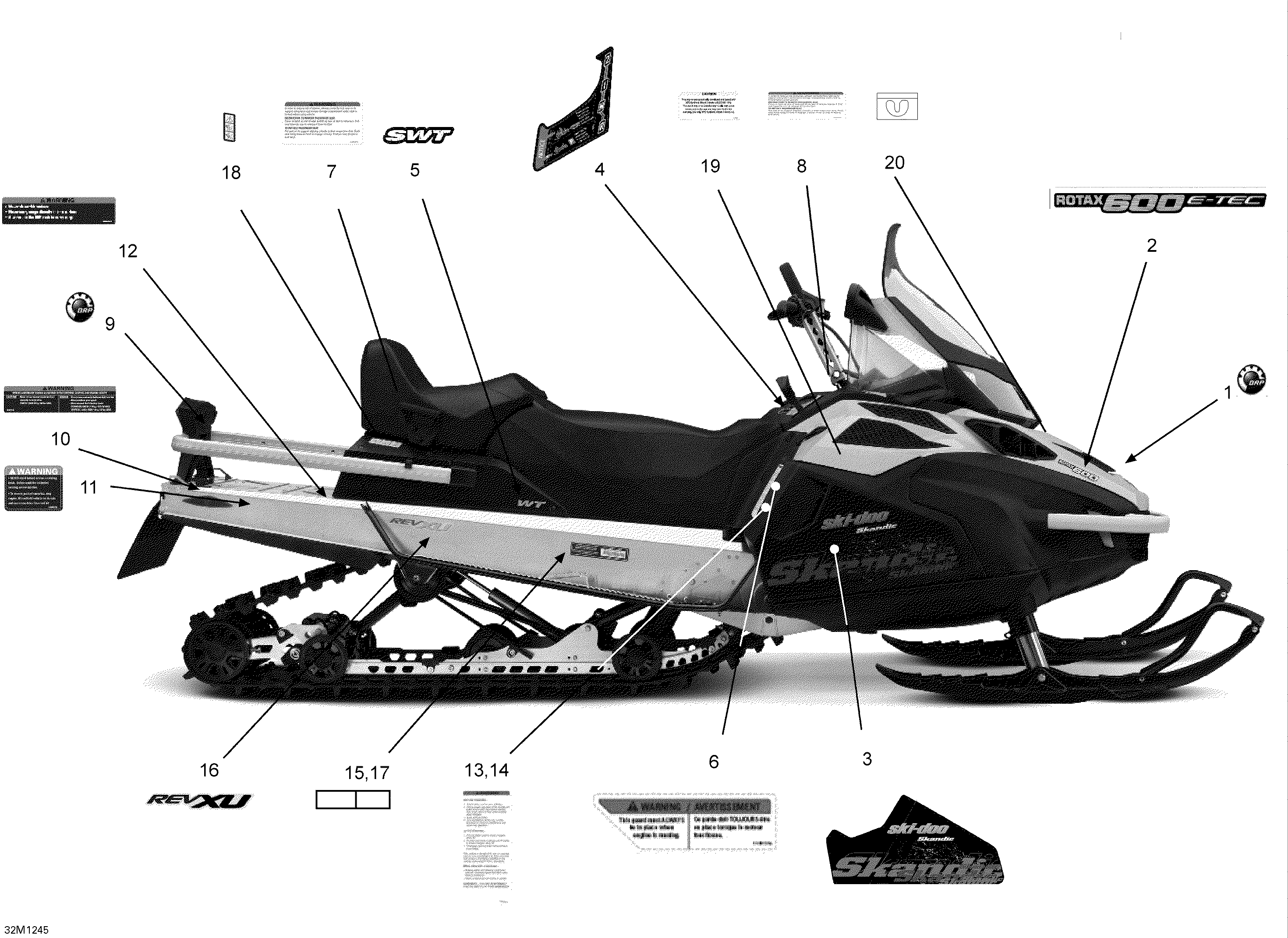

09- Decals для BRP Ski-Doo Skandic SWT 600 H.O. E-TEC - 2012
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004344 RH. Side DecalRH. Side Decal
-
3516004343 LH. Side DecalLH. Side Decal
-
4516004305 Instruction Label, TransmissionInstruction Label, Transmission
-
5516005048 REV SWT DecalREV SWT Decal
-
6516003926 Warning DecalWarning Decal
-
7516003873 Warning DecalWarning Decal
-
8516004649 Security label, Belt GuardSecurity label, Belt Guard
-
9219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
10516004960 Rear Security Decal, EnglishRear Security Decal, English
-
11516004650 Warning DecalWarning Decal
-
12516004961 Security DecalSecurity Decal
-
13516004652 Warning DecalWarning Decal
-
14516004653 Warning DecalWarning Decal
-
16516004201 Decal, REV XUDecal, REV XU
-
18516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
19516003940 Warning Decal, InjectorsWarning Decal, Injectors
-
20516004259 Caution Decal, Belt PositionCaution Decal, Belt Position
