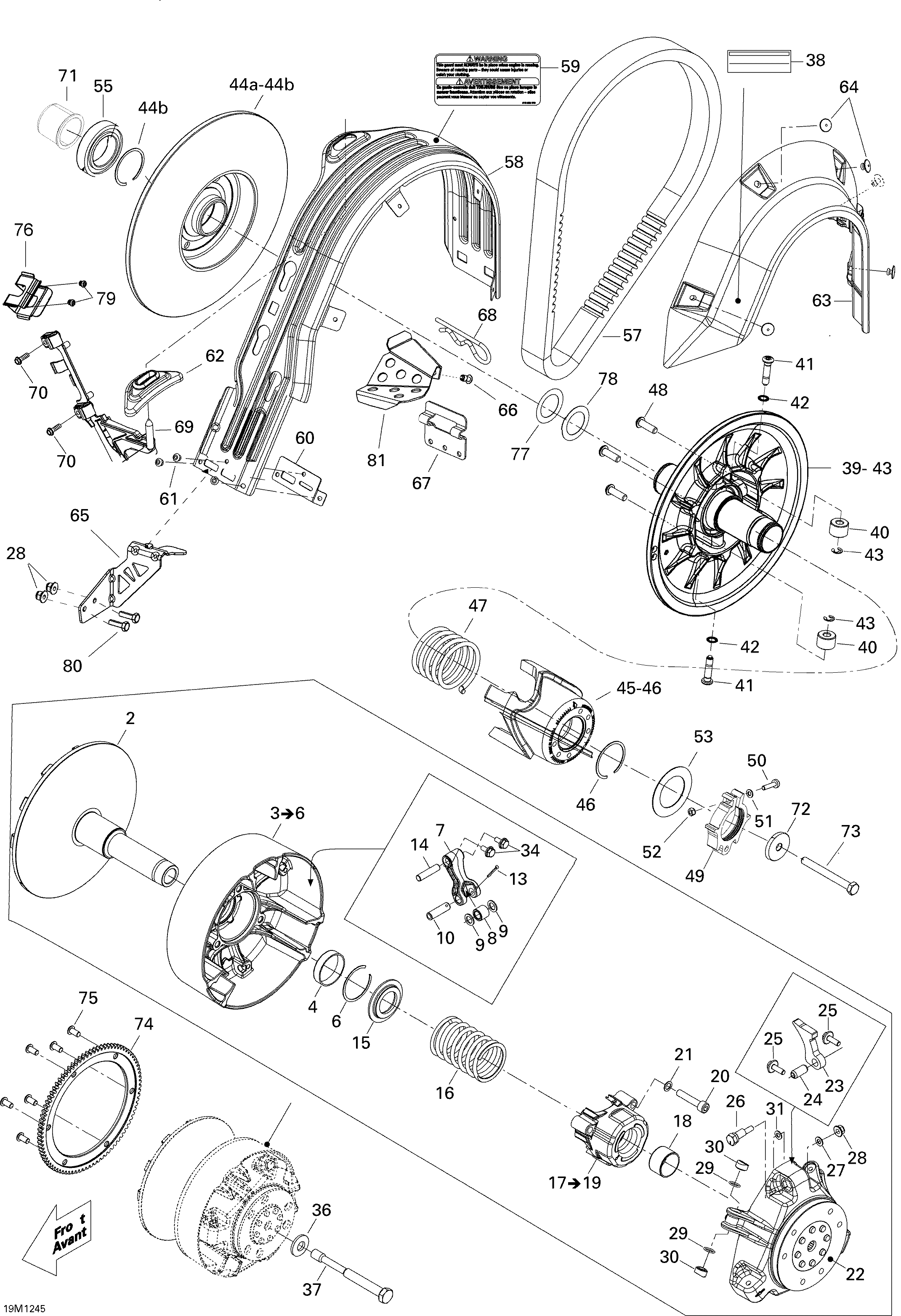

05- Pulley System для BRP Ski-Doo Skandic SWT 600 H.O. E-TEC - 2012
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
4417223086 BushingBushing
-
6293370037 CirclipCirclip
-
7417222671 LeverLever
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417223164 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414993000 Tra SpringTra Spring
-
17417007500 Spring Cover Ass'ySpring Cover Ass'y
-
18417009204 BushingBushing
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417223441 Governor Cup Ass'yGovernor Cup Ass'y
-
23417222444 Ramp 600Ramp 600
-
24250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
25250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
26417223460 Calibration ScrewCalibration Screw
-
27234061410 Flat Washer 6 mmFlat Washer 6 mm
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417005600 WasherWasher
-
34250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
36250200006 Spring Washer 14 mmSpring Washer 14 mm
-
37417120000 Drive Pulley BoltDrive Pulley Bolt
-
38516004303 DecalDecal
-
39417127229 Fixed Flange Ass'y. Includes 38 to 43Fixed Flange Ass'y. Includes 38 to 43
-
40417127016 RollerRoller
-
41417127259 Pivot StudPivot Stud
-
42250200009 Lock Washer 8 mmLock Washer 8 mm
-
43414753500 CirclipCirclip
-
44a417127231 Slider Flange Ass'y. Includes 44 to 45Slider Flange Ass'y. Includes 44 to 45
-
44b293370049 CirclipCirclip
-
45417127205 Cam Ass'y. Includes 46 to 47Cam Ass'y. Includes 46 to 47
-
46293370049 CirclipCirclip
-
47417127243 Spring, WhiteSpring, White
-
48250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
49415129604 Calibration Ass'yCalibration Ass'y
-
50205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
51234051410 Flat Washer M5Flat Washer M5
-
52232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
53417127155 WasherWasher
-
55504152574 Ball BearingBall Bearing
-
57417300383 Drive BeltDrive Belt
-
58417300382 Belt GuardBelt Guard
-
59516004649 Security label, Belt GuardSecurity label, Belt Guard
-
60417300380 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GuideGuide
-
63417300356 Side ProtectorSide Protector
-
64293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
65417300398 Belt Guard BracketBelt Guard Bracket
-
66293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
67417300363 Belt Guard BracketBelt Guard Bracket
-
68114045200 Hair PinHair Pin
-
69417300396 Belt Guard BracketBelt Guard Bracket
-
70241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
71504153054 Protective RubberProtective Rubber
-
72517302322 Strength WasherStrength Washer
-
73207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
74417223042 Ring GearRing Gear
-
75250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
76517281905 BracketBracket
-
77417300265 SpacerSpacer
-
78504112000 ShimShim
-
79390909200 Avex RivetAvex Rivet
-
80207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
81518325626 Brake Hose CoverBrake Hose Cover
