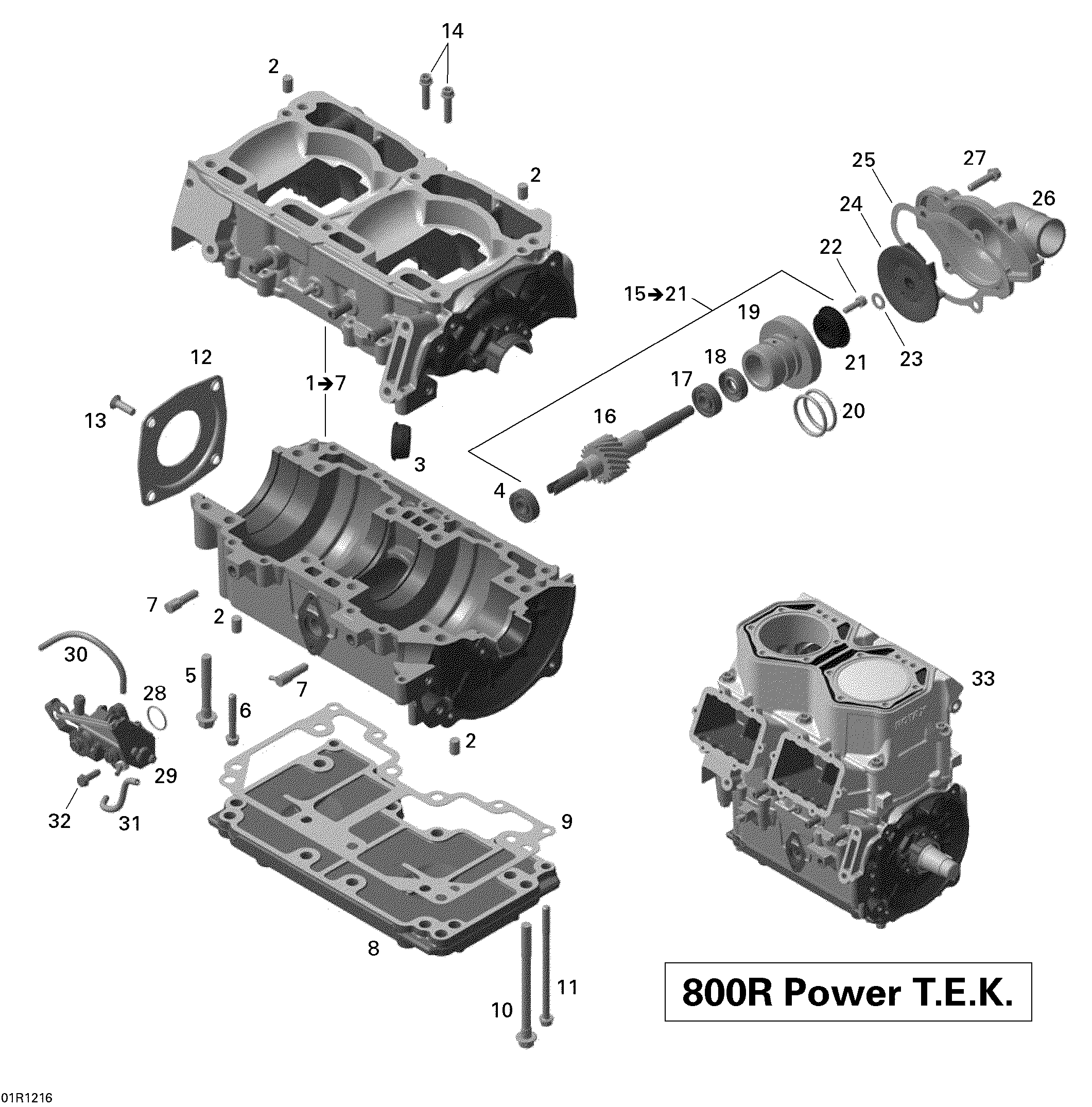

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Summit SPORT 800R P-TEK - 2012
-
№АртикулНазвание
-
1420890748 Crankcase Ass'y. Includes 1 to 7Crankcase Ass'y. Includes 1 to 7
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420860965 Cable GrommetCable Grommet
-
4420232100 Ball BearingBall Bearing
-
5420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
6420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
-
7420956510 Check ValveCheck Valve
-
8420812683 Engine SupportEngine Support
-
9420430070 Gasket Engine SupportGasket Engine Support
-
10420941517 Hex. Screw M8 X 105Hex. Screw M8 X 105
-
11420241601 Socket Head Screw M6 X 100Socket Head Screw M6 X 100
-
12420812420 CoverCover
-
13420941436 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
14420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
15420837676 Water Pump/Oil Pump Shaft Ass'y. Includes 15 to 21Water Pump/Oil Pump Shaft Ass'y. Includes 15 to 21
-
17420232100 Ball BearingBall Bearing
-
18420230196 Oil SealOil Seal
-
20420950890 O-RingO-Ring
-
21420650370 Oil SealOil Seal
-
22420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
23420944033 Washer 8.4Washer 8.4
-
24420922805 Water ImpellerWater Impeller
-
25420430050 GasketGasket
-
26420822280 Water Pump HousingWater Pump Housing
-
27420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
28293300041 O-RingO-Ring
-
29420888774 Oil Pump Ass'yOil Pump Ass'y
-
30414413800 Oil HoseOil Hose
-
31414413800 Oil HoseOil Hose
-
32420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
33420079709 Short Block 797 XPShort Block 797 XP
