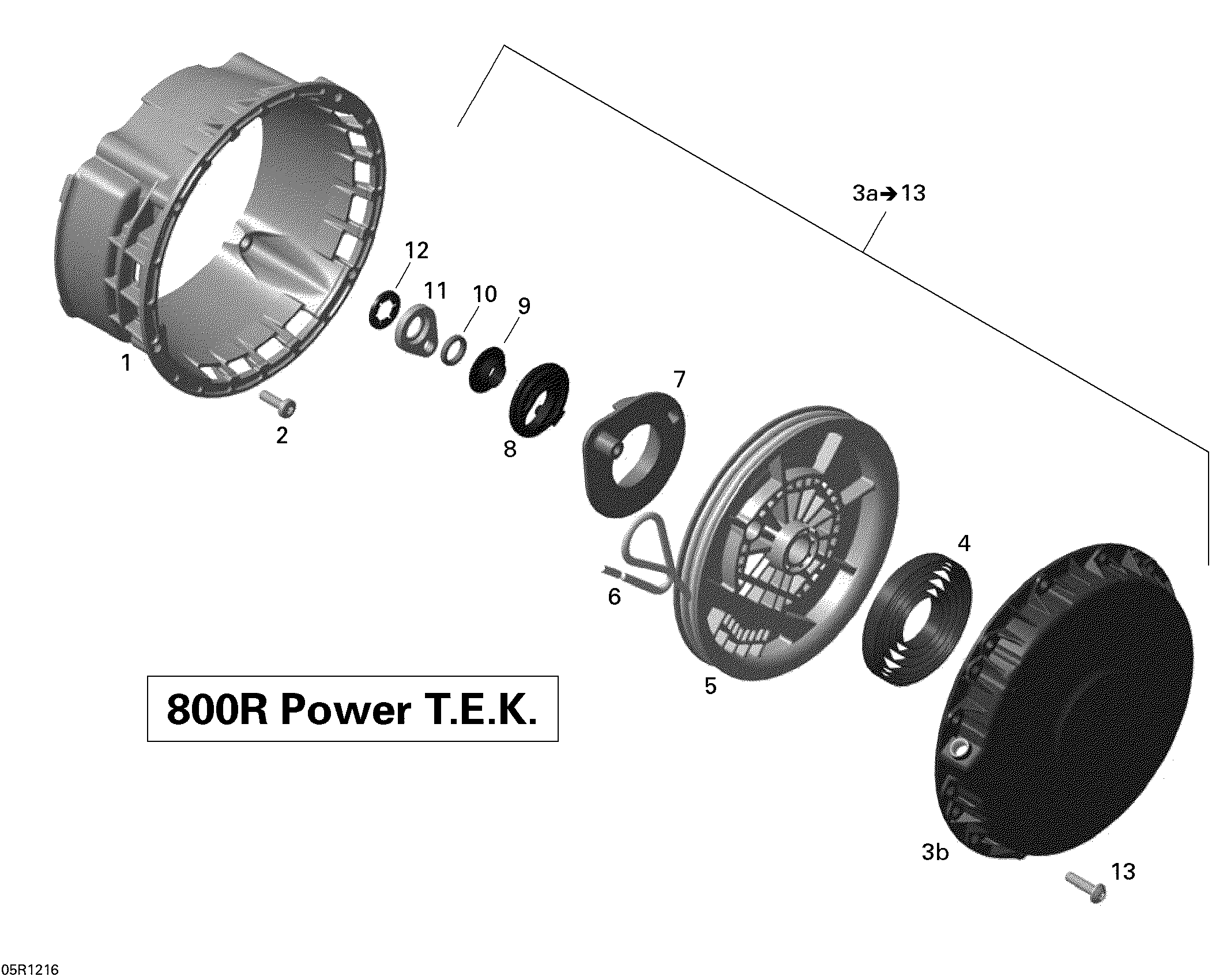

04- Rewind Starter для BRP Ski-Doo Summit SPORT 800R P-TEK - 2012
-
№АртикулНазвание
-
1420812941 Flange ConnectorFlange Connector
-
2420941256 Hex. Collar ScrewHex. Collar Screw
-
3a420892615 Rewind Starter Ass'y. Includes 3a to 13Rewind Starter Ass'y. Includes 3a to 13
-
3b420910253 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter Rope, MeterStarter Rope, Meter
-
7420852292 PawlPawl
-
8420852308 Pawl LockPawl Lock
-
9420847926 Stage SleeveStage Sleeve
-
10420250407 O-RingO-Ring
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420940431 ScrewScrew
