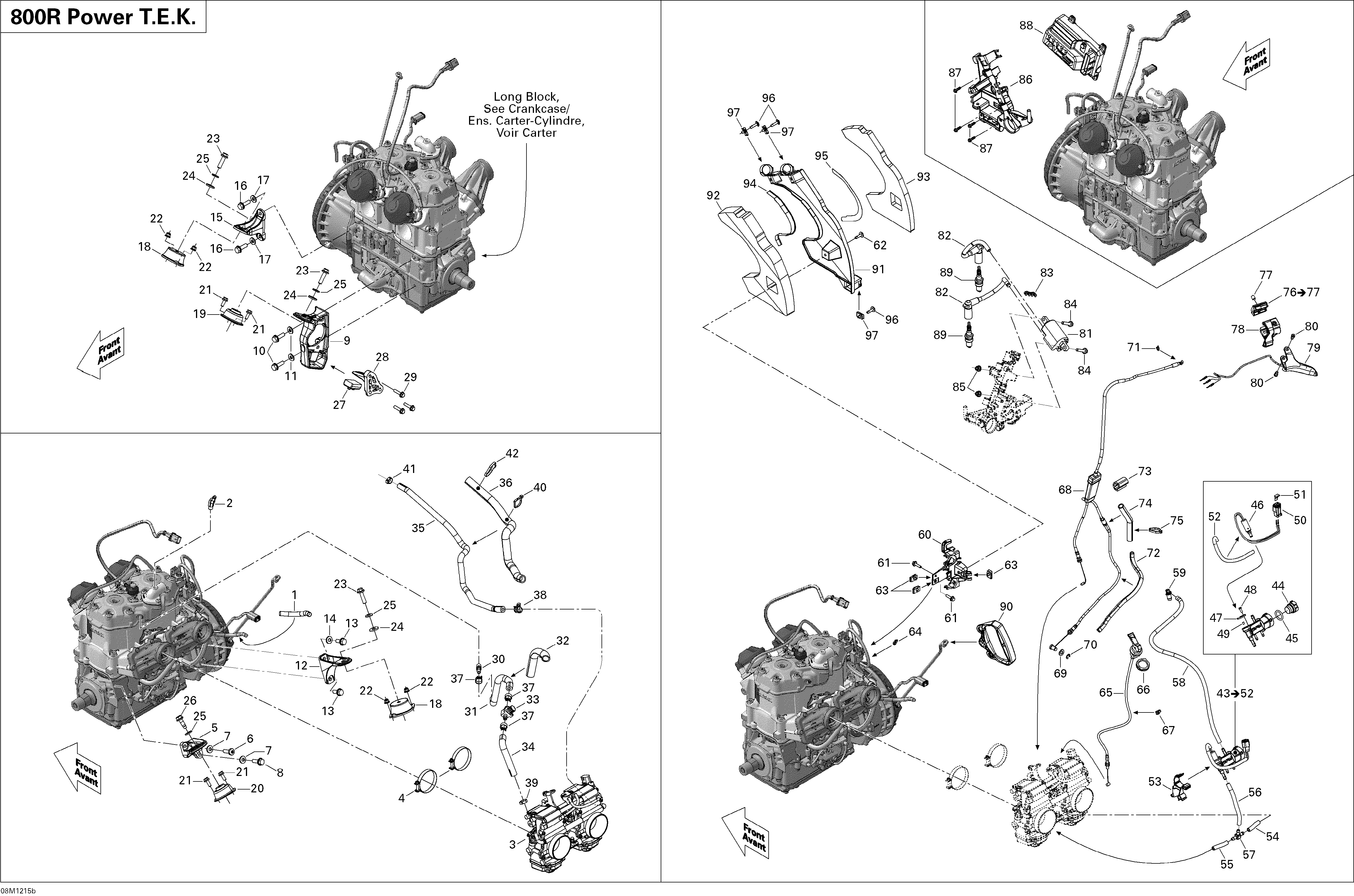

01- Engine 800RPTEK для BRP Ski-Doo Summit SPORT 800R P-TEK - 2012
-
№АртикулНазвание
-
1415079900 Tubing 10 mmTubing 10 mm
-
2293700045 Elbow Fitting 90°Elbow Fitting 90°
-
3403138805 Carburator Kit, TM40-B397Carburator Kit, TM40-B397
-
4512059835 Gemi ClampGemi Clamp
-
5512060478 Rear Support, PTORear Support, PTO
-
6250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9512060701 Front Support, PTOFront Support, PTO
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12512060559 Rear Support, MAGRear Support, MAG
-
13207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060469 Front Support, MAGFront Support, MAG
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060729 Rubber MountRubber Mount
-
19512060387 Rubber MountRubber Mount
-
20512060448 Rubber MountRubber Mount
-
21207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
24503183200 Washer, YellowWasher, Yellow
-
25234281474 Conical Spring Washer M8Conical Spring Washer M8
-
26250000570 Hex. Screw M8Hex. Screw M8
-
27512060766 StopperStopper
-
28512060576 Stopper SupportStopper Support
-
29207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
30512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
31512060357 Hose Formed Engine OutletHose Formed Engine Outlet
-
32415080000 Tubing 16 mmTubing 16 mm
-
33512059324 Valve 5/16''Valve 5/16''
-
34512060353 Hose FormedHose Formed
-
35512060347 Hose FormedHose Formed
-
36415080000 Tubing 16 mmTubing 16 mm
-
37414655700 Spring ClampSpring Clamp
-
38293650214 Norma Spring ClampNorma Spring Clamp
-
39293650125 Oetiker ClampOetiker Clamp
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293650046 Oetiker ClampOetiker Clamp
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43512060002 Pressure Manifold Ass'y. Includes 43 to 52Pressure Manifold Ass'y. Includes 43 to 52
-
44270600009 CapCap
-
45293300042 O-RingO-Ring
-
46515175701 Solenoid ValveSolenoid Valve
-
47415061600 Solenoid LockSolenoid Lock
-
48241140060 Screw K40 X 10Screw K40 X 10
-
49404161825 Starter JetStarter Jet
-
50515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
51515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
52515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
53512060229 DPM SupportDPM Support
-
54415080200 Hose, PolyurethaneHose, Polyurethane
-
55415080200 Hose, PolyurethaneHose, Polyurethane
-
56415080200 Hose, PolyurethaneHose, Polyurethane
-
57414729300 T-FittingT-Fitting
-
58415080200 Hose, PolyurethaneHose, Polyurethane
-
59414580700 Male ConnectorMale Connector
-
60512060298 Solenoid SupportSolenoid Support
-
61207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
62250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
63250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
64293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
65512060672 Choke CableChoke Cable
-
66512060671 Plastic NutPlastic Nut
-
67414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
68512060547 Throttle CableThrottle Cable
-
69234081100 Flat Washer 8 mmFlat Washer 8 mm
-
70414753500 CirclipCirclip
-
71414274500 CirclipCirclip
-
72515175442 Tubing 6 mmTubing 6 mm
-
73512060313 ProtectorProtector
-
74415079900 Tubing 10 mmTubing 10 mm
-
75414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
76512060198 Upper Housing Ass'y. Includes 76 to 77Upper Housing Ass'y. Includes 76 to 77
-
77414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
78512060430 Lower HousingLower Housing
-
79512060616 Throttle HandleThrottle Handle
-
80732601143 Flanged ScrewFlanged Screw
-
81512059968 Ignition CoilIgnition Coil
-
82512060291 CableCable
-
83410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
84207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
85233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
86512060745 Coils SupportCoils Support
-
87241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
88512060684 Calibrated Module, 800R PowerT.E.K.Calibrated Module, 800R PowerT.E.K.
-
89415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
90512060136 Starter GripStarter Grip
-
91512060338 Noise ShieldNoise Shield
-
92512060341 Inner Noise FoamInner Noise Foam
-
93512060342 Outer Noise FoamOuter Noise Foam
-
94512060574 Heat ShieldHeat Shield
-
95512060575 Heat ShieldHeat Shield
-
96250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
97250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
