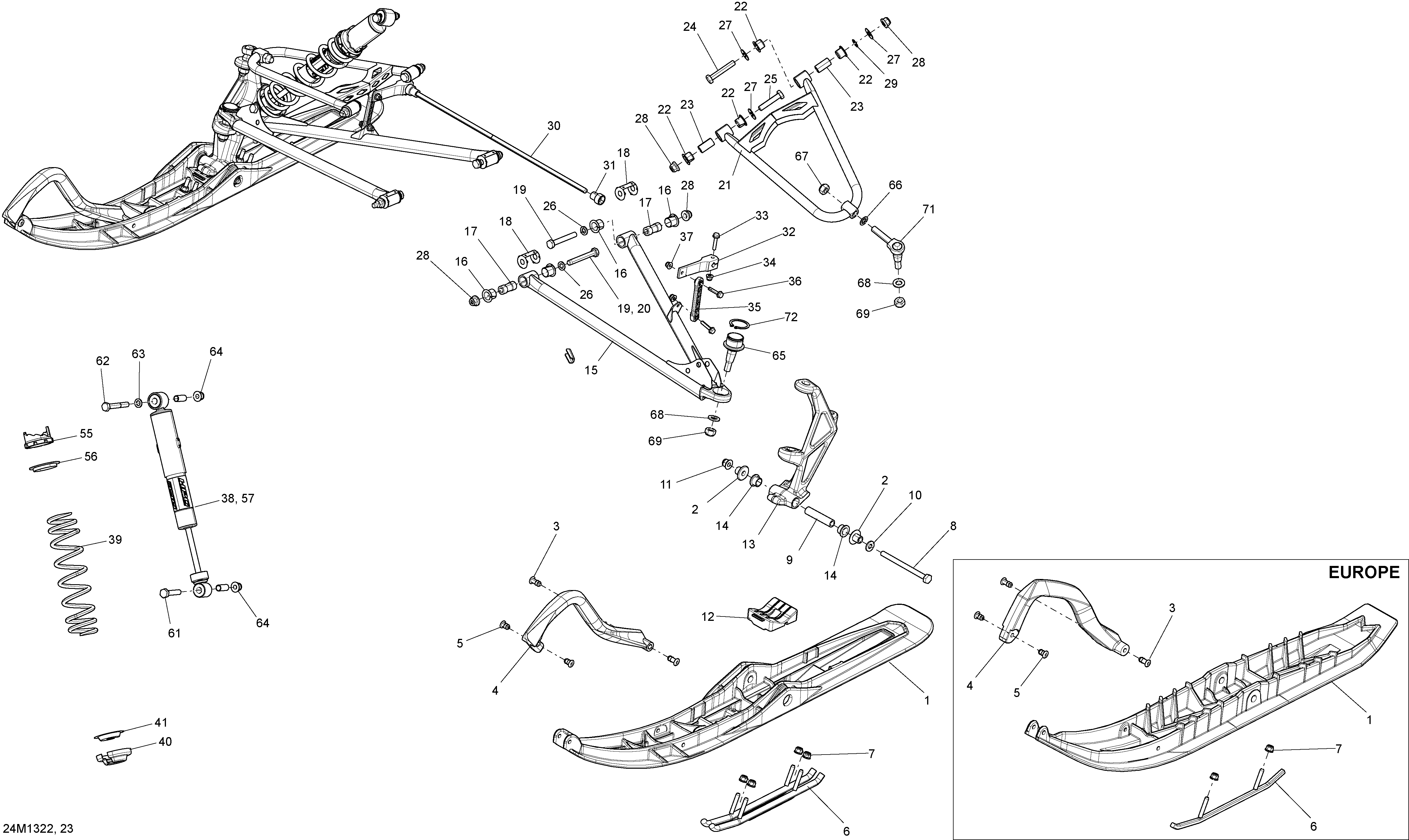

07- Front Suspension And Ski для BRP Ski-Doo GRAND TOURING LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
1505072548 Pilot Ski Ass'y. GTX North AmericaPilot Ski Ass'y. GTX North America
-
1415129567 DS Ski, Black. GTX EuropeDS Ski, Black. GTX Europe
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, Black. GTX North AmericaHandle, Black. GTX North America
-
4505072976 Handle, Black. GTX EuropeHandle, Black. GTX Europe
-
5505072133 RetainerRetainer
-
6860200031 Carbide Runners Kit. GTX North AmericaCarbide Runners Kit. GTX North America
-
6860200141 Carbide Runner Kit. GTX EuropeCarbide Runner Kit. GTX Europe
-
7233281414 Hex. Flanged Elastic Nut M8. GTX North AmericaHex. Flanged Elastic Nut M8. GTX North America
-
7233281414 Hex. Flanged Elastic Nut M8. GTX EuropeHex. Flanged Elastic Nut M8. GTX Europe
-
8230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
9506133300 SpacerSpacer
-
10503192496 WasherWasher
-
11233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073041 LH Modified Ski Leg. LELH Modified Ski Leg. LE
-
13505073042 RH Modified Ski Leg. LERH Modified Ski Leg. LE
-
13505073173 LH Ski Leg. SELH Ski Leg. SE
-
13505073174 RH Ski Leg. SERH Ski Leg. SE
-
14505072690 Leg CushionLeg Cushion
-
15505072495 RH Lower Arm. SE White/White ModelsRH Lower Arm. SE White/White Models
-
15505072496 LH Lower Arm. SE White/White ModelsLH Lower Arm. SE White/White Models
-
15505072522 RH Lower Arm. SE Black/Black ModelsRH Lower Arm. SE Black/Black Models
-
15505072523 LH Lower Arm. SE Black/Black ModelsLH Lower Arm. SE Black/Black Models
-
15505072522 RH Lower Arm. LERH Lower Arm. LE
-
15505072523 LH Lower Arm. LELH Lower Arm. LE
-
16505072208 BushingBushing
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70. XRScrew Hex. M10 X 70. XR
-
20250000218 Hex. Screw M10 X 75. XRHex. Screw M10 X 75. XR
-
21505072374 Upper Arm. SE White/White ModelsUpper Arm. SE White/White Models
-
21505072389 Upper Arm. LEUpper Arm. LE
-
21505072389 Upper Arm. SE Black/Black ModelsUpper Arm. SE Black/Black Models
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072448 O-RingO-Ring
-
30505072444 Stabilisator. GTX 1000Stabilisator. GTX 1000
-
31505072445 Bushing. GTX 1000Bushing. GTX 1000
-
32505072446 Stabilisator Lever. GTX 1000Stabilisator Lever. GTX 1000
-
33207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
34233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
37233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38505073139 Front ShockFront Shock
-
39505072518 Painted Spring. SE Black/Black ModelsPainted Spring. SE Black/Black Models
-
39505072518 Painted Spring. LEPainted Spring. LE
-
39505073255 Painted Spring. SE White/White ModelsPainted Spring. SE White/White Models
-
40706200881 Spring StopperSpring Stopper
-
41706200785 CapCap
-
55505070150 Adjustment CamAdjustment Cam
-
56503187500 Spring GuideSpring Guide
-
57516005533 Shock Decal, HPGShock Decal, HPG
-
61207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
62207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
63503189564 WasherWasher
-
64233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
65505072682 Lower Ball JointLower Ball Joint
-
66503189276 Washer. XRWasher. XR
-
67250100089 Hex. Elastic Hex. Nut M12. XRHex. Elastic Hex. Nut M12. XR
-
68503192491 WasherWasher
-
69232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
71505072257 Upper Ball Joint. XRUpper Ball Joint. XR
-
72293370035 CirclipCirclip
