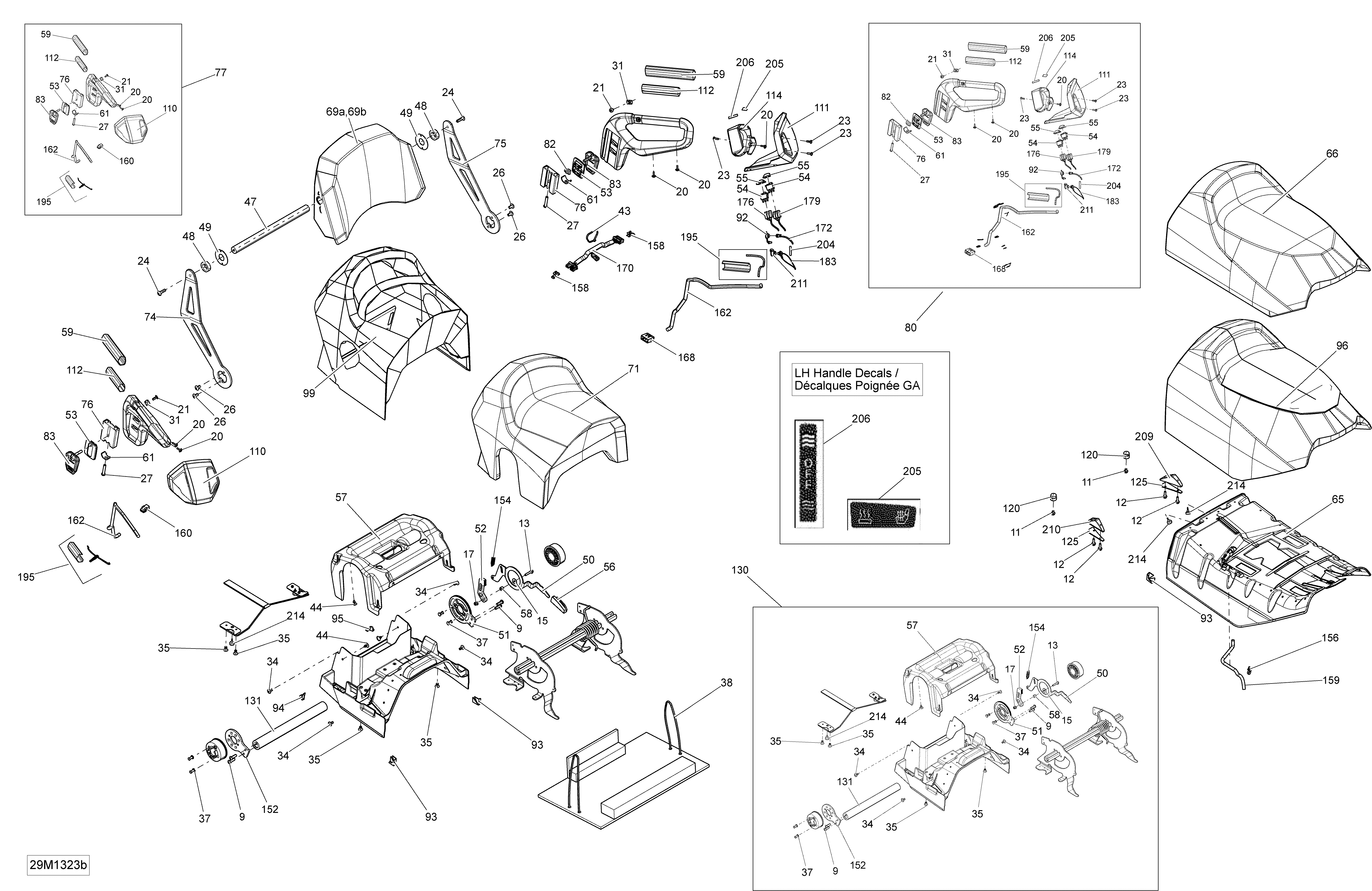

09- Seat SE для BRP Ski-Doo GRAND TOURING LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
9205982586 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
11207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
12207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
13207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
15224061201 Flat WasherFlat Washer
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
21250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
23250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
24250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
26250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
27250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
31293100003 Nut M6Nut M6
-
34293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293150129 Steel RivetSteel Rivet
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44414644300 DartDart
-
47510004377 Upper Backrest AxleUpper Backrest Axle
-
48510004378 Rubber ShimRubber Shim
-
49510004379 WasherWasher
-
50510004387 Handle, Black. GTX SE, WhiteHandle, Black. GTX SE, White
-
50510004385 Handle, Black. GTX SE, BlackHandle, Black. GTX SE, Black
-
51510004391 SprocketSprocket
-
52510004392 Adjustment PivotAdjustment Pivot
-
53510004405 MouldingMoulding
-
54510004413 Rocker SwitchRocker Switch
-
55510004414 Switch ProtectorSwitch Protector
-
56510004419 GripGrip
-
57510004423 Foam SupportFoam Support
-
58510004425 BushingBushing
-
59510004449 Handle GripHandle Grip
-
61510004565 Handle ClampHandle Clamp
-
65510004775 Front Seat BaseFront Seat Base
-
66510004777 Front Seat FoamFront Seat Foam
-
69a510004782 Backrest FoamBackrest Foam
-
69b510005353 Backrest Cover. GTX SE, BlackBackrest Cover. GTX SE, Black
-
69b510005690 Backrest Cover. GTX SE, WhiteBackrest Cover. GTX SE, White
-
71510004791 Rear Seat FoamRear Seat Foam
-
74510005464 RH ArmRH Arm
-
75510005465 LH ArmLH Arm
-
76510004798 Handle LinkHandle Link
-
77510004800 RH Handle Ass'yRH Handle Ass'y
-
80510005697 LH Handle Ass'yLH Handle Ass'y
-
82510004804 Stopper BlockStopper Block
-
83510004806 Lever Lock Ass'yLever Lock Ass'y
-
92510004950 CapCap
-
93510004971 Seat Corner. GTX SE, BlackSeat Corner. GTX SE, Black
-
93510004971 Seat Corner. GTX SE, WhiteSeat Corner. GTX SE, White
-
93510004963 Seat Corner. GTX SE, WhiteSeat Corner. GTX SE, White
-
93510004976 Seat Corner. GTX SE, BlackSeat Corner. GTX SE, Black
-
94510004964 RH Rear Corner SeatRH Rear Corner Seat
-
95510004965 LH Rear Corner SeatLH Rear Corner Seat
-
96510005307 Front Seat Cover. GTX SE, BlackFront Seat Cover. GTX SE, Black
-
96510005684 Front Seat Cover. GTX SE, WhiteFront Seat Cover. GTX SE, White
-
99510005689 Rear Seat Cover. GTX SE, WhiteRear Seat Cover. GTX SE, White
-
99510005308 Rear Seat Cover. GTX SE, BlackRear Seat Cover. GTX SE, Black
-
110510005009 RH Air DeflectorRH Air Deflector
-
111510005010 LH Air DeflectorLH Air Deflector
-
112510005011 Handle ReinforcementHandle Reinforcement
-
114510005037 Housing SwitchHousing Switch
-
120510005095 Seat StudSeat Stud
-
125510005216 SpacerSpacer
-
130510005688 Seat Base Ass'ySeat Base Ass'y
-
131510005496 Link TubeLink Tube
-
152510005568 Link PlateLink Plate
-
154514053643 SpringSpring
-
156515175220 Tie RapTie Rap
-
158515175283 Housing SupportHousing Support
-
159515175442 Tubing 6 mmTubing 6 mm
-
160515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
162515175506 TubingTubing
-
168515176033 Male ConnectorMale Connector
-
170515176649 Seat HarnessSeat Harness
-
172515177018 Heated Liner HarnessHeated Liner Harness
-
176515177409 Passager Heated Seat HarnessPassager Heated Seat Harness
-
179515176697 Handle HarnessHandle Harness
-
183515176698 Visor Connector HarnessVisor Connector Harness
-
195515176999 Heated ElementHeated Element
-
204516003612 Visor and Liner DecalVisor and Liner Decal
-
205516003613 Handle and Seat DecalHandle and Seat Decal
-
206516003809 Intensity Switch DecalIntensity Switch Decal
-
209518325709 LH Seat AnchorLH Seat Anchor
-
210518325710 RH Seat AnchorRH Seat Anchor
-
211572103300 CapCap
-
214708000759 Rubber StopperRubber Stopper
