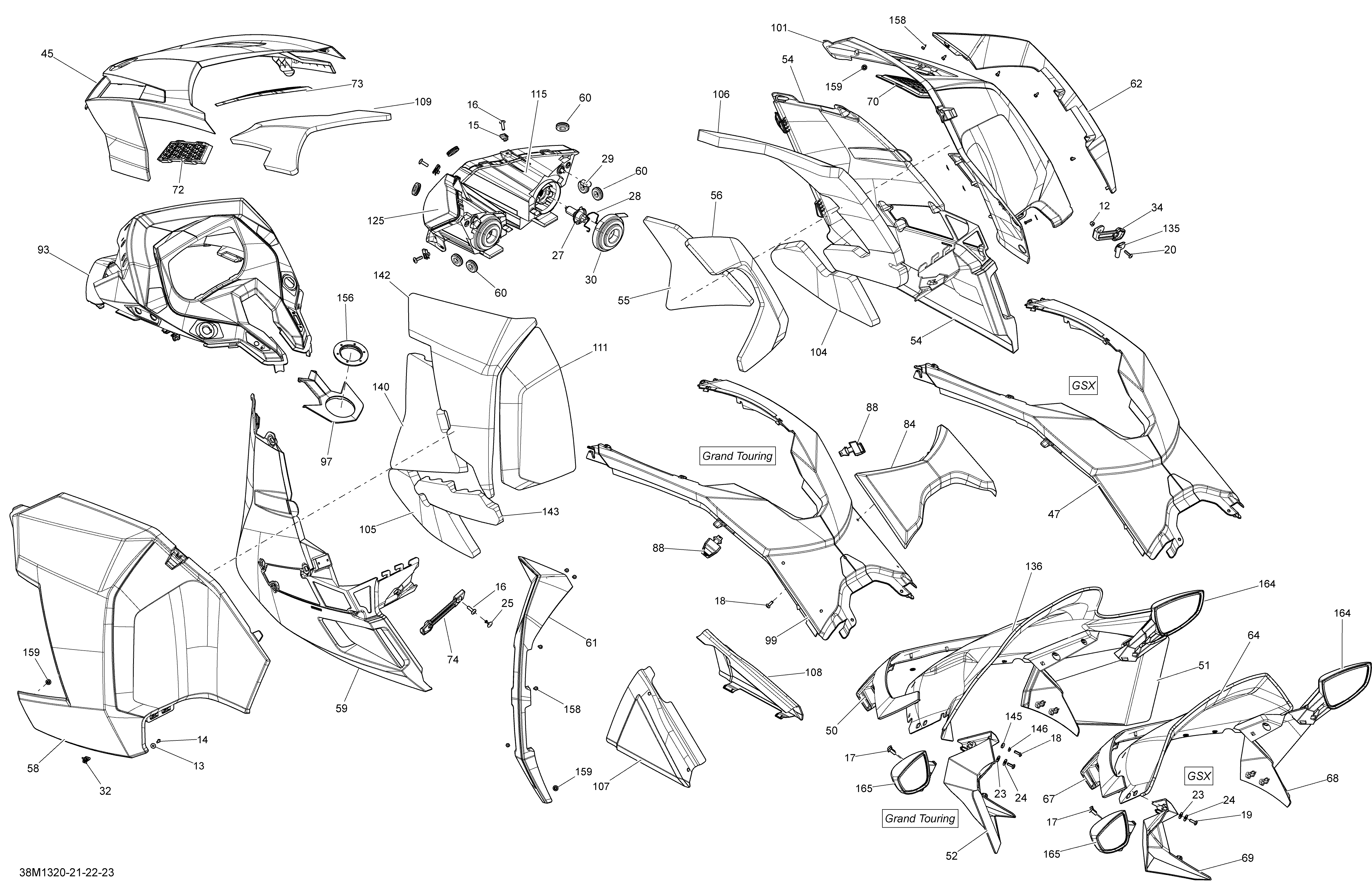

09- Hood, Windshield And Console для BRP Ski-Doo GRAND TOURING LE & SE 1200 XR - 2013
-
№АртикулНазвание
-
12233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
13234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
14241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
15250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
18250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
20250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
23250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
24250200025 Washer M5Washer M5
-
25293150108 Pop Rivet 3/16''. SE ModelPop Rivet 3/16''. SE Model
-
27515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
28515176493 Bulb HolderBulb Holder
-
29515176498 CapCap
-
30515176499 CoverCover
-
32517302785 ClipClip
-
34517303612 RH Panel LatchRH Panel Latch
-
45517303739 Hood, BlackHood, Black
-
45517304374 Hood, Bright WhiteHood, Bright White
-
45517305158 Hood, Hybrid WhiteHood, Hybrid White
-
45517305159 Hood, MagnesiumHood, Magnesium
-
47517303741 Console, BlackConsole, Black
-
47517304381 Console, Bright WhiteConsole, Bright White
-
47517305163 Console Ass'y, MagnesiumConsole Ass'y, Magnesium
-
47517305259 Console Ass'y, Hybrid WhiteConsole Ass'y, Hybrid White
-
50517303744 Extra Hight Windshield Support. Grand Touring ModelExtra Hight Windshield Support. Grand Touring Model
-
51517303745 RH Console Air Deflector. Grand Touring ModelRH Console Air Deflector. Grand Touring Model
-
52517303746 LH Console Air Deflector. Grand Touring ModelLH Console Air Deflector. Grand Touring Model
-
54517304373 RH Pannel MouldingRH Pannel Moulding
-
55517304894 Central Foam Panel RHCentral Foam Panel RH
-
56517304895 Rear Panel Foam RHRear Panel Foam RH
-
58517304260 LH Pannel, Black. Grand Touring LE,SE ModelLH Pannel, Black. Grand Touring LE,SE Model
-
58517305327 LH Pannel, Hybrid WhiteLH Pannel, Hybrid White
-
58517305174 LH Panel, MagnesiumLH Panel, Magnesium
-
59517304362 LH Pannel MouldingLH Pannel Moulding
-
60517303756 GrommetGrommet
-
61517304196 LH Side Wind Deflector, Black. Grand Touring LE,SE ModelLH Side Wind Deflector, Black. Grand Touring LE,SE Model
-
61517305233 LH Air Deflector, Hybrid WhiteLH Air Deflector, Hybrid White
-
62517304197 RH Side Wind Deflector, Black. Grand Touring LE,SE ModelRH Side Wind Deflector, Black. Grand Touring LE,SE Model
-
62517305232 RH Air Deflector, Hybrid WhiteRH Air Deflector, Hybrid White
-
70517304909 Panel Grill. GSX SE, Grand Touring SEPanel Grill. GSX SE, Grand Touring SE
-
72517304242 LH Hood Grill. GSX SE, Grand Touring SELH Hood Grill. GSX SE, Grand Touring SE
-
73517304243 RH Hood Grill. GSX SE, Grand Touring SERH Hood Grill. GSX SE, Grand Touring SE
-
74517303808 LH Panel LatchLH Panel Latch
-
88517305000 Panel LatchPanel Latch
-
93517303971 Indicator Support. LE ModelIndicator Support. LE Model
-
93517303996 Indicator Support. SE ModelIndicator Support. SE Model
-
97517304027 Cap ConsoleCap Console
-
99517304541 Console Ass'y, Black. Grand Touring SEConsole Ass'y, Black. Grand Touring SE
-
101517304006 RH Pannel, Black. GSX, Grand Touring , LE, SERH Pannel, Black. GSX, Grand Touring , LE, SE
-
101517305328 RH Panel, Hybrid WhiteRH Panel, Hybrid White
-
101517305168 RH Panel, MagnesiumRH Panel, Magnesium
-
104517304905 RH Lower Panel FoamRH Lower Panel Foam
-
105517304901 LH Lower Panel FoamLH Lower Panel Foam
-
106517304908 RH Upper Panel FoamRH Upper Panel Foam
-
107517304123 LH Fuel Tank Moulding. Grand Touring Black ModelLH Fuel Tank Moulding. Grand Touring Black Model
-
107517305177 LH Fuel Tank Moulding. Grand Touring Hybrid White ModelLH Fuel Tank Moulding. Grand Touring Hybrid White Model
-
108517304124 RH Fuel Tank Moulding. Grand Touring Black ModelRH Fuel Tank Moulding. Grand Touring Black Model
-
108517305178 RH Fuel Tank Moulding. Grand Touring Hybrid White ModelRH Fuel Tank Moulding. Grand Touring Hybrid White Model
-
109517304893 Hood FoamHood Foam
-
111517304904 LH Rear Panel FoamLH Rear Panel Foam
-
115517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
125517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
135517304221 Latch SupportLatch Support
-
136517304268 Extra Hight Windshield (620). Grand Touring ModelExtra Hight Windshield (620). Grand Touring Model
-
140517304899 LH Central Panel FoamLH Central Panel Foam
-
142517304902 LH Upper Panel FoamLH Upper Panel Foam
-
143517304897 Central Foam Panel LHCentral Foam Panel LH
-
145517304281 Rubber Washer 5 mm. Grand Touring ModelRubber Washer 5 mm. Grand Touring Model
-
146517225900 Flat Washer. Grand Touring ModelFlat Washer. Grand Touring Model
-
156517304518 Console NutConsole Nut
-
158732601210 Hex. Flanged Screw #8 X 3/8. GSX SE, Grand Touring SEHex. Flanged Screw #8 X 3/8. GSX SE, Grand Touring SE
-
159732610072 Push NutPush Nut
-
164517305100 RH Mirror Ass'yRH Mirror Ass'y
-
165517305101 LH Mirror Ass'yLH Mirror Ass'y
