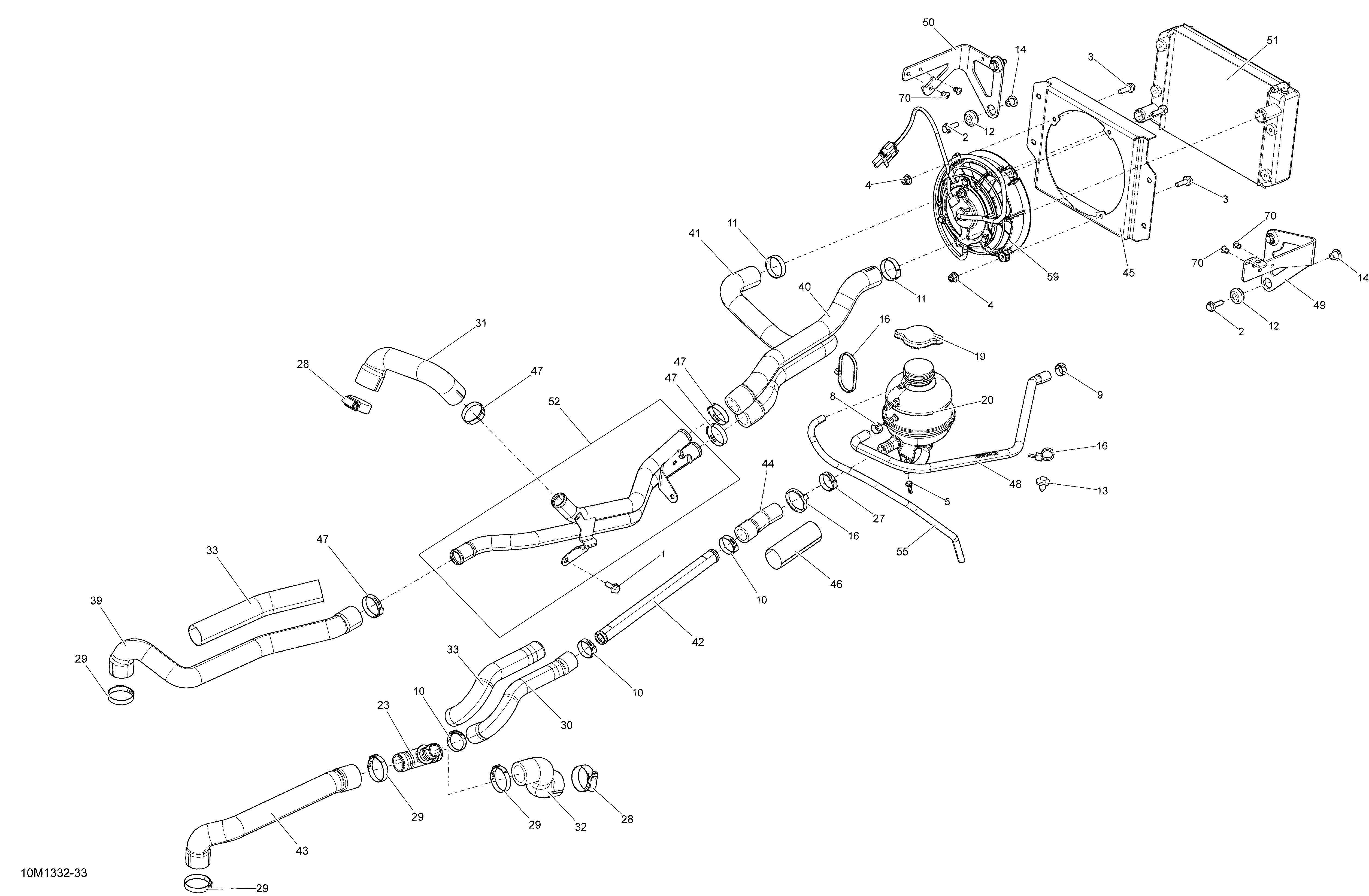

01- Cooling System для BRP Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch Grip. Gran Touring, ExpeditionHex. Flanged Screw M6 X 16, Scotch Grip. Gran Touring, Expedition
-
2207562044 Flanged Screw M6 X 20, Scotch Grip. Gran Touring, ExpeditionFlanged Screw M6 X 20, Scotch Grip. Gran Touring, Expedition
-
3207662044 Hex. Flanged Screw M6 X 20. Gran Touring, ExpeditionHex. Flanged Screw M6 X 20. Gran Touring, Expedition
-
4233261414 Hex. Flanged Elastic Nut M6. Gran Touring, ExpeditionHex. Flanged Elastic Nut M6. Gran Touring, Expedition
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
8293650025 Oetiker Gear Clamp. Gran Touring, ExpeditionOetiker Gear Clamp. Gran Touring, Expedition
-
9293650046 Oetiker Clamp. Gran Touring, ExpeditionOetiker Clamp. Gran Touring, Expedition
-
10293650099 Oetiker Gear ClampOetiker Gear Clamp
-
11293650165 Oetiker Clamp. Gran Touring, ExpeditionOetiker Clamp. Gran Touring, Expedition
-
12293720053 Grommet. Gran Touring, ExpeditionGrommet. Gran Touring, Expedition
-
13293730040 Mount Dart. Gran Touring, ExpeditionMount Dart. Gran Touring, Expedition
-
14293900100 Bushing. Gran Touring, ExpeditionBushing. Gran Touring, Expedition
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19509000180 Pressure CapPressure Cap
-
20509000368 Coolant Tank. Gran Touring, ExpeditionCoolant Tank. Gran Touring, Expedition
-
23509000372 T-FittingT-Fitting
-
27509000442 Oetiker Gear ClampOetiker Gear Clamp
-
28509000443 Aba Gear ClampAba Gear Clamp
-
29509000529 Oetiker Gear ClampOetiker Gear Clamp
-
30509000563 HoseHose
-
31509000564 Engine Outlet Hose. Gran Touring, ExpeditionEngine Outlet Hose. Gran Touring, Expedition
-
32509000565 Engine Inlet HoseEngine Inlet Hose
-
33509000513 Protector Tube 32 mmProtector Tube 32 mm
-
39509000634 Hose. Gran Touring, ExpeditionHose. Gran Touring, Expedition
-
40509000636 Radiator Hose. Gran Touring, ExpeditionRadiator Hose. Gran Touring, Expedition
-
41509000637 Radiator Hose. Gran Touring, ExpeditionRadiator Hose. Gran Touring, Expedition
-
42509000644 PipePipe
-
43509000697 Radiator Return HoseRadiator Return Hose
-
44509000698 HoseHose
-
45509000714 Fan Support. Gran Touring, ExpeditionFan Support. Gran Touring, Expedition
-
46509000730 Protector Tube 31.75 mm - 90 mmProtector Tube 31.75 mm - 90 mm
-
47509000735 Clamp. Gran Touring, ExpeditionClamp. Gran Touring, Expedition
-
48509000750 Breather Hose. Gran Touring, ExpeditionBreather Hose. Gran Touring, Expedition
-
49509000754 RH Radiator Support. Gran Touring, ExpeditionRH Radiator Support. Gran Touring, Expedition
-
50509000755 LH Radiator Support. Gran Touring, ExpeditionLH Radiator Support. Gran Touring, Expedition
-
51509000756 Radiator. Gran Touring, ExpeditionRadiator. Gran Touring, Expedition
-
52509000800 Water Pipe. Gran Touring, ExpeditionWater Pipe. Gran Touring, Expedition
-
55276000048 Hose 6 mmHose 6 mm
-
59709200230 Fan. Gran Touring, ExpeditionFan. Gran Touring, Expedition
-
70390909100 Avex Rivet. Gran Touring, ExpeditionAvex Rivet. Gran Touring, Expedition
