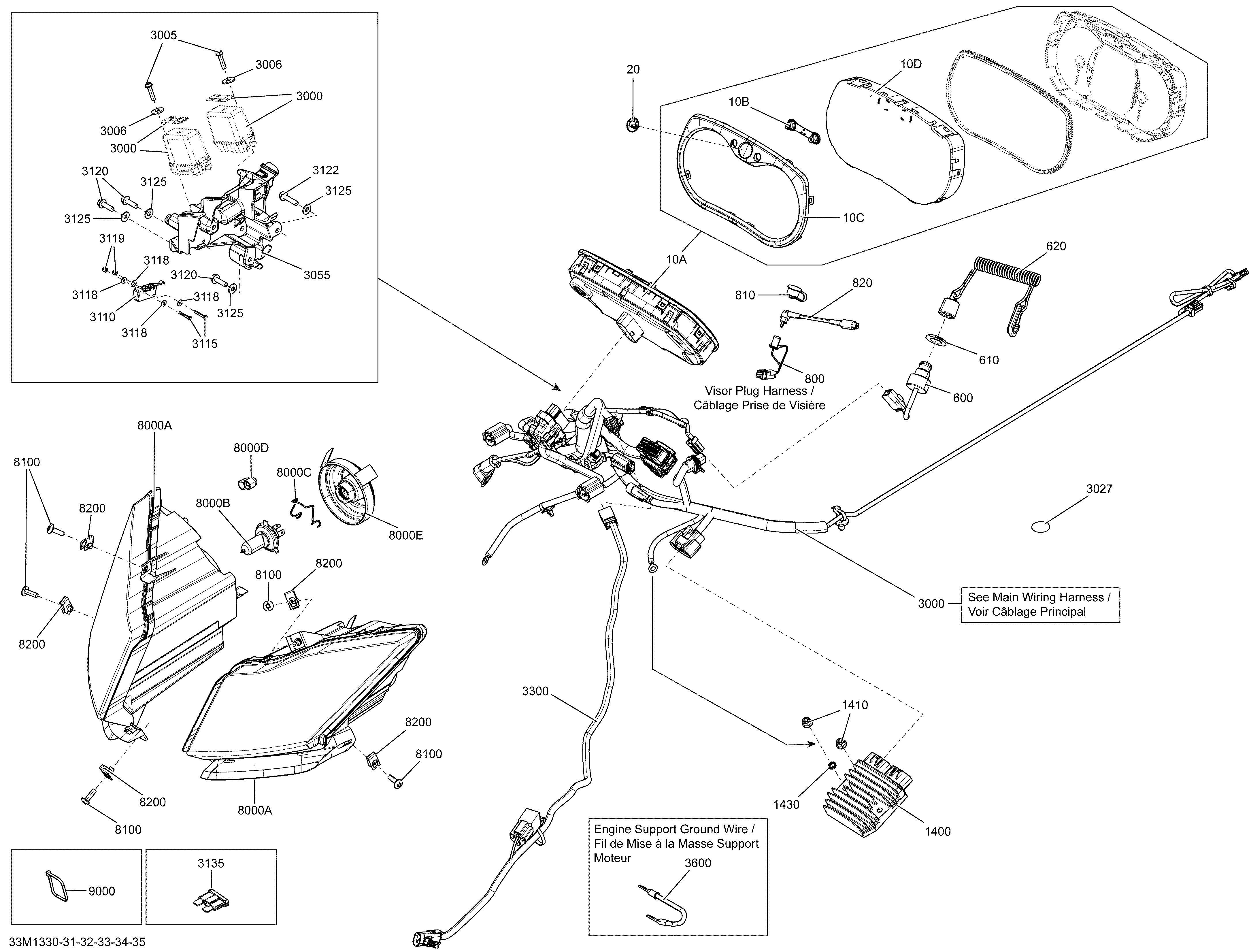

10- Electrical System для BRP Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
10a515177121 Speedometer. Includes 10A to 10DSpeedometer. Includes 10A to 10D
-
10b415129355 Speedometer ButtonSpeedometer Button
-
10c415129370 Gauge RingGauge Ring
-
10d415129349 LensLens
-
20219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
600515177249 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515177057 DESS CapDESS Cap
-
800515177187 Visor HarnessVisor Harness
-
810572103300 CapCap
-
820515175851 ExtensionExtension
-
1400515177325 RegulatorRegulator
-
1410233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1430234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
3000515177381 Main Wiring Harness Ass'yMain Wiring Harness Ass'y
-
3005211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
3006234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3027518325560 Adhesive PatchAdhesive Patch
-
3055515176866 PlatePlate
-
3110515176881 Switch Ass'ySwitch Ass'y
-
3115207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
3118234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
3119232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
3120210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3122210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
3125250200039 Flat WasherFlat Washer
-
3135710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
3135710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
3135710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
3135710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
3135710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
3300515177105 Fan HarnessFan Harness
-
3600515177014 Ground WireGround Wire
-
8000a517304194 RH Headlamp Ass'y. Includes 8000A to 8000ERH Headlamp Ass'y. Includes 8000A to 8000E
-
8000a517304195 LH Headlamp Ass'y. Includes 8000A to 8000ELH Headlamp Ass'y. Includes 8000A to 8000E
-
8000b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8000C515176493 Bulb HolderBulb Holder
-
8000D515176498 CapCap
-
8000E515176499 CoverCover
-
8100250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8200250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
