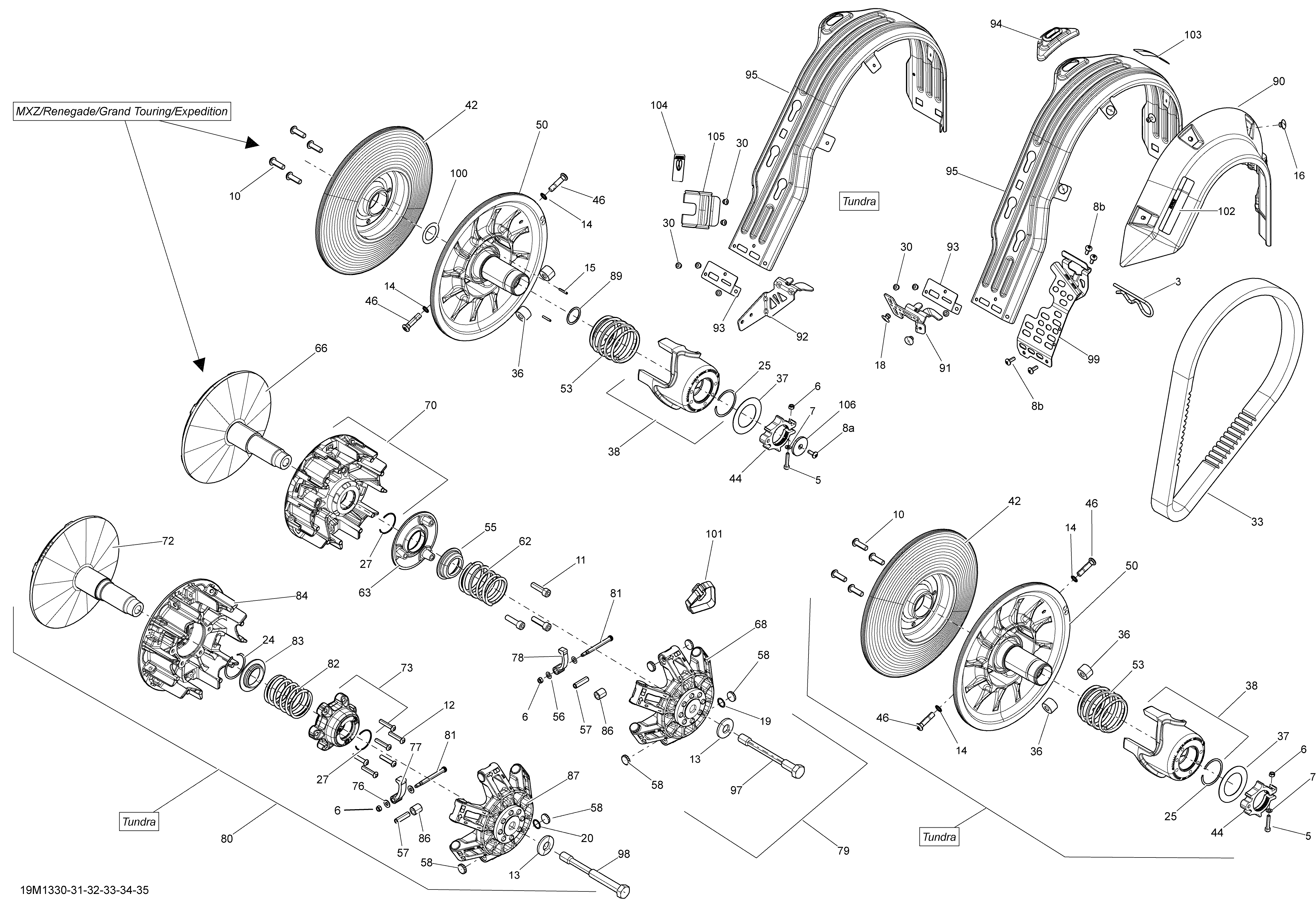

05- Pulley System для BRP Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
5205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
6232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
7234051410 Flat Washer M5Flat Washer M5
-
10250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
11250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
13250200006 Spring Washer 14 mmSpring Washer 14 mm
-
14250200009 Lock Washer 8 mmLock Washer 8 mm
-
15250400061 Spring Pin M3 X 18Spring Pin M3 X 18
-
16293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293300145 O-ringO-ring
-
25293370049 CirclipCirclip
-
27293370065 CirclipCirclip
-
30390909200 Avex RivetAvex Rivet
-
33417300127 Drive BeltDrive Belt
-
36417127016 RollerRoller
-
37417127155 WasherWasher
-
38417127235 Cam Ass'yCam Ass'y
-
42417127231 Slider Flange Ass'ySlider Flange Ass'y
-
44415129604 Calibration Ass'yCalibration Ass'y
-
46417127259 Pivot StudPivot Stud
-
50417127334 Fixe Flange Ass'yFixe Flange Ass'y
-
53417127344 Spring ReleaseSpring Release
-
55417223155 Spring SeatSpring Seat
-
56417223255 Thrust WasherThrust Washer
-
57417223257 Roller AxleRoller Axle
-
58417223269 Slider ShoeSlider Shoe
-
62417223315 Spring Clutch. MXZ, Grand TouringSpring Clutch. MXZ, Grand Touring
-
62417223314 Spring Clutch. Grand Touring EuropeSpring Clutch. Grand Touring Europe
-
63417223615 Slider Adaptor Ass'ySlider Adaptor Ass'y
-
66417223286 Fixe Flange Ass'yFixe Flange Ass'y
-
68417223778 Governor Cup Ass'yGovernor Cup Ass'y
-
70417223606 Slider Flange Ass'ySlider Flange Ass'y
-
78417223509 Ramp 712. MXZ, Grand TouringRamp 712. MXZ, Grand Touring
-
78417223510 Ramp 715. Grand Touring EuropeRamp 715. Grand Touring Europe
-
81417223694 Ramp AxleRamp Axle
-
86417223767 RollerRoller
-
89417300265 SpacerSpacer
-
90417300356 Side ProtectorSide Protector
-
91417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
93417300380 ReinforcementReinforcement
-
94417300381 GuideGuide
-
95417300382 Belt GuardBelt Guard
-
97417300407 Drive Bolt PulleyDrive Bolt Pulley
-
99417300448 Belt Guard BracketBelt Guard Bracket
-
100504112000 ShimShim
-
101508000599 Velcro StripVelcro Strip
-
102516005503 Decal, EnglishDecal, English
-
103516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
106517302322 Strength WasherStrength Washer
-
8a207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
8b250000145 Torx Screw M5 X 14Torx Screw M5 X 14
