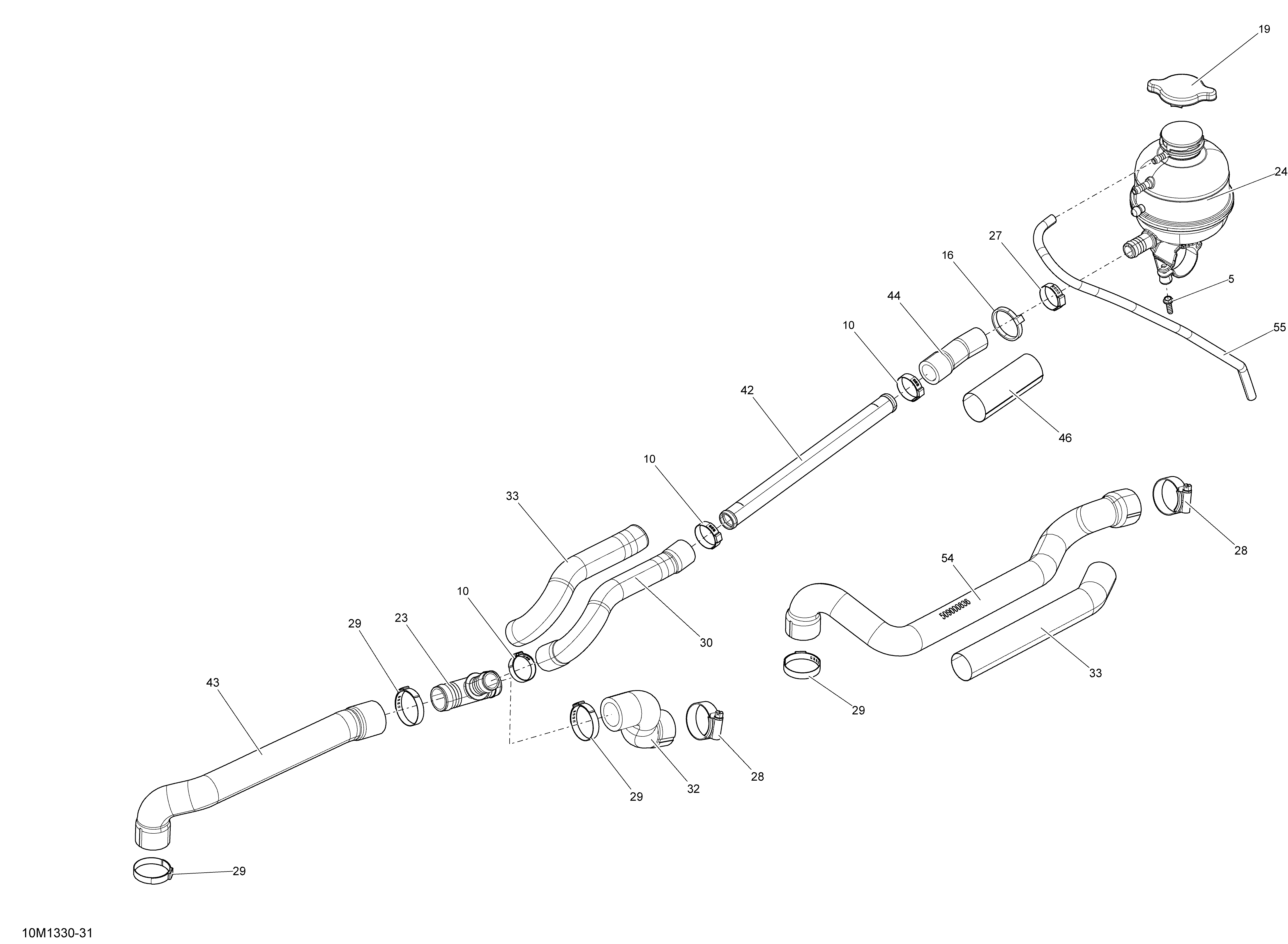

01- Cooling System для BRP Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10293650099 Oetiker Gear ClampOetiker Gear Clamp
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19509000180 Pressure CapPressure Cap
-
23509000372 T-FittingT-Fitting
-
24509000421 Coolant Tank. MX-Z, RenegadeCoolant Tank. MX-Z, Renegade
-
27509000442 Oetiker Gear ClampOetiker Gear Clamp
-
28509000443 Aba Gear ClampAba Gear Clamp
-
29509000529 Oetiker Gear ClampOetiker Gear Clamp
-
30509000563 HoseHose
-
32509000565 Engine Inlet HoseEngine Inlet Hose
-
33509000513 Protector Tube 32 mmProtector Tube 32 mm
-
42509000644 PipePipe
-
43509000697 Radiator Return HoseRadiator Return Hose
-
44509000698 HoseHose
-
46509000730 Protector Tube 31.75 mm - 90 mmProtector Tube 31.75 mm - 90 mm
-
54509000836 Engine Outlet Hose. MX-Z, RenegadeEngine Outlet Hose. MX-Z, Renegade
-
55276000048 Hose 6 mmHose 6 mm
