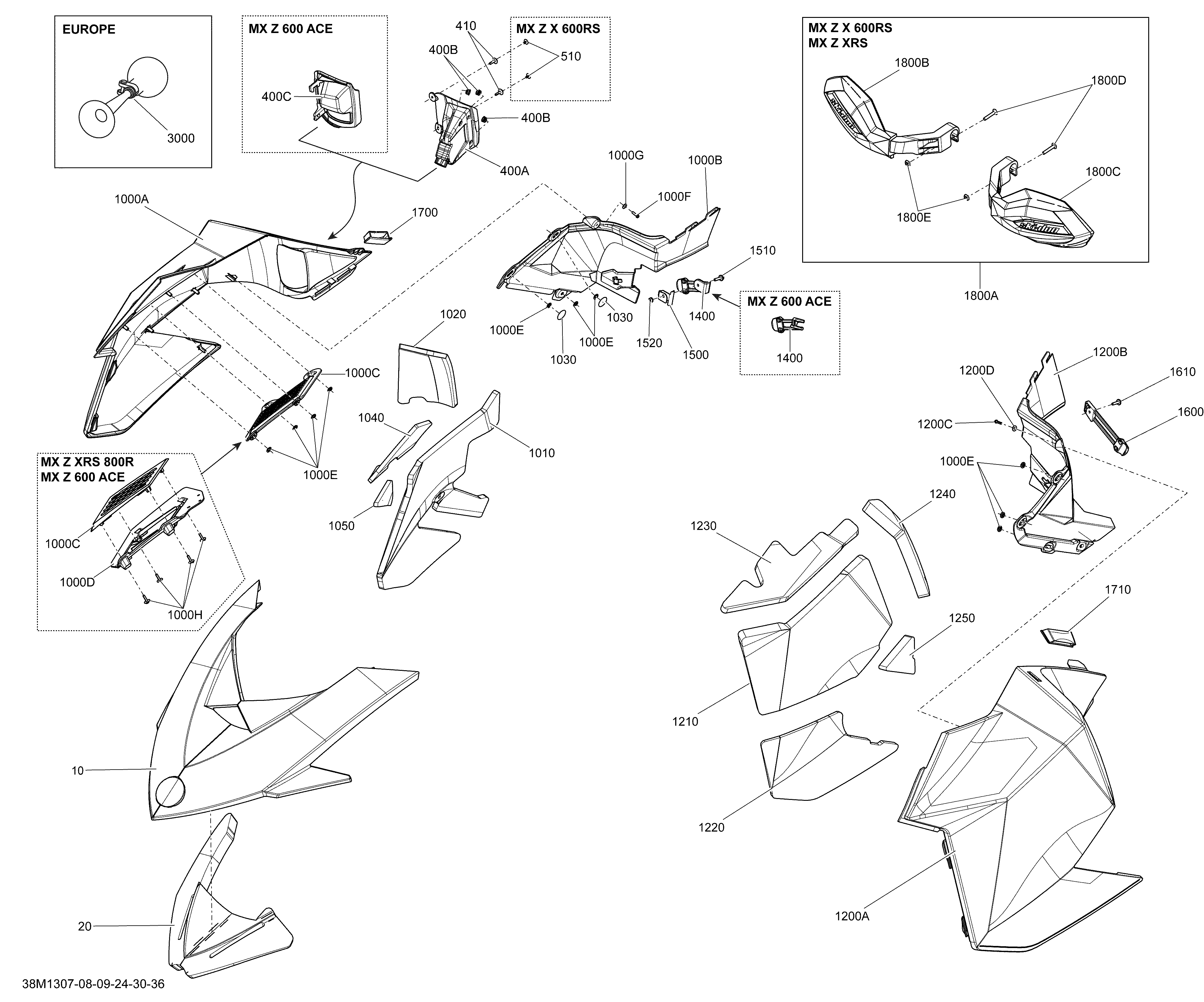

09- Hood для BRP Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
10517304530 HoodHood
-
20517304913 Hood FoamHood Foam
-
400c517304500 RH ConsoleRH Console
-
1000a517303609 RH Panel, YellowRH Panel, Yellow
-
1000b517303671 RH Moulding PanelRH Moulding Panel
-
1000c517304763 External GrillExternal Grill
-
1000d517304764 Internal GrillInternal Grill
-
1000e732610072 Push NutPush Nut
-
1000f241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
1000g234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1000h250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
1010517304883 RH Center FoamRH Center Foam
-
1020517304884 RH Panel Rear FoamRH Panel Rear Foam
-
1030518325560 Adhesive PatchAdhesive Patch
-
1200a517303610 LH Panel, YellowLH Panel, Yellow
-
1200b517303673 LH Moulding PanelLH Moulding Panel
-
1200c241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
1200d234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1210517304887 LH Panel Center FoamLH Panel Center Foam
-
1220517304888 LH Panel Lower FoamLH Panel Lower Foam
-
1230517304889 LH Panel Upper FoamLH Panel Upper Foam
-
1240517304890 LH Panel Rear FoamLH Panel Rear Foam
-
1250517304891 FoamFoam
-
1400517304551 Panel LatchPanel Latch
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
1700513033471 RH Panel ClipRH Panel Clip
-
1710513033472 LH Panel ClipLH Panel Clip
-
3000549011291 Horn. EuropeHorn. Europe
