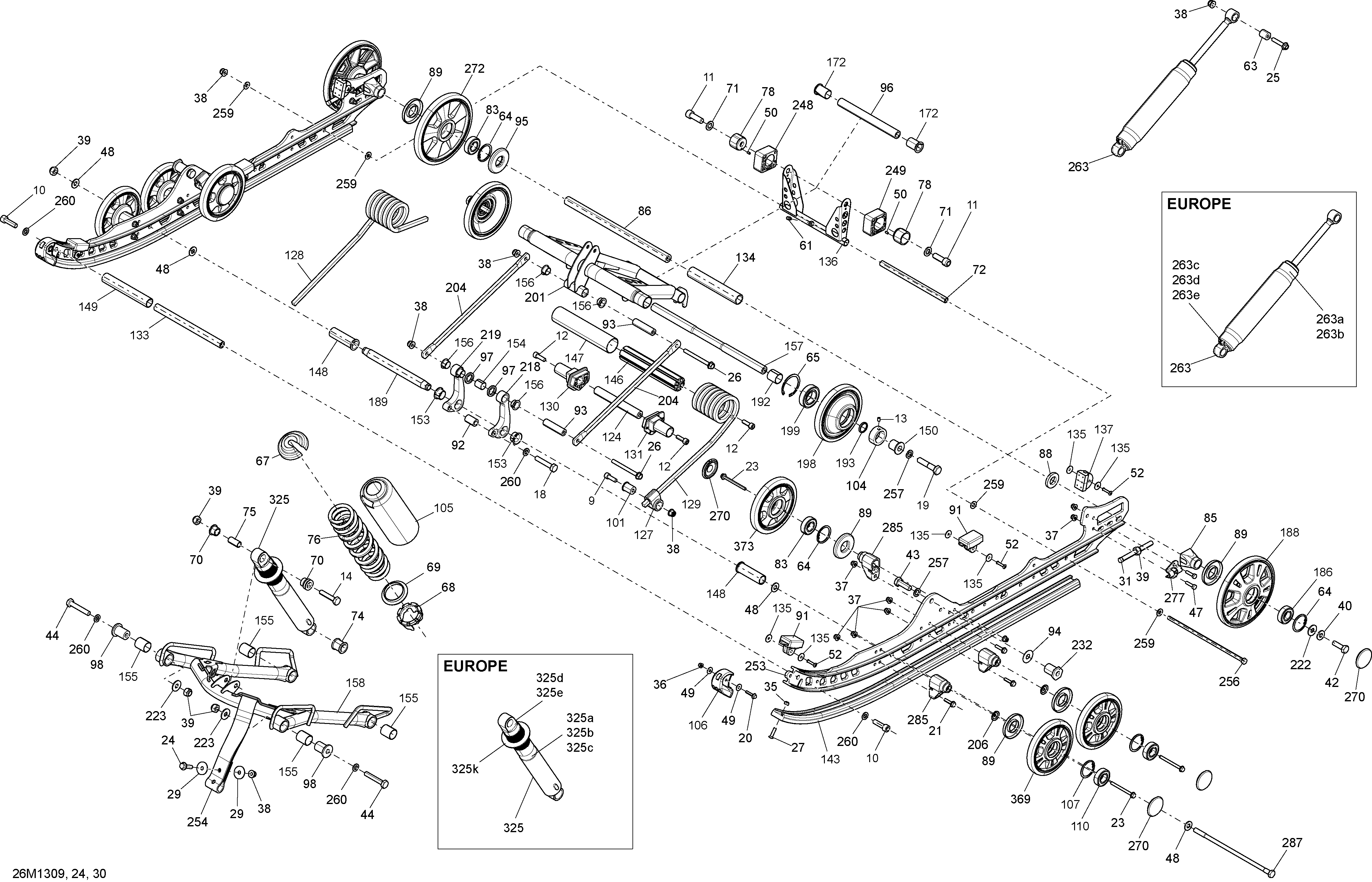

08- Rear Suspension для BRP Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP - 2013
-
№АртикулНазвание
-
9205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
10205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
11205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
12205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
13206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
14207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
18207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
19250000485 Hex. Cap Screw M12 X 60Hex. Cap Screw M12 X 60
-
20207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
21207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
23207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
24207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
25207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
26207688544 Hex. Flanged ScewHex. Flanged Scew
-
27208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
29250200128 Flat Washer 8 mmFlat Washer 8 mm
-
31230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
35232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
36233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
37233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
39233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
40234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
42250000019 Hex. Screw With NylonHex. Screw With Nylon
-
43250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
44250000357 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
47250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
48250200138 WasherWasher
-
49250200140 WasherWasher
-
50250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
52293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
61408200700 Grease FittingGrease Fitting
-
63414936000 CushionCushion
-
64415129371 Retaining RingRetaining Ring
-
65415129371 Retaining RingRetaining Ring
-
67706200881 Spring Stopper. North America. North AmericaSpring Stopper. North America. North America
-
67503192029 Spring Stopper. Europe. EuropeSpring Stopper. Europe. Europe
-
68505070150 Adjustment Cam. North America. North AmericaAdjustment Cam. North America. North America
-
69503191872 Spring Guide. North America. North AmericaSpring Guide. North America. North America
-
70503189117 CushionCushion
-
71503189148 WasherWasher
-
72503189156 Pivot Arm AxlePivot Arm Axle
-
74503189271 CushionCushion
-
75503189282 BushingBushing
-
76503191879 SpringSpring
-
78503189488 Block GuideBlock Guide
-
83503190396 Ball BearingBall Bearing
-
85503190428 Rear Wheel SpacerRear Wheel Spacer
-
86503190429 Rear AxleRear Axle
-
88503190432 WasherWasher
-
89503190434 Labyrinth SealLabyrinth Seal
-
91503190576 Rubber StopperRubber Stopper
-
92503190604 Central Shock AxleCentral Shock Axle
-
93503190643 Axle Bar (Long)Axle Bar (Long)
-
94503190656 WasherWasher
-
95503190682 Labyrinth SealLabyrinth Seal
-
96503192330 Lower ShaftLower Shaft
-
97503190694 Plastic SpacerPlastic Spacer
-
98503190698 AxleAxle
-
101503190754 Retainer CushionRetainer Cushion
-
104503191782 Retaining RingRetaining Ring
-
105503191126 Protector. North America. North AmericaProtector. North America. North America
-
106503191137 Runner ProtectorRunner Protector
-
107415129598 Retaining RingRetaining Ring
-
110503190396 Ball BearingBall Bearing
-
124503191178 Spring Cam AxeSpring Cam Axe
-
127503191183 Spring SupportSpring Support
-
128503191612 RH Spring, SquareRH Spring, Square
-
129503191613 LH Spring, SquareLH Spring, Square
-
130503191190 RH Spring CamRH Spring Cam
-
131503191191 LH Spring CamLH Spring Cam
-
133503191260 Axle StrapAxle Strap
-
134503190430 SpacerSpacer
-
135503191273 WasherWasher
-
136503191302 Pivot ArmPivot Arm
-
137503191291 Rubber StopperRubber Stopper
-
143503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
146503191344 Spring AxleSpring Axle
-
147503191345 Plastic BushingPlastic Bushing
-
148503191351 Center BushingCenter Bushing
-
149503191448 SpacerSpacer
-
153503191552 CushionCushion
-
154503191553 BushingBushing
-
155503191554 BushingBushing
-
156503191555 Swivel BushingSwivel Bushing
-
157503191776 Upper ShaftUpper Shaft
-
158503191579 Front Arm Ass'yFront Arm Ass'y
-
172503191640 CushionCushion
-
186503190396 Ball BearingBall Bearing
-
188503191742 Wheel 180 mm Ass'y, BlackWheel 180 mm Ass'y, Black
-
189503191764 Center ShaftCenter Shaft
-
192503191773 BushingBushing
-
193503191774 WasherWasher
-
194503191775 BushingBushing
-
198503191777 Wheel 144Wheel 144
-
199503191778 Ball BearingBall Bearing
-
201503191785 Rear Arm Ass'yRear Arm Ass'y
-
204503191802 Link RodLink Rod
-
206503191820 Wheel Cup M6Wheel Cup M6
-
218503191890 LH Rocker ArmLH Rocker Arm
-
219503191894 RH Rocker ArmRH Rocker Arm
-
222503191910 WasherWasher
-
223503191926 WasherWasher
-
232503191966 Lower AxleLower Axle
-
248503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
249503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
253503192152 Runner 120''Runner 120''
-
254503192360 Stopper StrapStopper Strap
-
256503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
257503192491 WasherWasher
-
259503192494 WasherWasher
-
260503192496 WasherWasher
-
263503191582 Rear Shock. North America. North AmericaRear Shock. North America. North America
-
263503192023 Rear Shock. Europe. EuropeRear Shock. Europe. Europe
-
263a414888312 O-Ring. Europe. EuropeO-Ring. Europe. Europe
-
263b503189308 Piston Ring. Europe. EuropePiston Ring. Europe. Europe
-
263c505070398 Air Valve. Europe. EuropeAir Valve. Europe. Europe
-
263d505070399 Screw. Europe. EuropeScrew. Europe. Europe
-
263e505070400 O-Ring. Europe. EuropeO-Ring. Europe. Europe
-
270503192771 Wheel CapWheel Cap
-
272503192778 Wheel 180, BlackWheel 180, Black
-
277503192814 TensionerTensioner
-
285503193082 Casted SupportCasted Support
-
287503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
325503191590 Center Shock. North America. North AmericaCenter Shock. North America. North America
-
325503191791 Center Shock. Europe. EuropeCenter Shock. Europe. Europe
-
325a414888312 O-Ring. Europe. EuropeO-Ring. Europe. Europe
-
325b503189308 Piston Ring. Europe. EuropePiston Ring. Europe. Europe
-
325c505070398 Air Valve. Europe. EuropeAir Valve. Europe. Europe
-
325d505070399 Screw. Europe. EuropeScrew. Europe. Europe
-
325e505070400 O-Ring. Europe. EuropeO-Ring. Europe. Europe
-
325k414888316 Spring Collar. Europe. EuropeSpring Collar. Europe. Europe
-
369503191151 Wheel 141 mm Ass'y, BlackWheel 141 mm Ass'y, Black
-
373503192794 Wheel 141 Ass'yWheel 141 Ass'y
