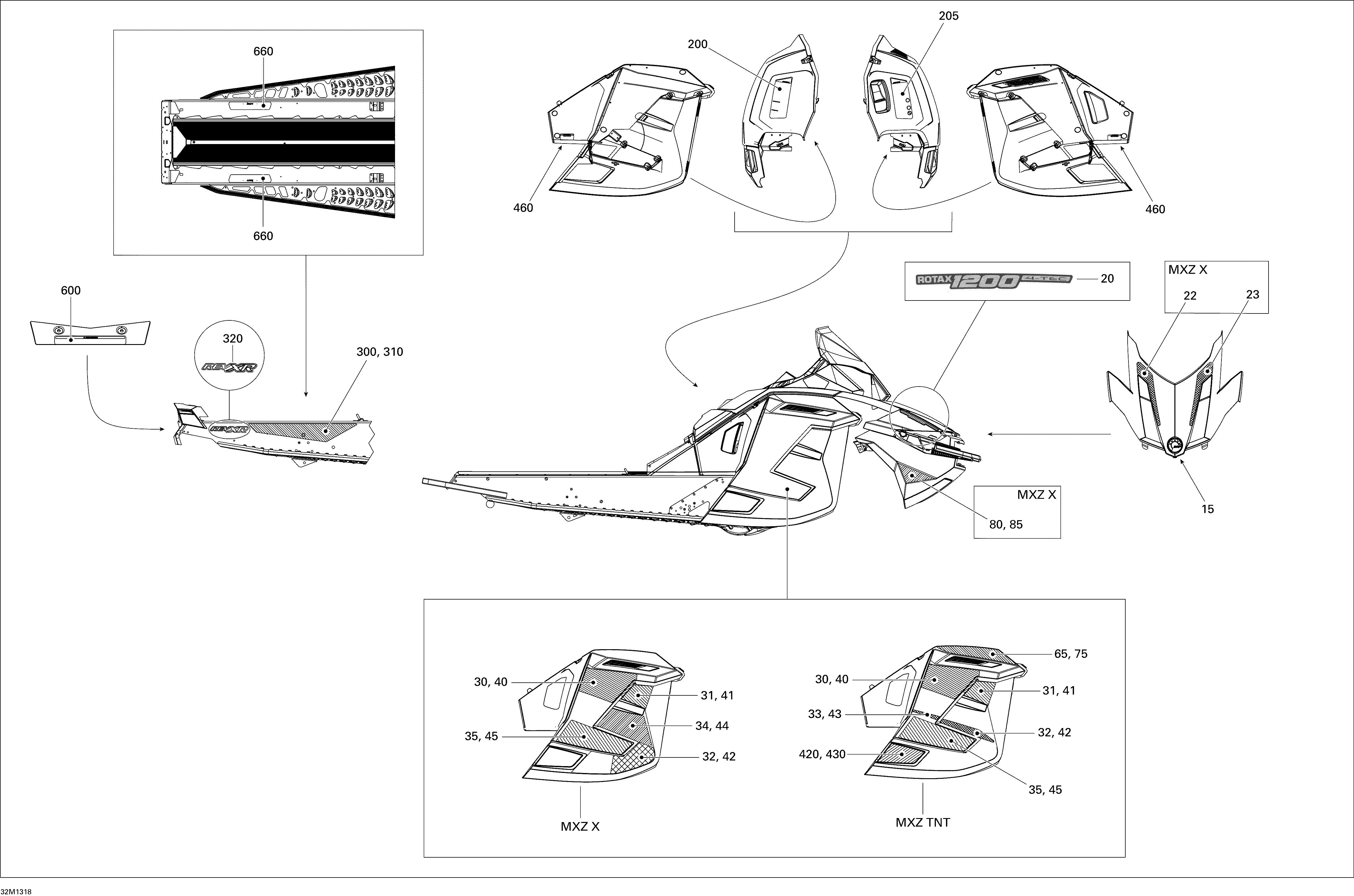

09- Decals X для BRP Ski-Doo MXZ X & TNT 1200 XR - 2013
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005381 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
22516005400 RH Hood DecalRH Hood Decal
-
23516005399 LH Hood DecalLH Hood Decal
-
30516005404 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
31516005406 RH Front Upper Side DecalRH Front Upper Side Decal
-
32516005410 RH Lower Side DecalRH Lower Side Decal
-
34516005581 RH Upper Side DecalRH Upper Side Decal
-
35516005408 RH Side DecalRH Side Decal
-
40516005403 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
41516005405 LH Front Upper Side DecalLH Front Upper Side Decal
-
42516005409 LH Lower Side DecalLH Lower Side Decal
-
44516005580 LH Upper Side DecalLH Upper Side Decal
-
45516005407 LH Side DecalLH Side Decal
-
80516005402 RH Bottom PanRH Bottom Pan
-
85516005401 LH Bottom PanLH Bottom Pan
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516005265 RH Frame DecalRH Frame Decal
-
310516005264 LH Frame DecalLH Frame Decal
-
320516004849 Decal, REV XRDecal, REV XR
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516005268 Warning Decal, TrackWarning Decal, Track
-
660516005154 Frame Top DecalFrame Top Decal
