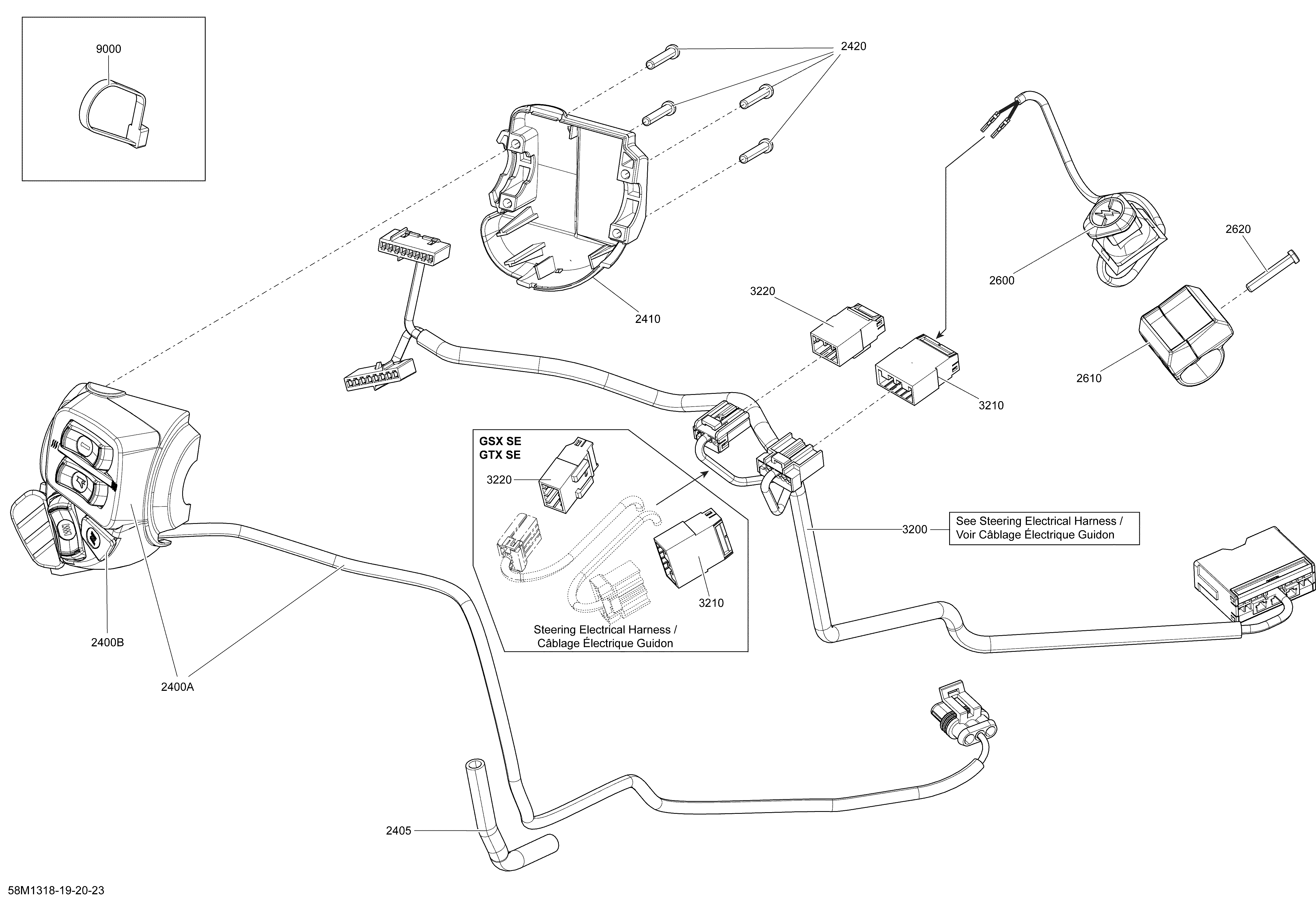

10- Electrical Accessories, Steering для BRP Ski-Doo MXZ X & TNT 1200 XR - 2013
-
№АртикулНазвание
-
2400a515177508 LH Housing Switch. TNT, Includes 2400A to 2400BLH Housing Switch. TNT, Includes 2400A to 2400B
-
2400a515177509 LH Housing Switch. X, Includes 2400A to 2400BLH Housing Switch. X, Includes 2400A to 2400B
-
2400b515176088 Start/RER ButtonStart/RER Button
-
2405515175442 Tubing 6 mmTubing 6 mm
-
2410515175926 Housing Switch PlateHousing Switch Plate
-
2420250000263 Torx Screw #8-18Torx Screw #8-18
-
2600515177362 Kill SwitchKill Switch
-
2610515176825 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3200515176867 Steering Wiring Harness Ass'y. TNTSteering Wiring Harness Ass'y. TNT
-
3200515176868 Steering Wiring Harness Ass'y. XSteering Wiring Harness Ass'y. X
-
3210515175817 Male Terminal Housing, 8 Circuits. TNTMale Terminal Housing, 8 Circuits. TNT
-
3210515175662 Male Terminal Housing, 6 Circuits. XMale Terminal Housing, 6 Circuits. X
-
3220515175662 Male Terminal Housing, 6 Circuits. TNTMale Terminal Housing, 6 Circuits. TNT
-
3220515175846 Male Terminal Housing, 4 Circuits. XMale Terminal Housing, 4 Circuits. X
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
