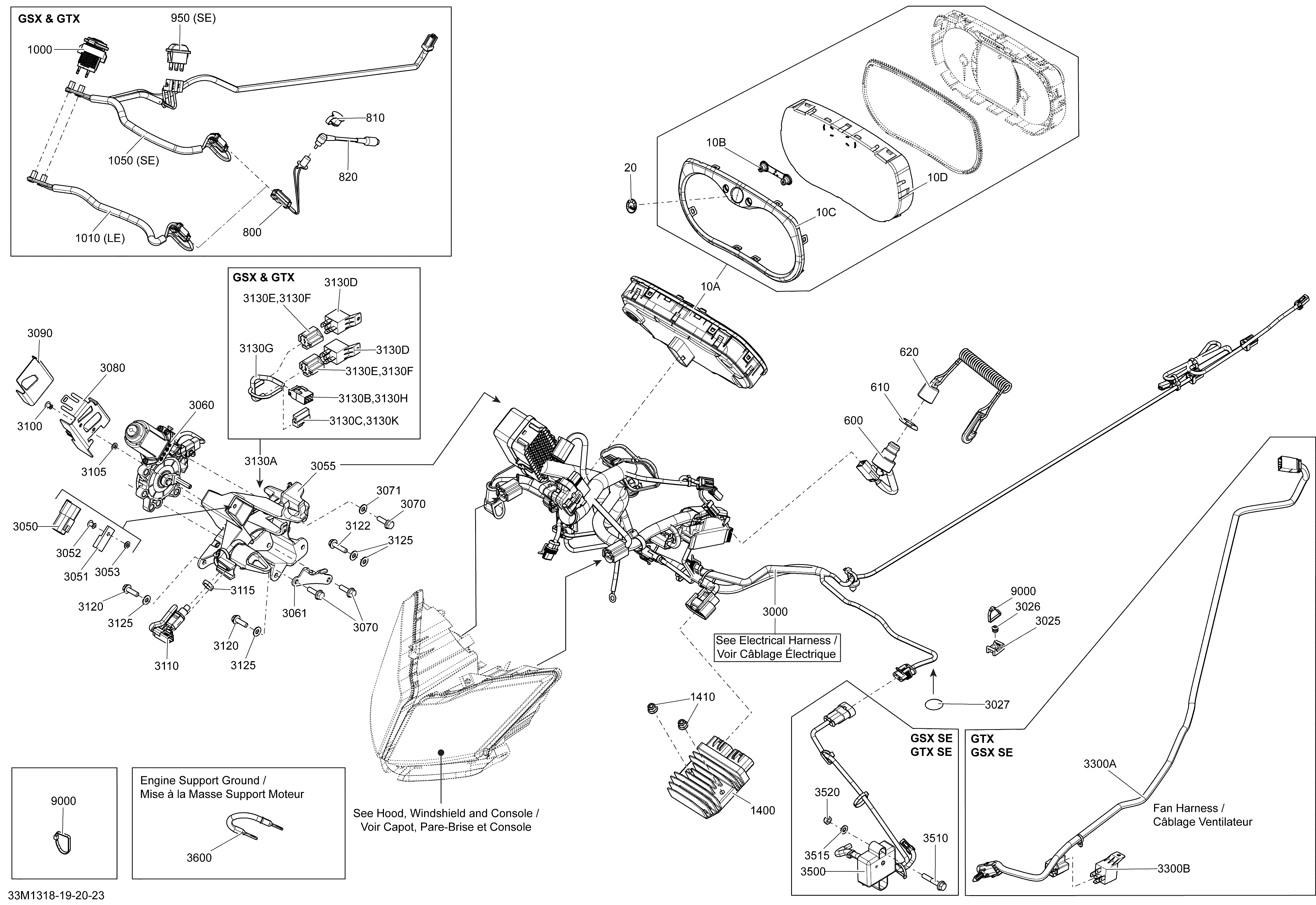

10- Electrical System для BRP Ski-Doo MXZ X & TNT 1200 XR - 2013
-
№АртикулНазвание
-
10a515177115 Speedometer. TNT, Includes 10A to 10DSpeedometer. TNT, Includes 10A to 10D
-
10a515177421 Speedometer. X, Includes 10A to 10DSpeedometer. X, Includes 10A to 10D
-
10b415129355 Speedometer ButtonSpeedometer Button
-
10c415129370 Gauge Ring. TNTGauge Ring. TNT
-
10c415129348 Gauge Ring. XGauge Ring. X
-
10d415129349 LensLens
-
20219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
600515177249 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515177057 DESS CapDESS Cap
-
1400515177325 RegulatorRegulator
-
1410233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3000515177379 Wiring HarnessWiring Harness
-
3027518325560 Adhesive PatchAdhesive Patch
-
3050710003006 HousingHousing
-
3051270000141 ClipClip
-
3052390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3053234051410 Flat Washer M5Flat Washer M5
-
3055515177428 Multifunction PlateMultifunction Plate
-
3080515177549 Fuse SupportFuse Support
-
3090515176637 ProtectorProtector
-
3100390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3105234051410 Flat Washer M5Flat Washer M5
-
3110515176472 Switch Ass'ySwitch Ass'y
-
3115250000373 Brass NutBrass Nut
-
3120210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3120210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3122210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
3125250200039 Flat WasherFlat Washer
-
3600515177289 Fil de MasseFil de Masse
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
