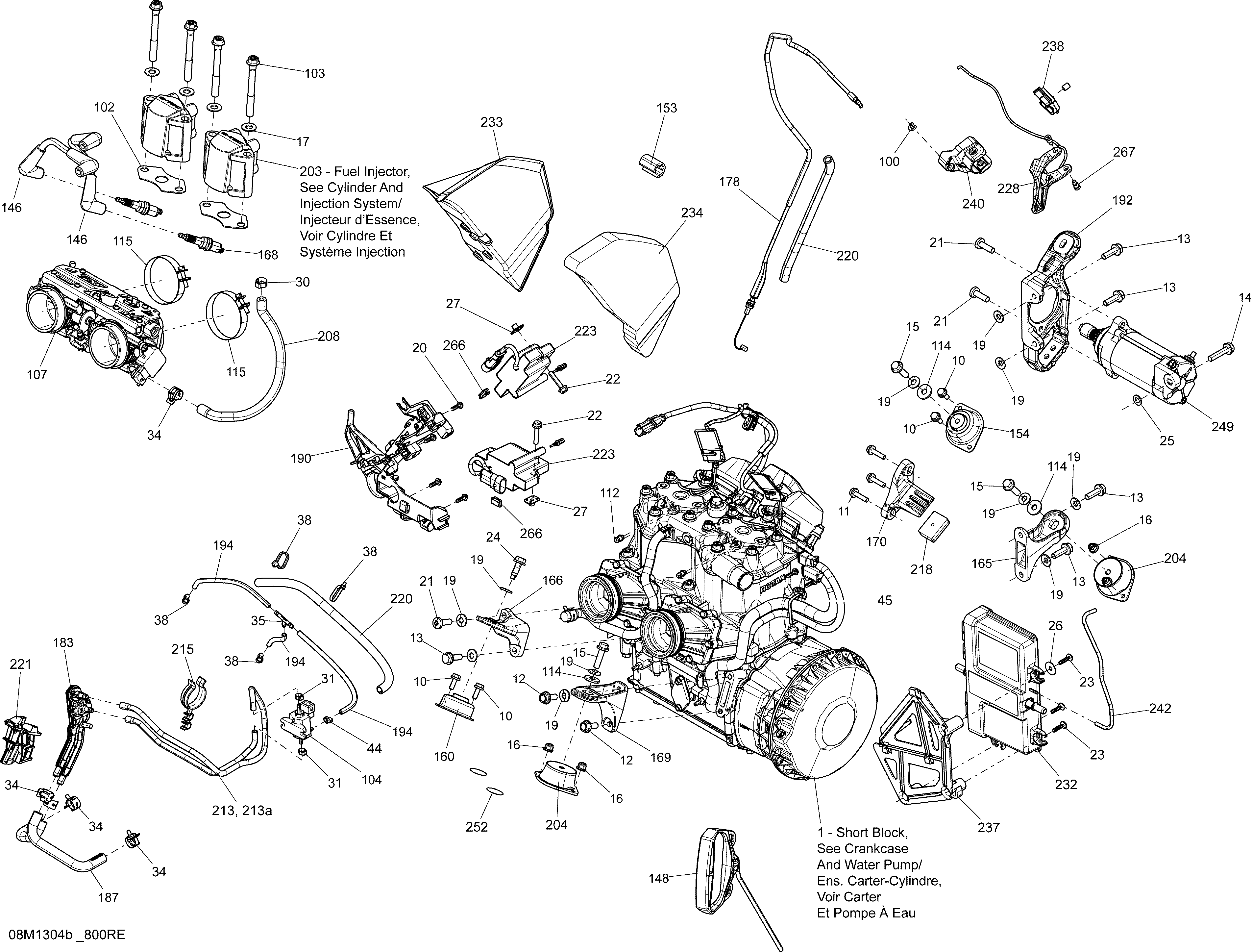

01- Engine And Engine Support 800 для BRP Ski-Doo RENEGADE BACK COUNTRY X 800RE XS - 2013
-
№АртикулНазвание
-
10207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
11207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
13207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
14207583544 Hex Flanged Screw M8 X 35, Scotch Grip. DELEHex Flanged Screw M8 X 35, Scotch Grip. DELE
-
15207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17234001410 Flat Washer 10 mmFlat Washer 10 mm
-
19250200146 Conical Spring Washer M8Conical Spring Washer M8
-
20241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
21250000248 Torx Screw M8 X 25, Scotch Grip. DELETorx Screw M8 X 25, Scotch Grip. DELE
-
21250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
22250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
23250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
24250000570 Hex. Screw M8Hex. Screw M8
-
25250200008 Flat Washer With Teflon 8 mm. DELEFlat Washer With Teflon 8 mm. DELE
-
26250200040 Flat WasherFlat Washer
-
27293100003 Nut M6Nut M6
-
30293650046 Oetiker ClampOetiker Clamp
-
31293650043 ClipClip
-
34293650214 Norma Spring ClampNorma Spring Clamp
-
34293650214 Norma Spring ClampNorma Spring Clamp
-
35293710068 T-FittingT-Fitting
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
100414274500 CirclipCirclip
-
102420430930 GasketGasket
-
103420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
104512060774 Solenoid ValveSolenoid Valve
-
107420889199 Throttle Body. 800REThrottle Body. 800RE
-
112420924724 Hose NippleHose Nipple
-
114503183200 Washer, YellowWasher, Yellow
-
115508000007 Clamp. 800REClamp. 800RE
-
146512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
148512060136 Starter Grip. DMANStarter Grip. DMAN
-
153512060313 ProtectorProtector
-
154512060387 Rubber MountRubber Mount
-
160512060448 Rubber MountRubber Mount
-
165512060469 Front Support, MAGFront Support, MAG
-
166512060478 Rear Support, PTORear Support, PTO
-
168415129484 Spark Plug, NGK PFR7AB. 800RESpark Plug, NGK PFR7AB. 800RE
-
169512060559 Rear Support, MAGRear Support, MAG
-
170512060576 Stopper SupportStopper Support
-
178512060667 Throttle Cable. REN BCXThrottle Cable. REN BCX
-
183512060692 ManifoldManifold
-
187512060694 RH Formed HoseRH Formed Hose
-
187512060695 LH Formed HoseLH Formed Hose
-
190512060696 Support Coils. Except SUMMITSupport Coils. Except SUMMIT
-
192512060714 Front Support, PTO. 800REFront Support, PTO. 800RE
-
194270000374 Hose 4.3 mmHose 4.3 mm
-
203512060728 Fuel Injector. 800REFuel Injector. 800RE
-
204512060729 Rubber MountRubber Mount
-
208512060732 Formed Hose, OutputFormed Hose, Output
-
213415080200 Hose, PolyurethaneHose, Polyurethane
-
213a512060814 SpringSpring
-
215512060762 Hose SupportHose Support
-
218512060627 Stopper. Except SUMMITStopper. Except SUMMIT
-
220409901700 Tubing 9 mmTubing 9 mm
-
221512060822 Manifold Support. 800REManifold Support. 800RE
-
223512060810 Ignition CoilIgnition Coil
-
228512060815 Throttle Ass'yThrottle Ass'y
-
232512060870 Calibrated Module 800R E-TEC. 800RE BCXCalibrated Module 800R E-TEC. 800RE BCX
-
233512060847 Noise ShieldNoise Shield
-
234512060849 Interior Noise FoamInterior Noise Foam
-
237512060858 Calibrated Module SupportCalibrated Module Support
-
238512060859 Upper HousingUpper Housing
-
240512060860 Lower HousingLower Housing
-
242415080100 LineLine
-
249515177389 Starter. DELEStarter. DELE
-
252518325560 Adhesive PatchAdhesive Patch
-
266710000992 ClipClip
-
267732601143 Flanged ScrewFlanged Screw
