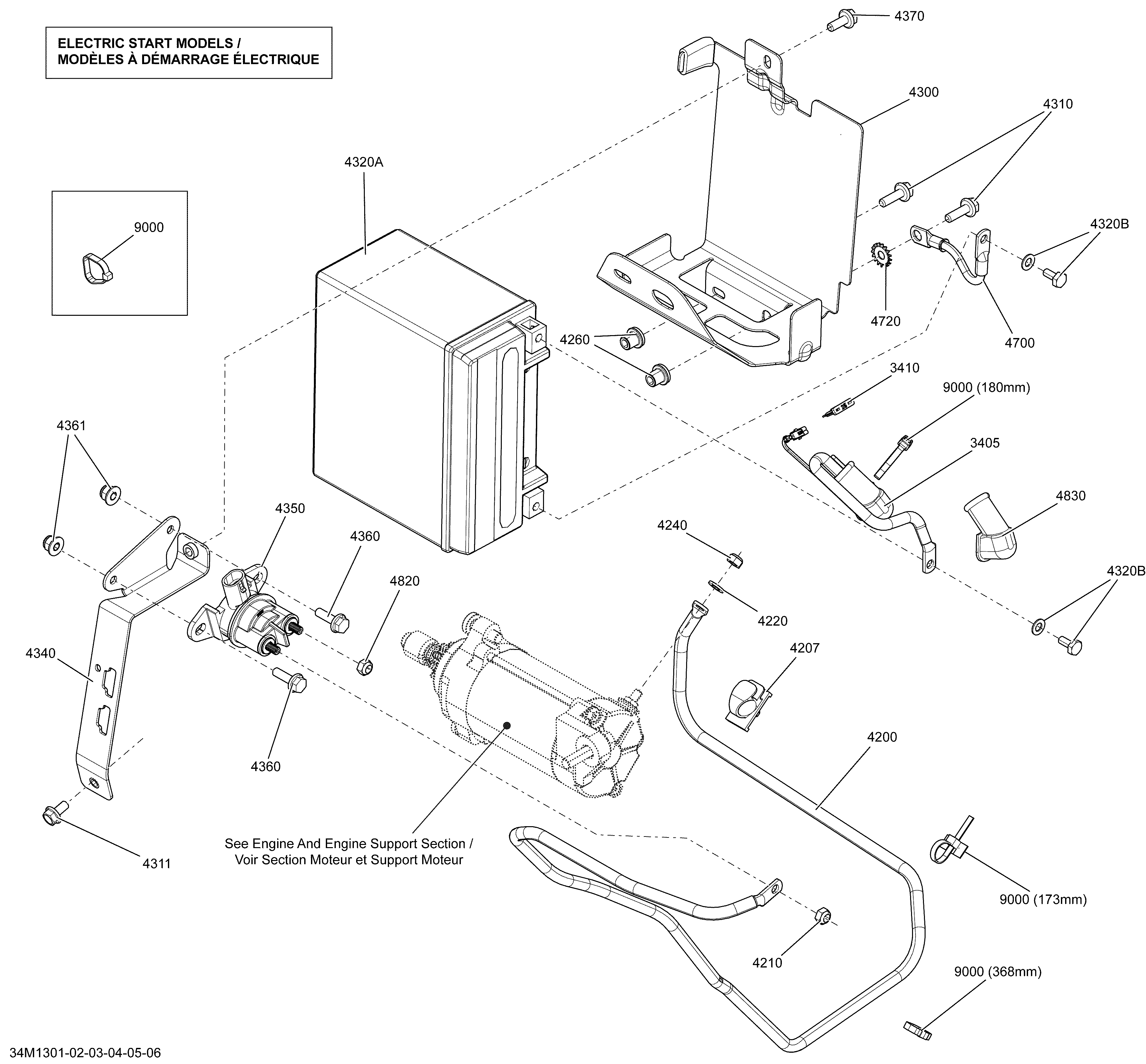

10- Battery And Starter для BRP Ski-Doo RENEGADE BACK COUNTRY X 800RE XS - 2013
-
№АртикулНазвание
-
3405515177207 Battery Fuse Wire. 800R E-TECBattery Fuse Wire. 800R E-TEC
-
3405515177534 Battery Fuse Wire. 600HO E-TECBattery Fuse Wire. 600HO E-TEC
-
3410278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
4200515177208 Battery/Starter WireBattery/Starter Wire
-
4207515177066 ClipClip
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4260415107300 InsertInsert
-
4300515177264 Battery SupportBattery Support
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4311207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4320a410301203 Battery Ass'y, 18 Amperes. 600HO E-TEC, Includes 4320A to 4320BBattery Ass'y, 18 Amperes. 600HO E-TEC, Includes 4320A to 4320B
-
4320a296000295 Battery 18 Amp. 800R E-TEC, Includes 4320A to 4320BBattery 18 Amp. 800R E-TEC, Includes 4320A to 4320B
-
4320B295500849 Battery Fastener KitBattery Fastener Kit
-
4340515177266 Battery StripBattery Strip
-
4350278002347 Starter RelayStarter Relay
-
4360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4361233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4700515176358 Ground WireGround Wire
-
4720250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
