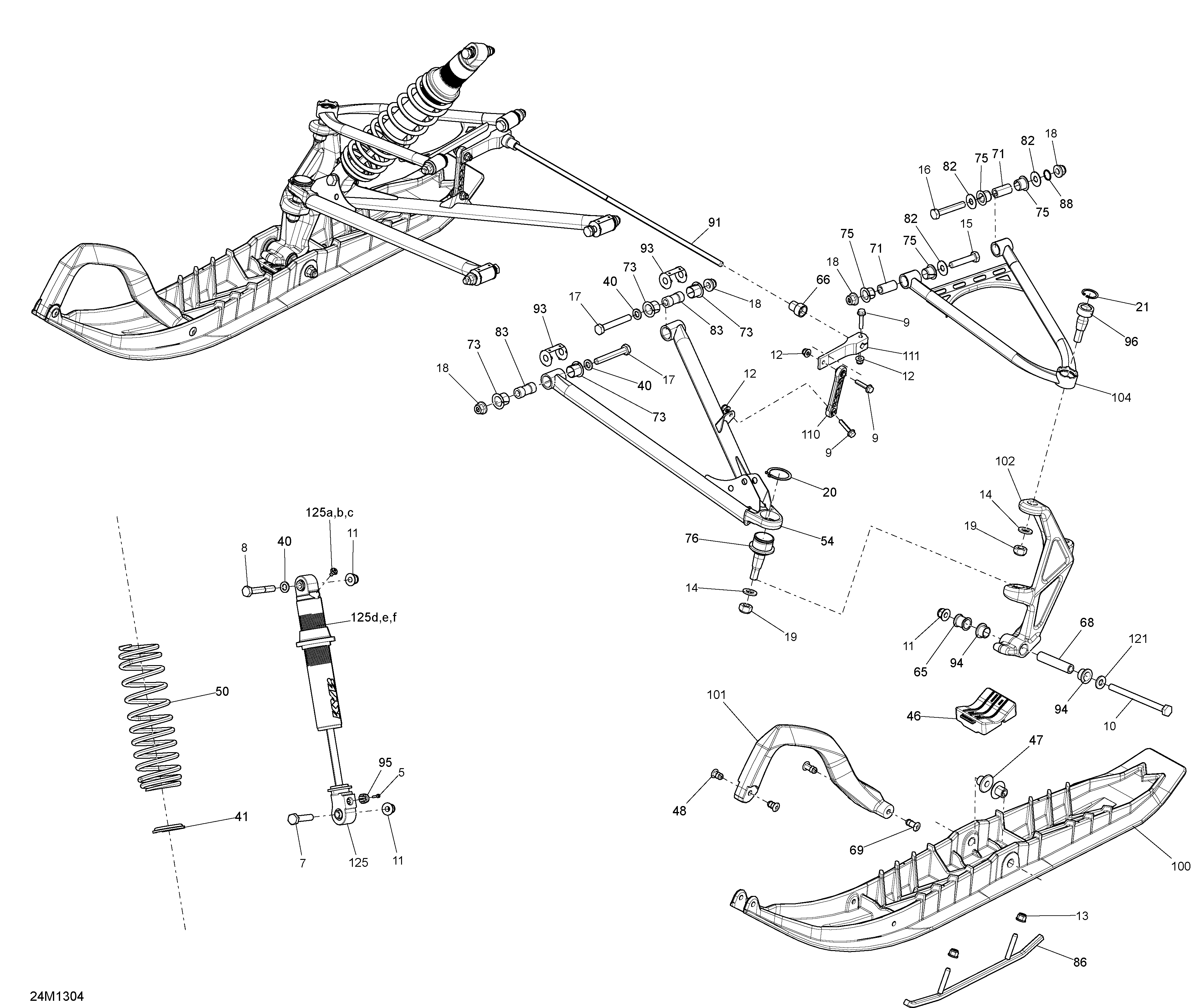

07- Front Suspension And Ski для BRP Ski-Doo RENEGADE BACK COUNTRY X 800RE XS - 2013
-
№АртикулНазвание
-
7207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
8207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
9207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
10230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
11233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
12233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503192491 WasherWasher
-
15250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
16250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
17250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
18250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
19232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
20293370035 CirclipCirclip
-
21293370070 CirclipCirclip
-
40503189564 WasherWasher
-
41503192608 Spring Stopper. REN BC XSpring Stopper. REN BC X
-
46505072594 Ski StopperSki Stopper
-
47505071781 Cushion. RENEGADECushion. RENEGADE
-
48505071812 Retainer. RENEGADERetainer. RENEGADE
-
50505072846 Painted Spring. REN BC XPainted Spring. REN BC X
-
54505072497 RH Lower ArmRH Lower Arm
-
54505072498 LH Lower ArmLH Lower Arm
-
65505071999 SpacerSpacer
-
66505072064 Bushing. RENEGADEBushing. RENEGADE
-
68506133300 SpacerSpacer
-
69505072133 Retainer. RENEGADERetainer. RENEGADE
-
71505072143 BushingBushing
-
73505072208 BushingBushing
-
75505072250 BushingBushing
-
76505072682 Lower Ball JointLower Ball Joint
-
82505072392 WasherWasher
-
83505072393 Bushing. RENEGADEBushing. RENEGADE
-
86860200141 Carbide Runner KitCarbide Runner Kit
-
88505072448 O-RingO-Ring
-
91505072602 Stabilisator. RENEGADEStabilisator. RENEGADE
-
93505072634 Wear PlateWear Plate
-
94505072690 Leg CushionLeg Cushion
-
95505072753 Adjustment Knob. REN BC XAdjustment Knob. REN BC X
-
96505072913 Upper Ball JointUpper Ball Joint
-
100415129567 DS Ski, Black. RENEGADEDS Ski, Black. RENEGADE
-
101505073107 Handle, Yellow. RENEGADEHandle, Yellow. RENEGADE
-
102505073177 LH Ski Leg. RENEGADELH Ski Leg. RENEGADE
-
102505073178 RH Ski Leg. RENEGADERH Ski Leg. RENEGADE
-
104505073074 LH Upper ArmLH Upper Arm
-
104505073076 RH Upper ArmRH Upper Arm
-
110505072204 Double Ball Joint Link. RENEGADEDouble Ball Joint Link. RENEGADE
-
111505072394 Stabilisator Lever. RENEGADEStabilisator Lever. RENEGADE
-
121503192496 WasherWasher
-
125505073117 Front Shock. REN BC XFront Shock. REN BC X
-
125a505070400 O-Ring. REN BC XO-Ring. REN BC X
-
125b505070399 Screw. REN BC XScrew. REN BC X
-
125c505070398 Air Valve. REN BC XAir Valve. REN BC X
-
125d503189308 Piston Ring. REN BC XPiston Ring. REN BC X
-
125e414888312 O-Ring. REN BC XO-Ring. REN BC X
