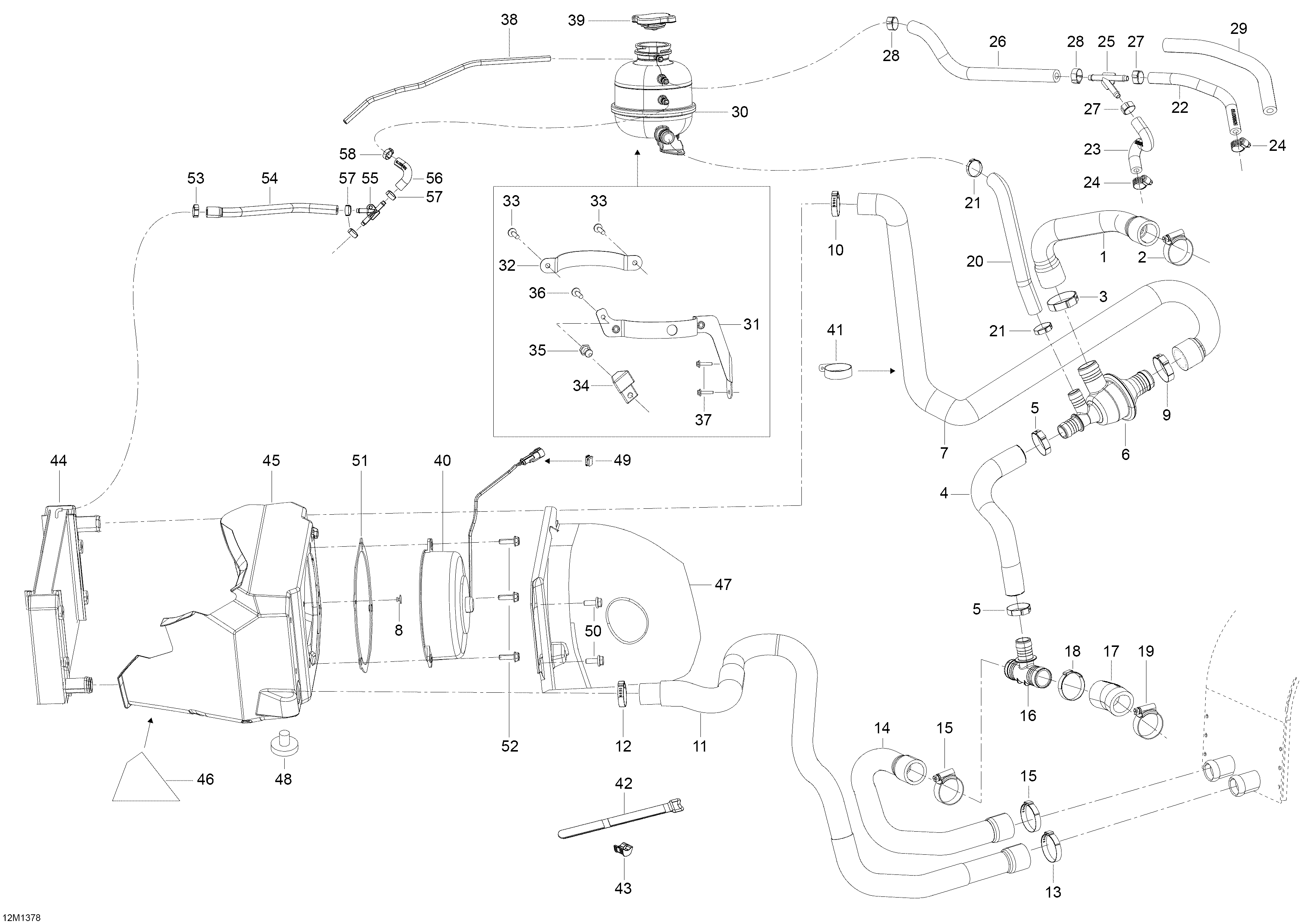

01- Cooling System для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2013
-
№АртикулНазвание
-
1509000595 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000181 Oetiker Gear ClampOetiker Gear Clamp
-
4509000523 Bypass HoseBypass Hose
-
5293650099 Oetiker Gear ClampOetiker Gear Clamp
-
6509000499 Thermostat HousingThermostat Housing
-
7509000737 Hose RadiatorHose Radiator
-
8M36005 RivetRivet
-
9509000181 Oetiker Gear ClampOetiker Gear Clamp
-
10293650099 Oetiker Gear ClampOetiker Gear Clamp
-
11509000588 Air Radiator HoseAir Radiator Hose
-
12293650099 Oetiker Gear ClampOetiker Gear Clamp
-
13509000443 Aba Gear ClampAba Gear Clamp
-
14509000589 Return Radiator HoseReturn Radiator Hose
-
15509000443 Aba Gear ClampAba Gear Clamp
-
16509000372 T-FittingT-Fitting
-
17509000675 Engine Inlet HoseEngine Inlet Hose
-
18509000181 Oetiker Gear ClampOetiker Gear Clamp
-
19509000443 Aba Gear ClampAba Gear Clamp
-
20509000736 Filling HoseFilling Hose
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22509000769 Bleeder HoseBleeder Hose
-
23509000768 Bleeder HoseBleeder Hose
-
24293650170 Tridon Gear ClampTridon Gear Clamp
-
25293710059 Y-FittingY-Fitting
-
26509000878 Breather HoseBreather Hose
-
27293650046 Oetiker ClampOetiker Clamp
-
28293650047 Crimp ClampCrimp Clamp
-
29513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
30509000368 Coolant TankCoolant Tank
-
31509000852 Reservoir supportReservoir support
-
32509000608 SupportSupport
-
33732600030 ScrewScrew
-
34509000609 SupportSupport
-
35517303439 KnobKnob
-
36250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
37250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
38276000048 Hose 6 mmHose 6 mm
-
39509000180 Pressure CapPressure Cap
-
40509000837 FanFan
-
41M27011 ClipClip
-
42508000532 Velcro StripVelcro Strip
-
43508000572 BumperBumper
-
44509000756 RadiatorRadiator
-
45509000739 Cooling fan shroudCooling fan shroud
-
46509000615 FoamFoam
-
47509000558 DeflectorDeflector
-
48570044700 Rubber BumperRubber Bumper
-
49710000992 ClipClip
-
50207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
51509000614 Screw plateScrew plate
-
52210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
53293650053 Crimp ClampCrimp Clamp
-
54509000880 Formed HoseFormed Hose
-
55293710140 Y-FittingY-Fitting
-
56509000879 Formed HoseFormed Hose
-
57293650047 Crimp ClampCrimp Clamp
-
58293650047 Crimp ClampCrimp Clamp
