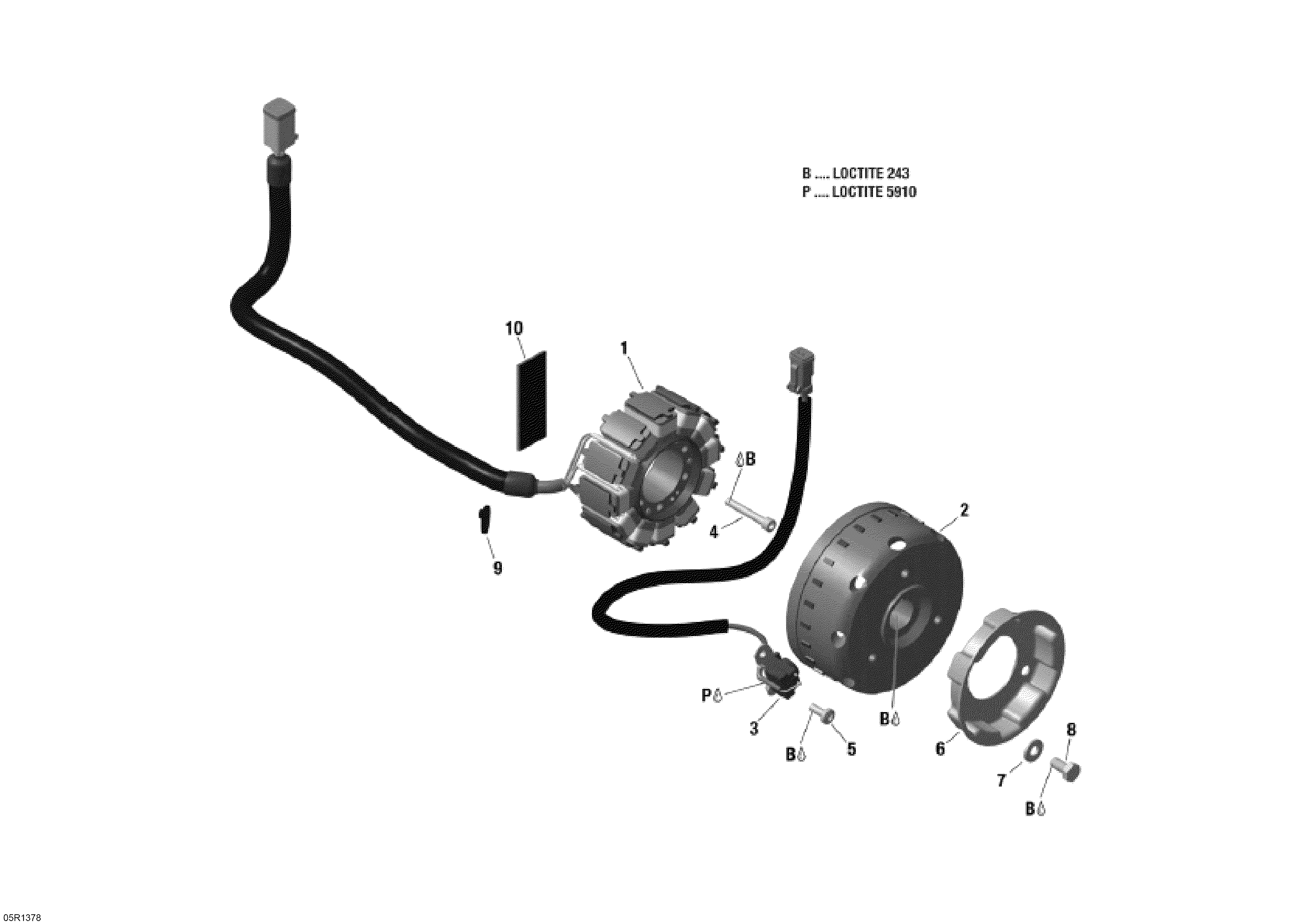

03- Magneto для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2013
-
№АртикулНазвание
-
1420665435 Stator PlateStator Plate
-
2420665442 FlywheelFlywheel
-
3410922969 Pick-Up Ass'yPick-Up Ass'y
-
4420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
5420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
6420852532 Starting Pulley. Manual StartStarting Pulley. Manual Start
-
7420827405 Flat Washer. Manual StartFlat Washer. Manual Start
-
8207181644 Hex. Screw M8 x 16. Manual StartHex. Screw M8 x 16. Manual Start
-
9420866714 Tie RapTie Rap
-
10420201360 Adhesive Pad, 1.6 mm X 20 mm X 60 mmAdhesive Pad, 1.6 mm X 20 mm X 60 mm
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
