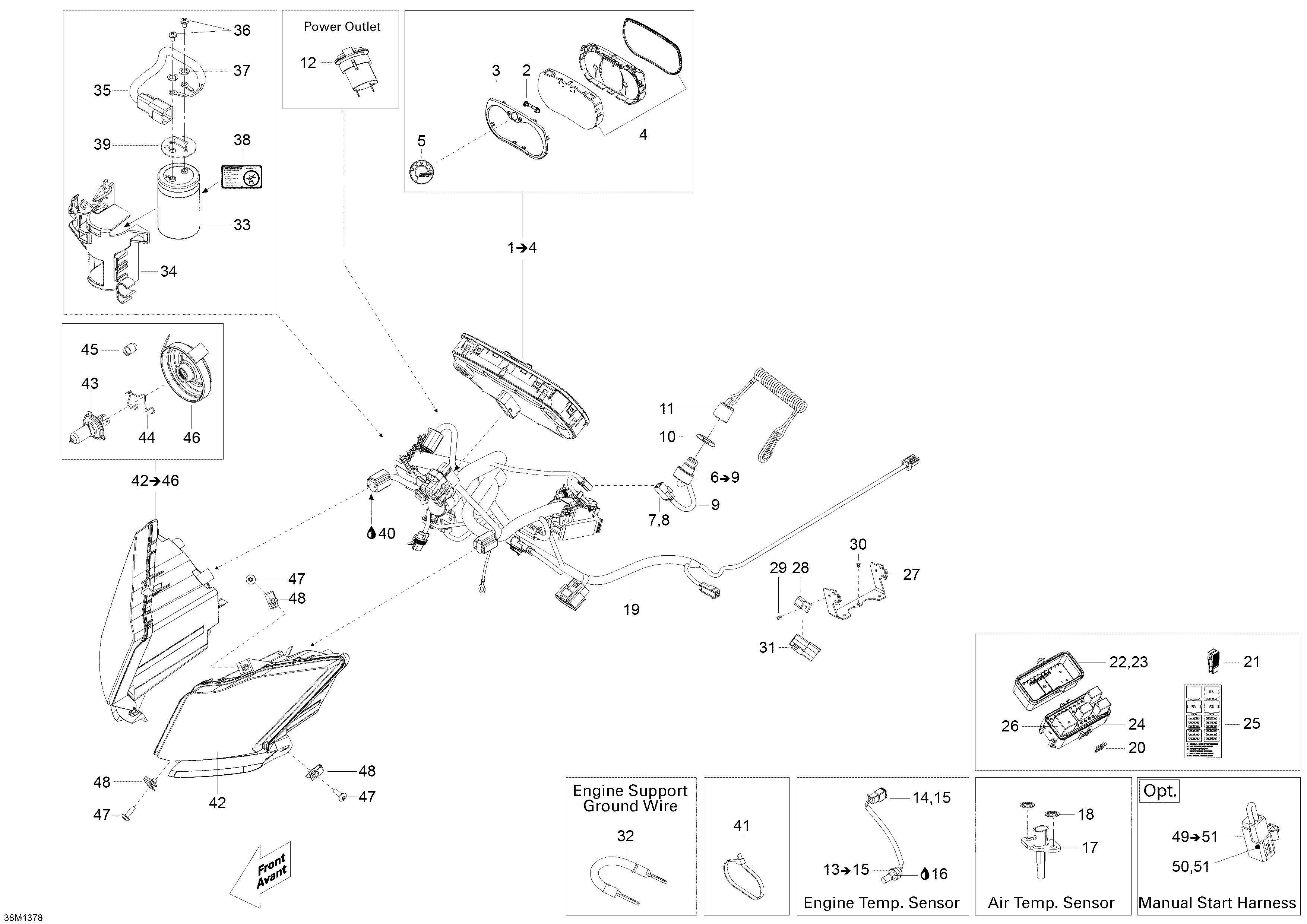

10- Electrical System для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2013
-
№АртикулНазвание
-
1515177492 Speedometer Ass'y. Includes 1 to 4Speedometer Ass'y. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS Switch. Includes 6 to 9DESS Switch. Includes 6 to 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278000508 Safety Switch NutSafety Switch Nut
-
11515177057 DESS CapDESS Cap
-
12710001248 Outlet DCOutlet DC
-
13515176398 Temperature Sensor. Includes 13 to 15Temperature Sensor. Includes 13 to 15
-
14515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
15278000632 Female TerminalFemale Terminal
-
17515176366 Air Temperature SensorAir Temperature Sensor
-
18389804300 Push NutPush Nut
-
19515177077 Main HarnessMain Harness
-
20710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
20710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
20710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
20710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
20710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
20710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
21710000781 Fuse PullerFuse Puller
-
22710001026 Fuse CoverFuse Cover
-
23278002172 FoamFoam
-
24710000660 Fuse Box Ass'yFuse Box Ass'y
-
25516005892 Fuse decal ETECFuse decal ETEC
-
26515176775 Relay, 50 AMPRelay, 50 AMP
-
26515176774 Relay, 30 AMPRelay, 30 AMP
-
27515177073 Fusebox SupportFusebox Support
-
28270000141 ClipClip
-
29293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
32515176861 Ground WireGround Wire
-
33515176349 CapacitorCapacitor
-
34515176607 Capacitor SupportCapacitor Support
-
35515176605 Capacitor HarnessCapacitor Harness
-
36250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
37250200026 Lock washerLock washer
-
38516005515 Capacitor Decal (English)Capacitor Decal (English)
-
39515177193 CapCap
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
42517304194 RH Headlamp Ass'y. Includes 42 To 46RH Headlamp Ass'y. Includes 42 To 46
-
42517304195 LH Headlamp Ass'y. Includes 42 To 46LH Headlamp Ass'y. Includes 42 To 46
-
43515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
45515176498 CapCap
-
46515176499 CoverCover
-
47250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
48250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
49515176661 Manual Start Harness. Includes 49 to 51Manual Start Harness. Includes 49 to 51
-
50515175232 Male TerminalMale Terminal
-
51710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
