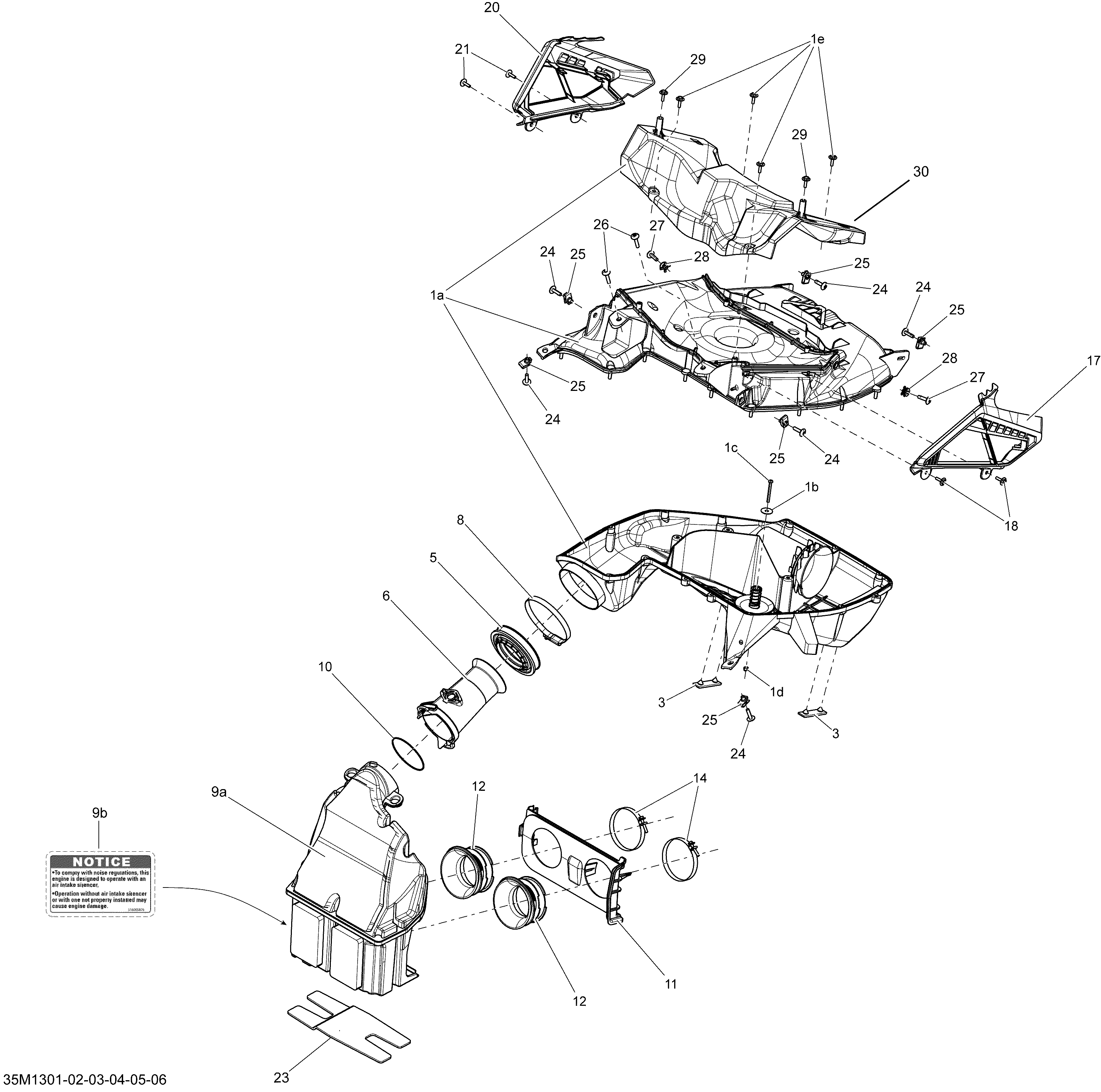

02- Air Intake System для BRP Ski-Doo SUMMIT SP 800RE XM - 2013
-
№АртикулНазвание
-
1a508000722 Secondary Chamber Ass'y. Includes 1a to 1eSecondary Chamber Ass'y. Includes 1a to 1e
-
1b224060201 Flat WasherFlat Washer
-
1c205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
1d232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
1e250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
3508000744 StopperStopper
-
5508000567 BootBoot
-
6508000662 FluteFlute
-
8514052924 Norma ClampNorma Clamp
-
9a508000660 Primary Chamber Ass'y. Includes 9a to 9bPrimary Chamber Ass'y. Includes 9a to 9b
-
9b516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
10293300115 O-RingO-Ring
-
11508000613 Plate AdapterPlate Adapter
-
12508000614 Air Intake AdapterAir Intake Adapter
-
14508000346 Gemi ClampGemi Clamp
-
17508000730 RH Air FilterRH Air Filter
-
18250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
20508000731 LH Air FilterLH Air Filter
-
21250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
23508000739 Insulated FoamInsulated Foam
-
24250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
27250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
28250100035 Jack Nut M5Jack Nut M5
-
29250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
30508000732 Air DuctAir Duct
