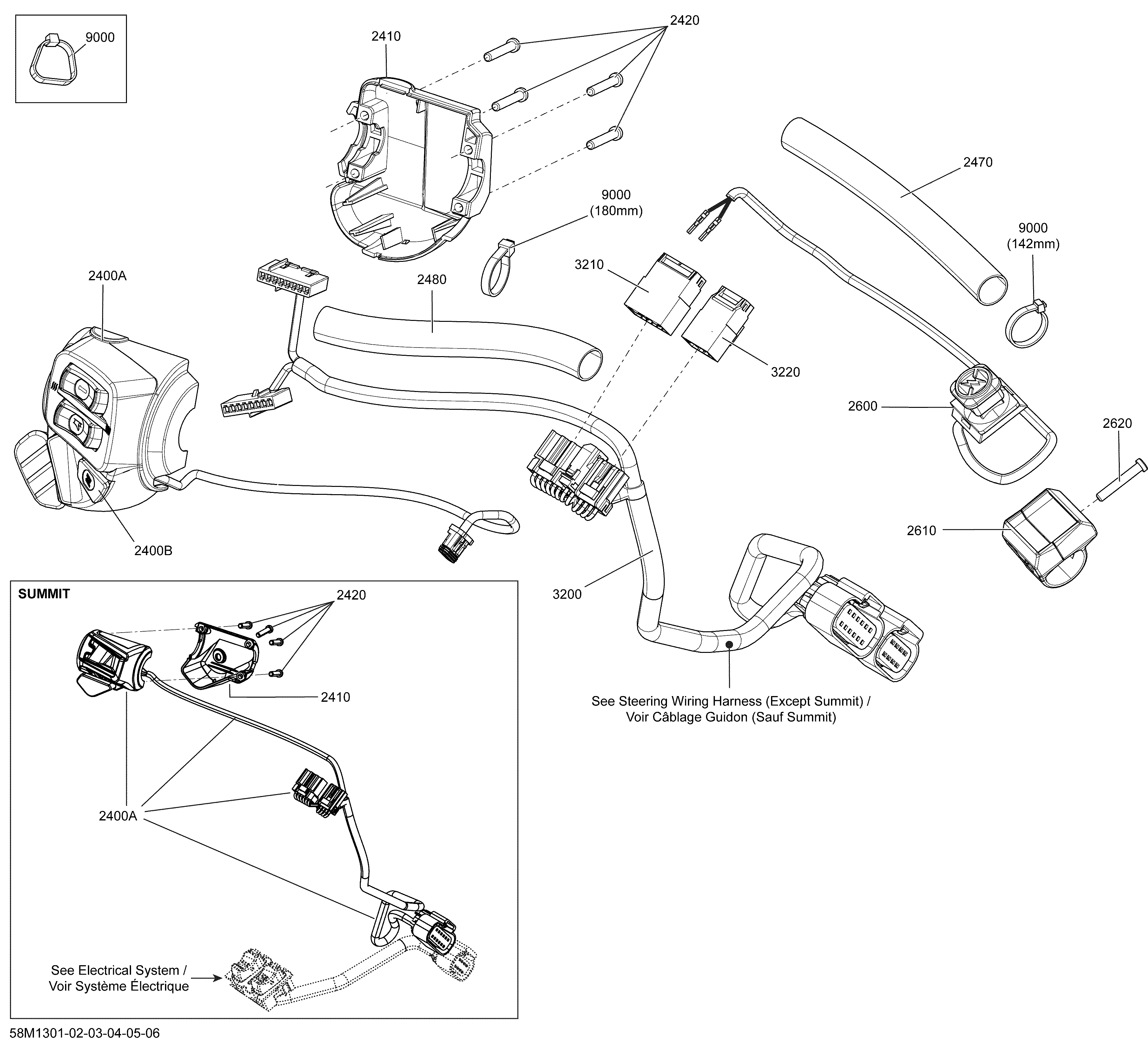

10- Electrical Accessories, Steering для BRP Ski-Doo SUMMIT SP 800RE XM - 2013
-
№АртикулНазвание
-
2400a515177088 LH Switch HousingLH Switch Housing
-
2400a515177088 LH Switch HousingLH Switch Housing
-
2410515177149 LH Switch Housing PlateLH Switch Housing Plate
-
2410515177149 LH Switch Housing PlateLH Switch Housing Plate
-
2420250000584 Torx ScrewTorx Screw
-
2420250000584 Torx ScrewTorx Screw
-
2470415129879 Corrugated TubeCorrugated Tube
-
2470415129879 Corrugated TubeCorrugated Tube
-
2480415129879 Corrugated TubeCorrugated Tube
-
2480415129879 Corrugated TubeCorrugated Tube
-
2600515177362 Kill SwitchKill Switch
-
2600515177362 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
