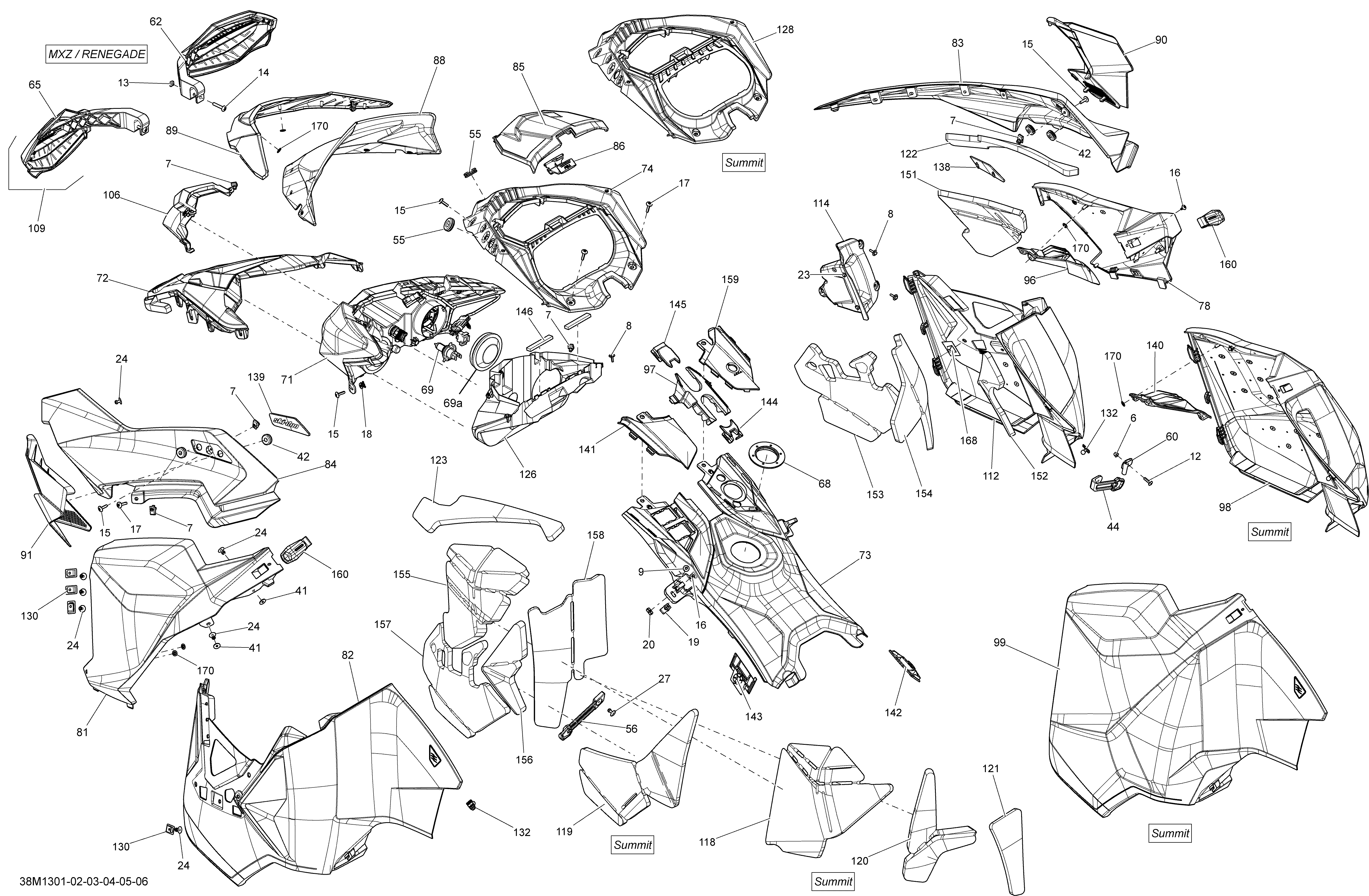

09- Hood, Windshield And Console для BRP Ski-Doo SUMMIT SP 800RE XM - 2013
-
№АртикулНазвание
-
6233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
7250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
8250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
9250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
13250000498 Square Nut M6Square Nut M6
-
14250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
15250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
16250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
17250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
18250100035 Jack Nut M5Jack Nut M5
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20250100156 Weld Nut M4Weld Nut M4
-
23275500241 Cap, BlackCap, Black
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
41517124300 WasherWasher
-
42517302841 GrommetGrommet
-
44517303612 RH Panel LatchRH Panel Latch
-
55517303756 GrommetGrommet
-
56517303808 LH Panel LatchLH Panel Latch
-
68517304518 Console NutConsole Nut
-
69219800269 BulbBulb
-
71517304794 HeadlampHeadlamp
-
72517304796 Center HoodCenter Hood
-
73517304797 Rear Console. Yellow ModelRear Console. Yellow Model
-
73517305181 Rear Console. Summit ModelRear Console. Summit Model
-
73517305181 Rear Console. Black ModelRear Console. Black Model
-
74517304798 Indicator SupportIndicator Support
-
82517304805 LH Flashing PanelLH Flashing Panel
-
83517304910 RH Hood. Yellow ModelRH Hood. Yellow Model
-
83517305229 RH Hood. Orange ModelRH Hood. Orange Model
-
83517305239 RH Hood. Black ModelRH Hood. Black Model
-
84517304911 LH Hood. Yellow ModelLH Hood. Yellow Model
-
84517305230 LH Hood. Orange ModelLH Hood. Orange Model
-
84517305240 LH Hood. Black ModelLH Hood. Black Model
-
85517304912 Upper Storage Access CoverUpper Storage Access Cover
-
86517304917 Cover LatchCover Latch
-
88517304921 Windshield 235mmWindshield 235mm
-
89517304922 Short Windshield SupportShort Windshield Support
-
90517304923 RH Air Deflector ConsoleRH Air Deflector Console
-
91517304924 LH Air Deflector ConsoleLH Air Deflector Console
-
96517305140 RH Panel Vent GridRH Panel Vent Grid
-
97517304970 Console SupportConsole Support
-
98517305002 RH Panel. Summit Manual StarterRH Panel. Summit Manual Starter
-
98517305099 RH Panel. Summit Electric StarterRH Panel. Summit Electric Starter
-
99517305003 LH Panel. Summit ModelLH Panel. Summit Model
-
106517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
112517304802 RH Panel Trim. Electric Starter ModeleRH Panel Trim. Electric Starter Modele
-
112517305058 RH Panel Trim. Manual Starter ModelRH Panel Trim. Manual Starter Model
-
114517305060 RH ConsoleRH Console
-
118517305086 LH Upper Panel FoamLH Upper Panel Foam
-
119517305087 LH Center Panel FoamLH Center Panel Foam
-
120517305088 LH Lower Panel FoamLH Lower Panel Foam
-
121517305089 LH Rear Panel FoamLH Rear Panel Foam
-
122517305090 RH Rear Hood FoamRH Rear Hood Foam
-
123517305091 LH Rear Hood FoamLH Rear Hood Foam
-
126517305095 TrunkTrunk
-
128517305102 Indicator SupportIndicator Support
-
130517305109 Rivet PlateRivet Plate
-
132517305111 PinPin
-
138517305137 RH Hood Filler PlateRH Hood Filler Plate
-
139517305138 LH Hood Filler PlateLH Hood Filler Plate
-
140517305140 RH Panel Vent GridRH Panel Vent Grid
-
141517305128 LH Front ConsoleLH Front Console
-
142517305144 RH Retaining Panel Clip Ass'yRH Retaining Panel Clip Ass'y
-
143517305145 LH Retaining Panel Clip Ass'yLH Retaining Panel Clip Ass'y
-
144517305147 Support Console CapSupport Console Cap
-
145517305148 Support Console CapSupport Console Cap
-
146517305157 Seal JointSeal Joint
-
151517305082 RH Upper Panel FoamRH Upper Panel Foam
-
151517305196 RH Upper Panel FoamRH Upper Panel Foam
-
152517305197 RH Center Panel FoamRH Center Panel Foam
-
153517305198 RH Lower Panel FoamRH Lower Panel Foam
-
154517305085 RH Rear Panel FoamRH Rear Panel Foam
-
159517305222 RH Front ConsoleRH Front Console
-
160517305279 Panel LatchPanel Latch
-
170732610072 Push NutPush Nut
-
69a219400070 CapCap
