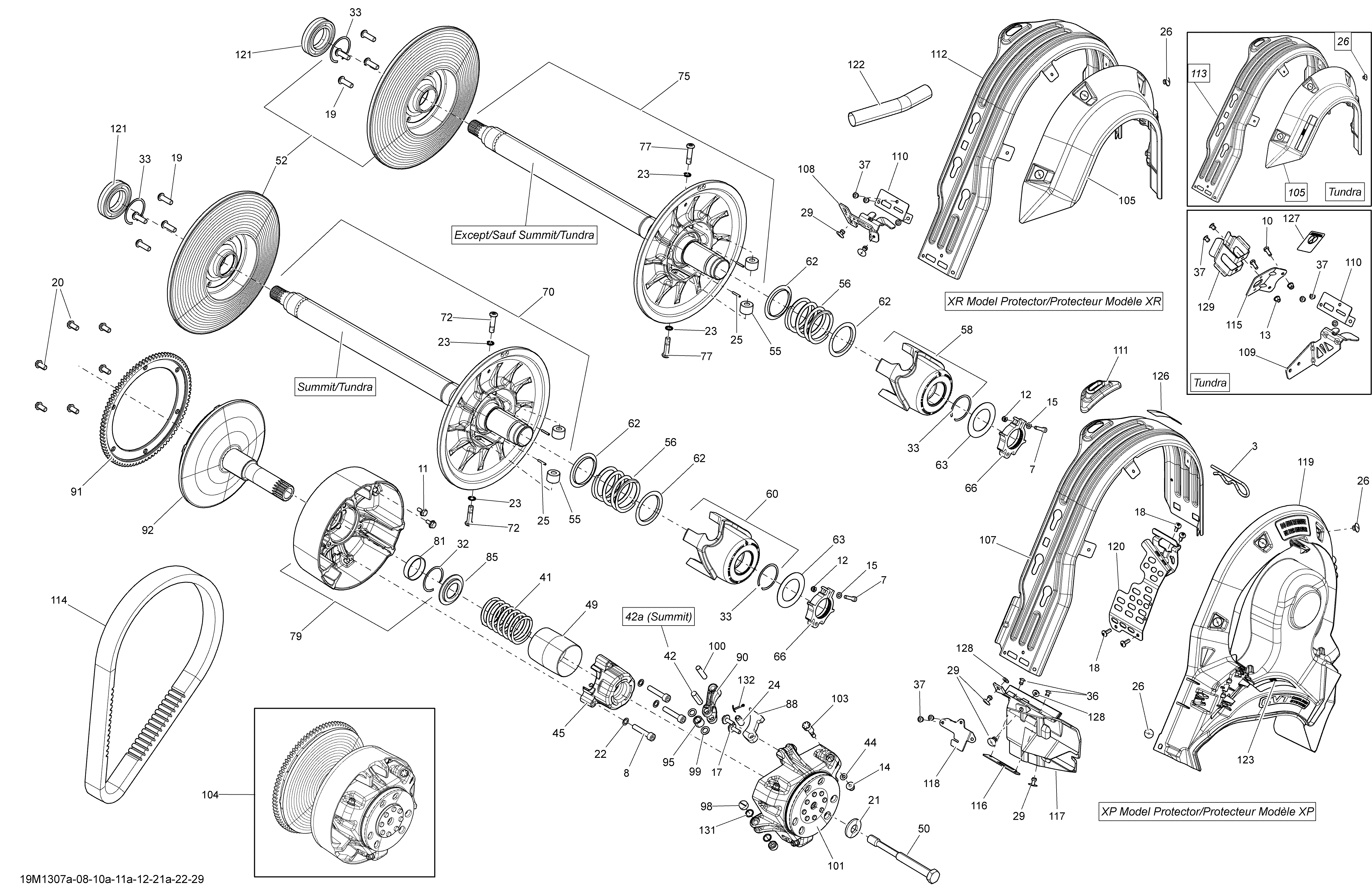

05- Pulley System для BRP Ski-Doo TUNDRA XTREME 600HOE XP - 2013
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
7205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
8205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
11250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
12232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15234051410 Flat Washer M5Flat Washer M5
-
17250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
18250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
19250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
20250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
21250200006 Spring Washer 14 mmSpring Washer 14 mm
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23250200009 Lock Washer 8 mmLock Washer 8 mm
-
24250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
25250400061 Spring Pin M3 X 18Spring Pin M3 X 18
-
26293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
32293370037 CirclipCirclip
-
33293370049 CirclipCirclip
-
36390909100 Avex RivetAvex Rivet
-
37390909200 Avex RivetAvex Rivet
-
41414817700 Spring, Blue/green. Tundra EuropeSpring, Blue/green. Tundra Europe
-
41415015200 Spring (Red/Orange). TundraSpring (Red/Orange). Tundra
-
42417222477 Threaded Pin. Summit, TundraThreaded Pin. Summit, Tundra
-
44417005600 WasherWasher
-
45417007500 Spring Cover Ass'ySpring Cover Ass'y
-
49417009205 GuardGuard
-
50417120000 Drive Pulley BoltDrive Pulley Bolt
-
52417126955 Sliding Flange Ass'ySliding Flange Ass'y
-
55417127016 RollerRoller
-
56417127039 Spring. Summit, Tundra EuropeSpring. Summit, Tundra Europe
-
58417127083 Cam Ass'yCam Ass'y
-
60417127105 Cam Ass'y. Tundra EuropeCam Ass'y. Tundra Europe
-
60417126973 Cam Ass'y. TundraCam Ass'y. Tundra
-
62417127116 Swivel AbutmentSwivel Abutment
-
63417127155 WasherWasher
-
66415129604 Calibration Ass'yCalibration Ass'y
-
70417127303 Fix Flange Ass'y. Summit, TundraFix Flange Ass'y. Summit, Tundra
-
72417127294 Pivot Stud. Summit, TundraPivot Stud. Summit, Tundra
-
79417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
81417222758 BushingBushing
-
85417222312 Spring SeatSpring Seat
-
88417222552 Ramp 417. TundraRamp 417. Tundra
-
90417222671 LeverLever
-
91417223042 Ring GearRing Gear
-
92417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
95417222947 RollerRoller
-
98417223271 Slider Shoe. Summit, TundraSlider Shoe. Summit, Tundra
-
99417004302 Stopper WasherStopper Washer
-
100417223164 Lever AxleLever Axle
-
101417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
103417223501 Calibration ScrewCalibration Screw
-
105417300356 Side ProtectorSide Protector
-
109417300374 Front Belt Guard Bracket. TundraFront Belt Guard Bracket. Tundra
-
110417300380 Reinforcement. XR, TundraReinforcement. XR, Tundra
-
111417300381 GuideGuide
-
113417300382 Belt Guard. TundraBelt Guard. Tundra
-
114417300383 Drive BeltDrive Belt
-
115417300406 Plate. TundraPlate. Tundra
-
120417300448 Belt Guard BracketBelt Guard Bracket
-
121504152574 Ball BearingBall Bearing
-
123516005503 Decal, EnglishDecal, English
-
126516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
127516004592 English Belt Decal. TundraEnglish Belt Decal. Tundra
-
128517225900 Flat WasherFlat Washer
-
129517281905 Bracket. TundraBracket. Tundra
-
131732401030 O-RingO-Ring
-
132250400060 Cotter PinCotter Pin
-
42a250000410 Socket Set Screw M6 X 16. Summit, TundraSocket Set Screw M6 X 16. Summit, Tundra
