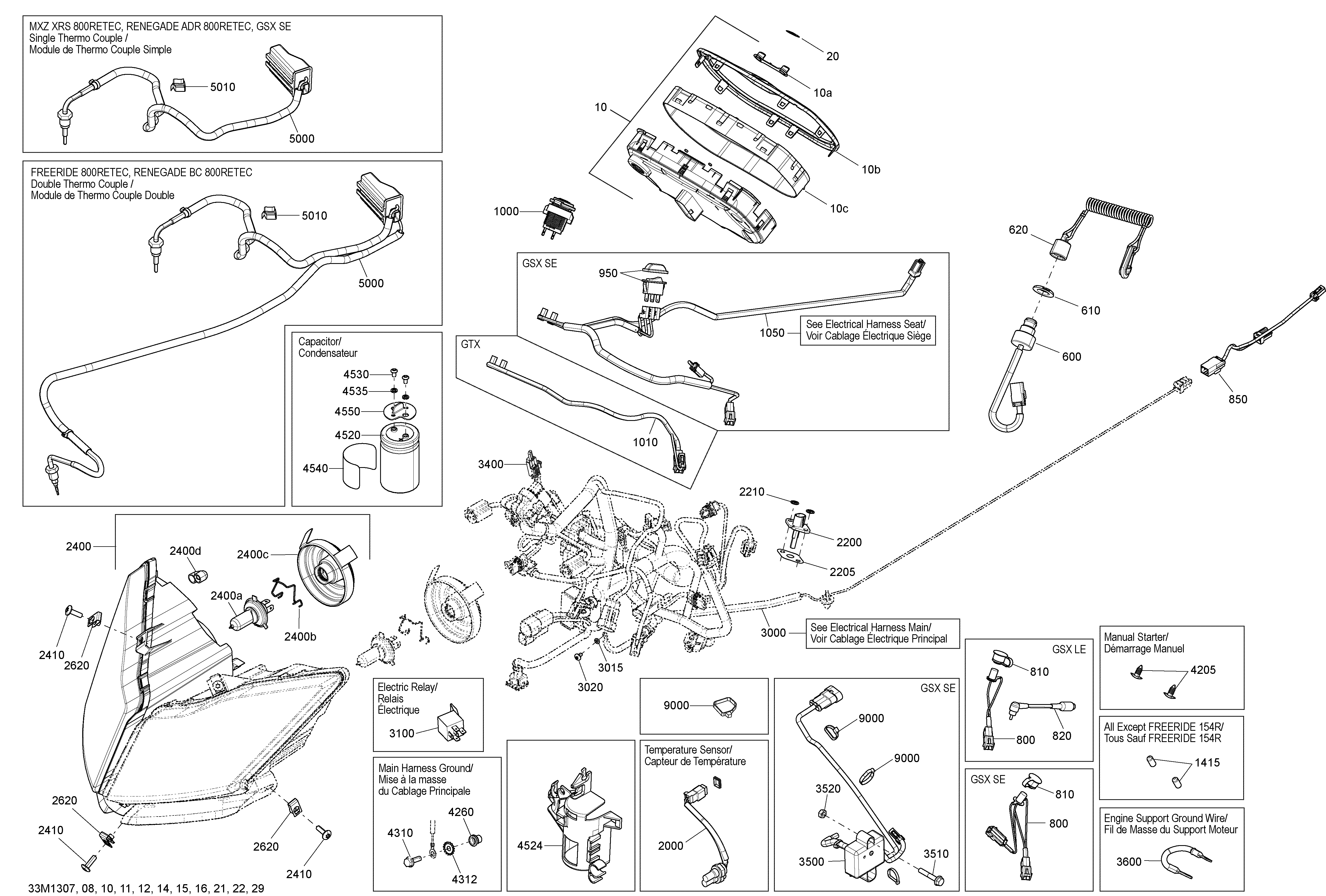

10- Electrical System для BRP Ski-Doo TUNDRA XTREME 600HOE XP - 2013
-
№АртикулНазвание
-
10515177115 Speedometer. TUNDRASpeedometer. TUNDRA
-
10a415129355 Speedometer Button. TUNDRASpeedometer Button. TUNDRA
-
10b415129370 Gauge Ring. TUNDRAGauge Ring. TUNDRA
-
10c415129349 Lens. TUNDRALens. TUNDRA
-
20219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
600515177249 DESS SwitchDESS Switch
-
610278000508 Safety Switch NutSafety Switch Nut
-
620515177057 DESS CapDESS Cap
-
1415515176141 CapCap
-
2000515177471 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2205508000769 SealSeal
-
2210389804300 Push NutPush Nut
-
2400517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
2400517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
2400a515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c515176499 CoverCover
-
2400d515176498 CapCap
-
2410250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2420250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
3000515177382 Frame Harness. 600HOEFrame Harness. 600HOE
-
3100515177041 Relay. Electric StarterRelay. Electric Starter
-
3600515177289 Fil de MasseFil de Masse
-
4260415107300 InsertInsert
-
4310207662044 Hex. Flanged Screw M6 X 20. Electric StarterHex. Flanged Screw M6 X 20. Electric Starter
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4312250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4520515177272 CapacitorCapacitor
-
4524515176607 Capacitor SupportCapacitor Support
-
4530250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
4535250200026 Lock washerLock washer
-
4540516005515 Capacitor Decal (English)Capacitor Decal (English)
-
4550515177193 CapCap
-
9000293750001 Tie-Rap 94 mm. Electric StarterTie-Rap 94 mm. Electric Starter
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9000293750009 Tie-Rap 173 mm. Electric StarterTie-Rap 173 mm. Electric Starter
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
