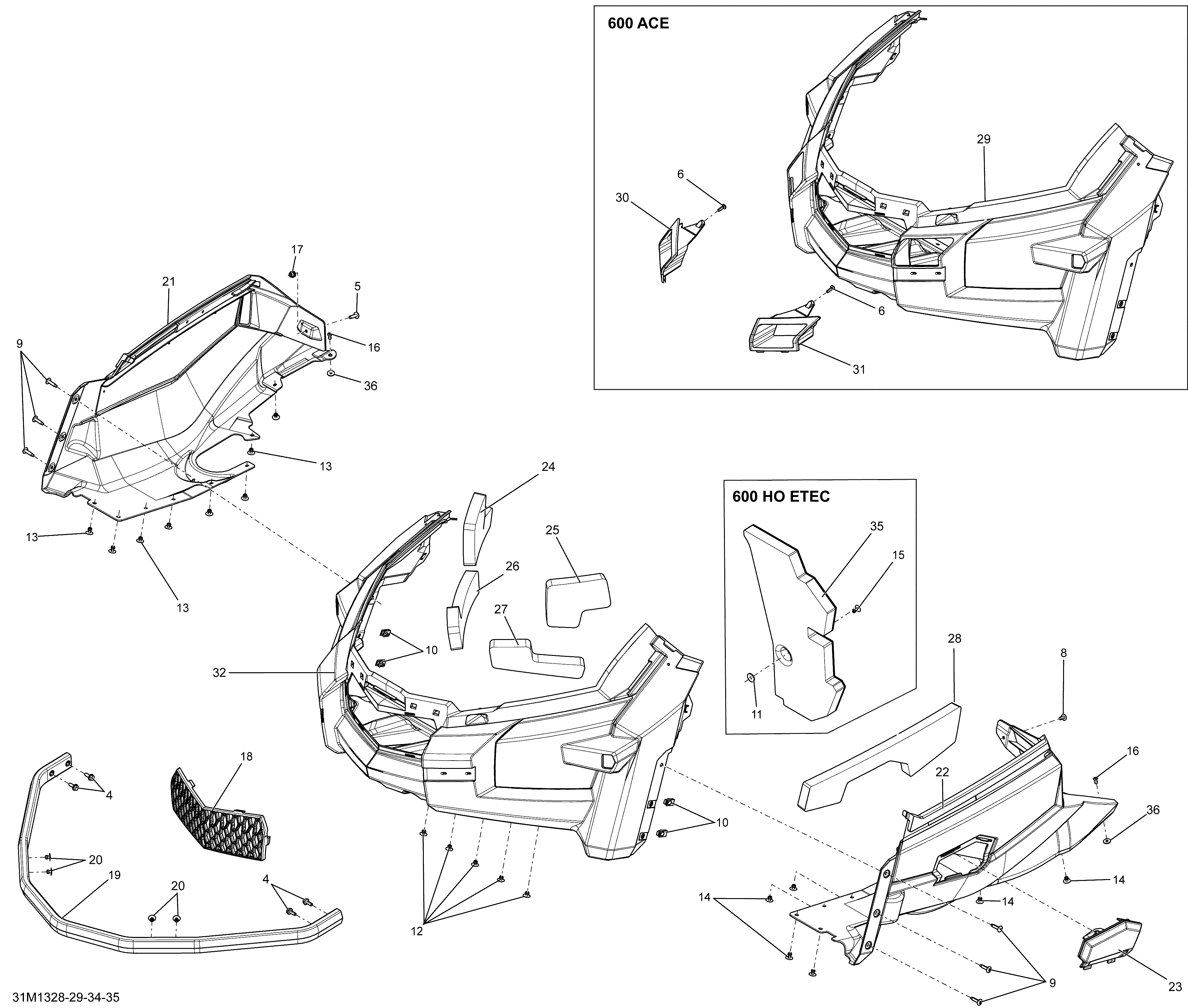

09- Bottom Pan для BRP Ski-Doo TUNDRA XTREME 600HOE XP - 2013
-
№АртикулНазвание
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
9250000618 Torx Screw M6 X 25Torx Screw M6 X 25
-
10250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
11250200016 WasherWasher
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17415107300 InsertInsert
-
18502006887 Botton Pan GrillBotton Pan Grill
-
19502007121 Front BumperFront Bumper
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21502006965 RH Bottom PanRH Bottom Pan
-
22502006966 LH Bottom PanLH Bottom Pan
-
23502006970 Bottom Pan DoorBottom Pan Door
-
24502007204 RH Upper Bottom Pan FoamRH Upper Bottom Pan Foam
-
25502007205 LH Upper Bottom Pan FoamLH Upper Bottom Pan Foam
-
26502007206 RH Lower Bottom Pan FoamRH Lower Bottom Pan Foam
-
27502007207 LH Lower Bottom Pan FoamLH Lower Bottom Pan Foam
-
28502007208 LH Bottom Pan FoamLH Bottom Pan Foam
-
32502007149 Front Bottom PanFront Bottom Pan
-
35502007209 Foam On PlateFoam On Plate
-
36517124300 WasherWasher
