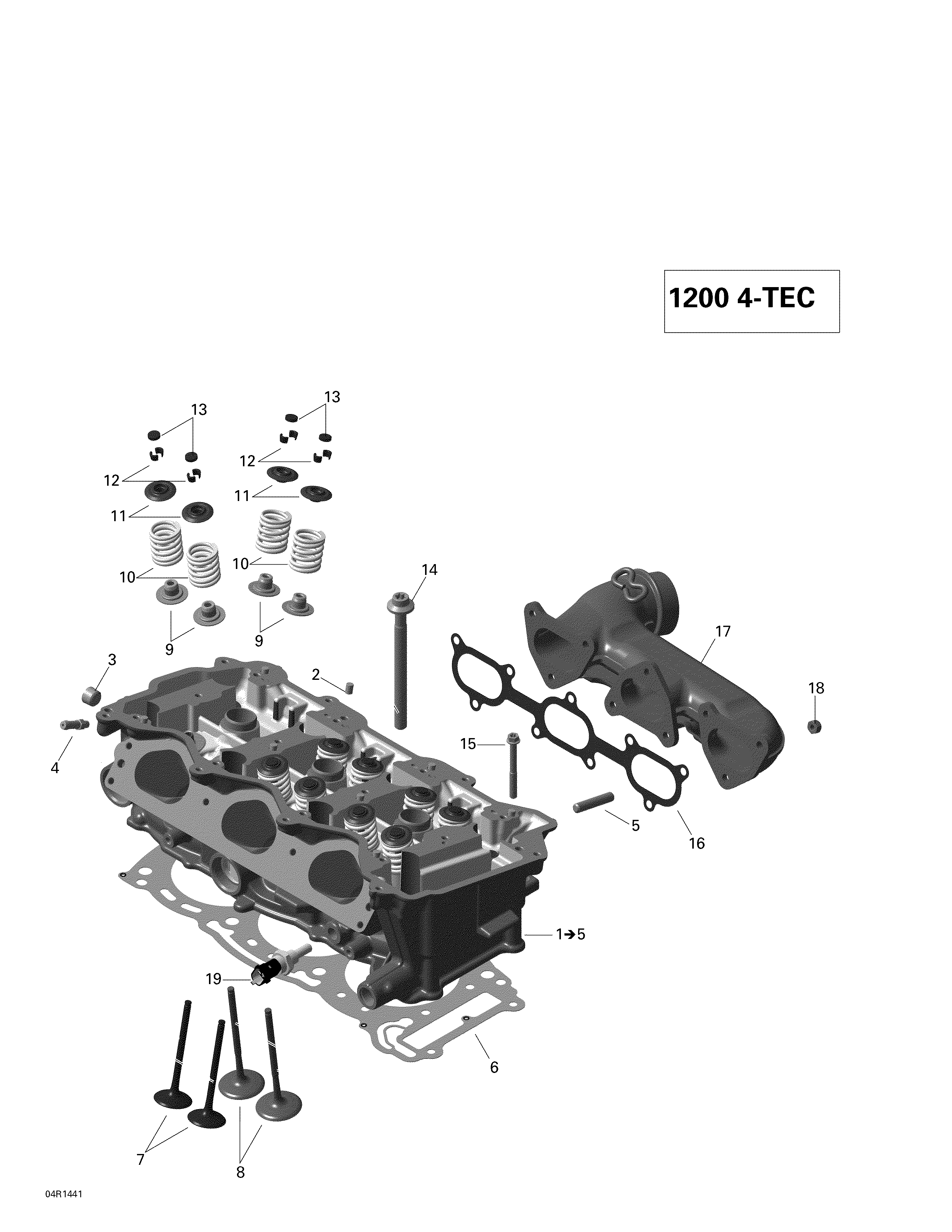

01- Cylinder And Exhaust Manifold для BRP Ski-Doo EXPEDITION LE 1200 XU - 2014
-
№АртикулНазвание
-
1420623416 Cylindre Head Ass'y. Includes 1 to 5Cylindre Head Ass'y. Includes 1 to 5
-
2420232210 Center PinCenter Pin
-
3420840203 Screw Plug 1/4''Screw Plug 1/4''
-
4420924724 Hose NippleHose Nipple
-
5420840491 Stud M6 X 14/15Stud M6 X 14/15
-
6420431051 Cylinder Head GasketCylinder Head Gasket
-
7420855013 Intake Valve, 37.3 mmIntake Valve, 37.3 mm
-
8420855023 Exhaust Valve, 31 mmExhaust Valve, 31 mm
-
9420430740 Valve Stem SealValve Stem Seal
-
10420238460 Valve SpringValve Spring
-
11420254822 Valve Spring RetainerValve Spring Retainer
-
12420254600 Cotter ValveCotter Valve
-
13420253970 Shim 2.1Shim 2.1
-
13420253971 Shim 2.15Shim 2.15
-
13420253972 Shim 2.2Shim 2.2
-
13420253973 Shim 2.25Shim 2.25
-
13420253974 Shim 2.3Shim 2.3
-
13420253975 Shim 2.35Shim 2.35
-
13420253976 Shim 2.4Shim 2.4
-
13420253977 Shim 2.45Shim 2.45
-
13420253978 Shim 2.5Shim 2.5
-
13420253979 Shim 2.55Shim 2.55
-
13420253980 Shim 2.6Shim 2.6
-
13420253981 Shim 2.65Shim 2.65
-
13420253982 Shim 2.7Shim 2.7
-
13420253983 Shim 2.75Shim 2.75
-
13420253984 Shim 2.8Shim 2.8
-
13420253985 Shim 2.85Shim 2.85
-
13420253986 Shim 2.9Shim 2.9
-
13420253987 Shim 2.95Shim 2.95
-
13420254030 Shim 2.325Shim 2.325
-
13420254031 Shim 2.375Shim 2.375
-
13420254032 Shim 2.425Shim 2.425
-
13420254033 Shim 2.475Shim 2.475
-
13420254034 Shim 2.525Shim 2.525
-
13420254035 Shim 2.575Shim 2.575
-
13420254036 Shim 2.625Shim 2.625
-
13420254037 Shim 2.675Shim 2.675
-
13420254038 Shim 2.725Shim 2.725
-
13420254039 Shim 2.775Shim 2.775
-
13420254040 Shim 2.825Shim 2.825
-
13420254041 Shim 2.875Shim 2.875
-
13420254042 Shim 2.925Shim 2.925
-
13420254043 Shim 2.975Shim 2.975
-
14420840250 Torx Screw M10 X 121Torx Screw M10 X 121
-
15420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
16420431390 GasketGasket
-
17420673392 Exhaust ManifoldExhaust Manifold
-
18420942046 Lock Nut M6-10Lock Nut M6-10
-
19278002895 Temperature sensorTemperature sensor
