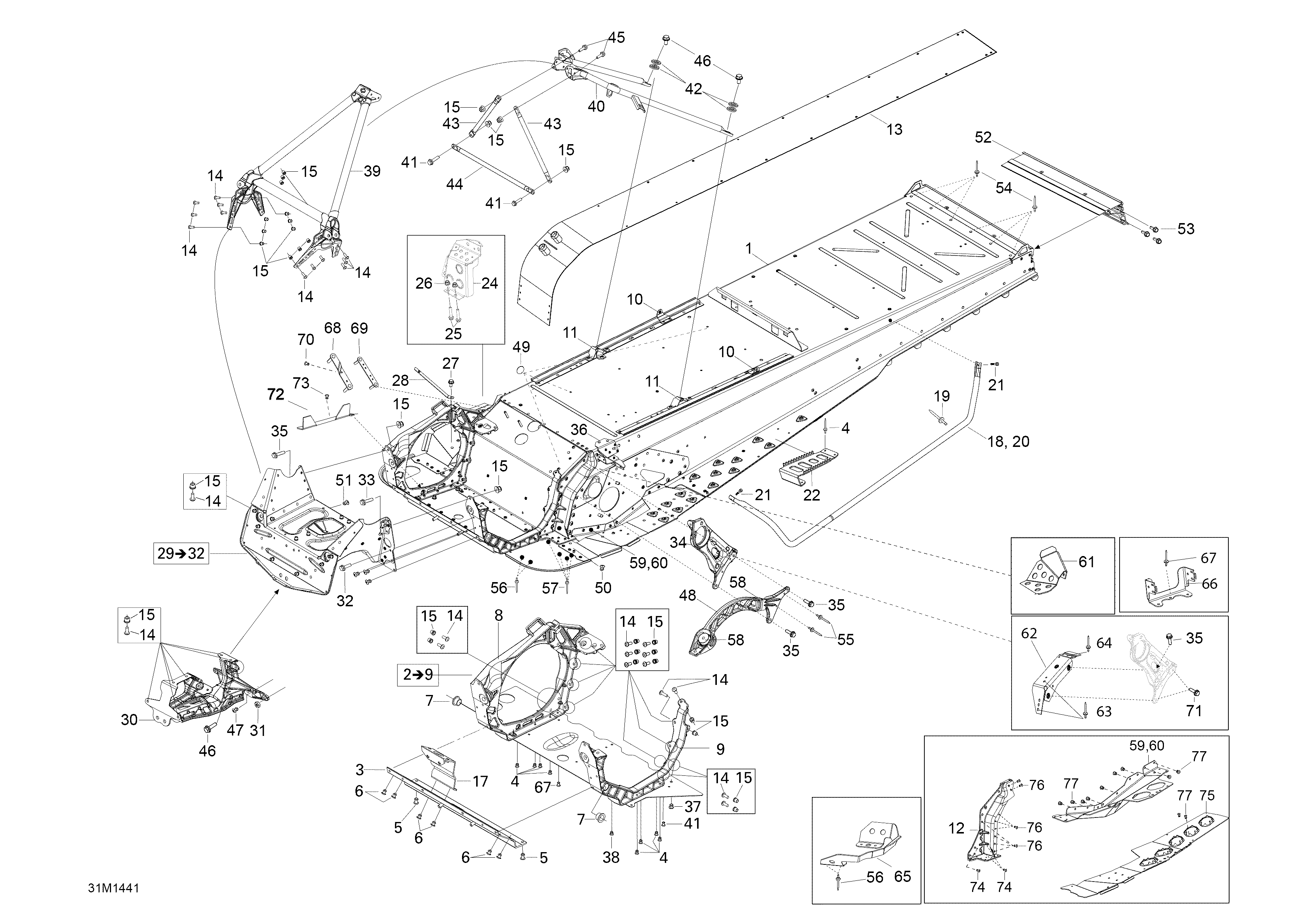

09- Frame для BRP Ski-Doo EXPEDITION LE 1200 XU - 2014
-
№АртикулНазвание
-
1518327675 Frame XU 4-TEC SC-5Frame XU 4-TEC SC-5
-
2518326720 E ModuleE Module
-
3518326198 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 Leg CushionLeg Cushion
-
8518326328 RH Side MemberRH Side Member
-
9518326330 LH Side MemberLH Side Member
-
10518325987 Seat Box BracketSeat Box Bracket
-
11518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
11518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
12518325524 Frame Corner LHFrame Corner LH
-
12518325526 Frame Corner RHFrame Corner RH
-
13509000867 Radiator TunnelRadiator Tunnel
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17518325371 MAG Engine SupportMAG Engine Support
-
18518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
19390909100 Avex RivetAvex Rivet
-
20518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
21207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
22520000492 FootrestFootrest
-
24518326464 Toe Hook LHToe Hook LH
-
24518326465 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27390909200 Avex RivetAvex Rivet
-
28514054616 Spring BracketSpring Bracket
-
29518327546 ''S'' Module''S'' Module
-
30518327475 Front Suspension SupportFront Suspension Support
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
32210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
33250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
34518327644 Pulley SupportPulley Support
-
35207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
36605355235 Fastening BracketFastening Bracket
-
37293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
38293150144 Stavex RivetStavex Rivet
-
39518326970 Front MemberFront Member
-
40518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
41207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
43518325114 Upper Column SupportUpper Column Support
-
44518326657 Center Column SupportCenter Column Support
-
45250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
46207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
47293150147 Hemlock RivetHemlock Rivet
-
48518327392 Brace Ass'yBrace Ass'y
-
49518325560 Adhesive PatchAdhesive Patch
-
50414644300 DartDart
-
51293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
52518327194 Rear ProfileRear Profile
-
53250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
54293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
55M36087 RivetRivet
-
56293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
57390909200 Avex RivetAvex Rivet
-
58512060295 Rubber MountRubber Mount
-
61518325626 Brake Hose CoverBrake Hose Cover
-
62518326430 Clinch nut plateClinch nut plate
-
63390909100 Avex RivetAvex Rivet
-
65518326566 Pulley Cover PlatePulley Cover Plate
-
66515177073 Fusebox SupportFusebox Support
-
67390909200 Avex RivetAvex Rivet
-
68518326123 Gearbox Front PlateGearbox Front Plate
-
69518326124 Gearbox Rear PlateGearbox Rear Plate
-
70390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
71207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
72518327448 Muffler Support PlateMuffler Support Plate
-
73293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
74293150183 RivetRivet
-
75518326895 Footrest LHFootrest LH
-
75518326896 Footrest RHFootrest RH
-
76390909100 Avex RivetAvex Rivet
-
77293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
