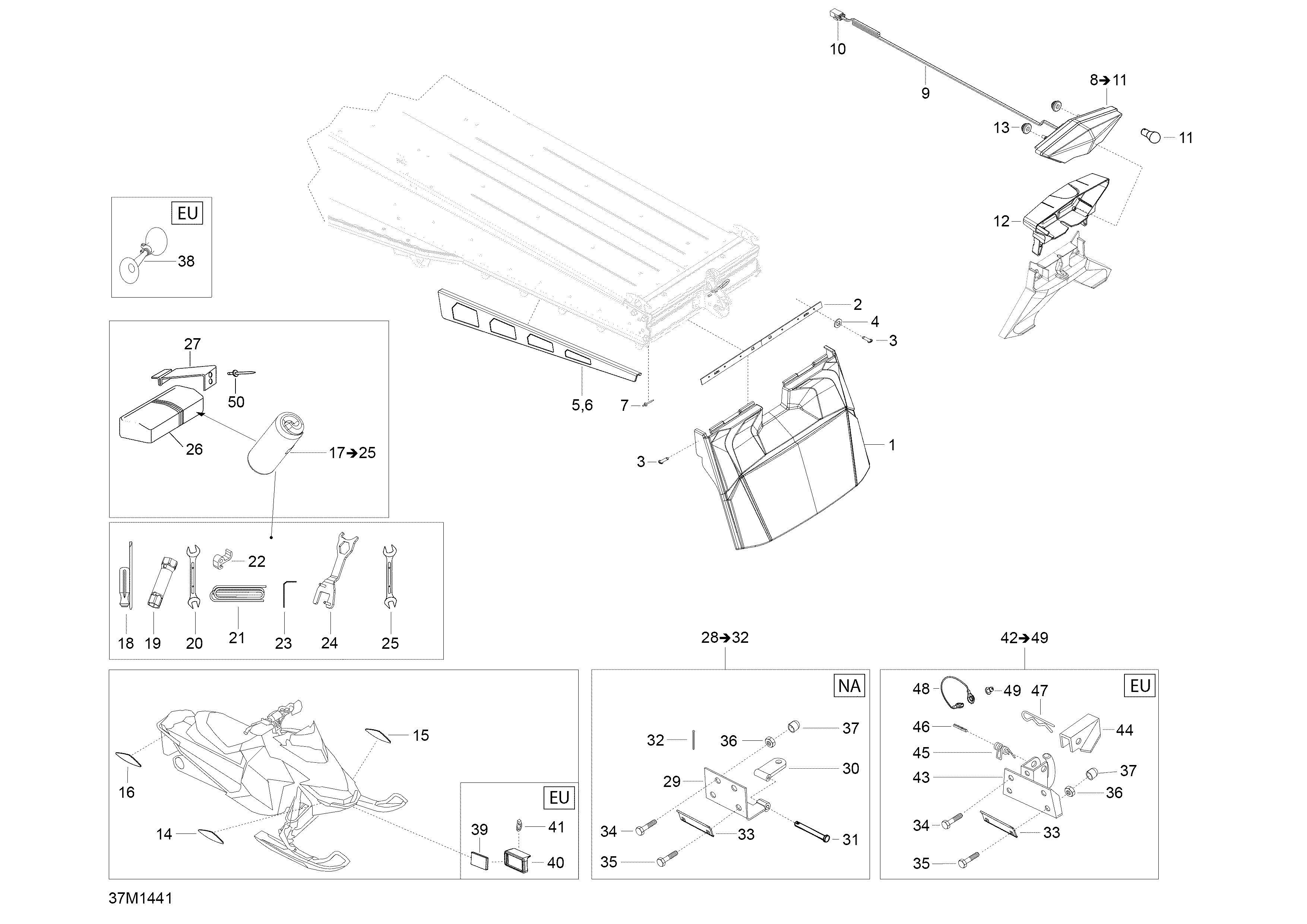

09- Utilities для BRP Ski-Doo EXPEDITION LE 1200 XU - 2014
-
№АртикулНазвание
-
1520001406 Snow Guard. Model- North AmericaSnow Guard. Model- North America
-
1520001410 Snow Guard. Model- EUROPESnow Guard. Model- EUROPE
-
2520001021 PlatePlate
-
3732600030 ScrewScrew
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
6520000694 LH ProtectorLH Protector
-
7293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
8520000848 Rear LightRear Light
-
9520000849 Rear Wiring HarnessRear Wiring Harness
-
10515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
11520000758 BulbBulb
-
12511000764 Rear Light CoverRear Light Cover
-
13705003666 Rubber GrommetRubber Grommet
-
14520000843 Yellow RH ReflectorYellow RH Reflector
-
15520000844 Yellow LH ReflectorYellow LH Reflector
-
16705003412 Red Lateral Reflector. Model- North AmericaRed Lateral Reflector. Model- North America
-
16705002423 Amber Lateral Reflector. Model- EUROPEAmber Lateral Reflector. Model- EUROPE
-
17529000066 Tool KitTool Kit
-
18529000004 Screw DriverScrew Driver
-
19529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
20529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
23520001142 Spacing ToolSpacing Tool
-
24520000988 Wrench SuspensionWrench Suspension
-
25M34017 WrenchWrench
-
26M5346728 Spring PlateSpring Plate
-
28M5344152 Hitch Ass'y. Model- North AmericaHitch Ass'y. Model- North America
-
29M5344151 Plate. Model- North AmericaPlate. Model- North America
-
30M548745 Hitch Plate. Model- North AmericaHitch Plate. Model- North America
-
31560309200 Pin-Retainer. Model- North AmericaPin-Retainer. Model- North America
-
32M41031 Pin. Model- North AmericaPin. Model- North America
-
33520000727 PlatePlate
-
34207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
35207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
36233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37M28056 CapCap
-
38549011291 Horn. Model- EUROPEHorn. Model- EUROPE
-
39M21118 White Reflector. Model- EUROPEWhite Reflector. Model- EUROPE
-
40520000871 Reflector Support. Model- EUROPEReflector Support. Model- EUROPE
-
41M27120 Tie Rap 2.4x200. Model- EUROPETie Rap 2.4x200. Model- EUROPE
-
42520001039 Hitch Ass'y. Model- EUROPEHitch Ass'y. Model- EUROPE
-
44520001041 Locking Plate. Model- EUROPELocking Plate. Model- EUROPE
-
45M545693 Spring. Model- EUROPESpring. Model- EUROPE
-
46M41012 Retainer Pin. Model- EUROPERetainer Pin. Model- EUROPE
-
47M41029 Pin. Model- EUROPEPin. Model- EUROPE
-
48M5446839 Retainer Cable. Model- EUROPERetainer Cable. Model- EUROPE
-
49390909100 Avex Rivet. Model- EUROPEAvex Rivet. Model- EUROPE
-
50M36108 RivetRivet
