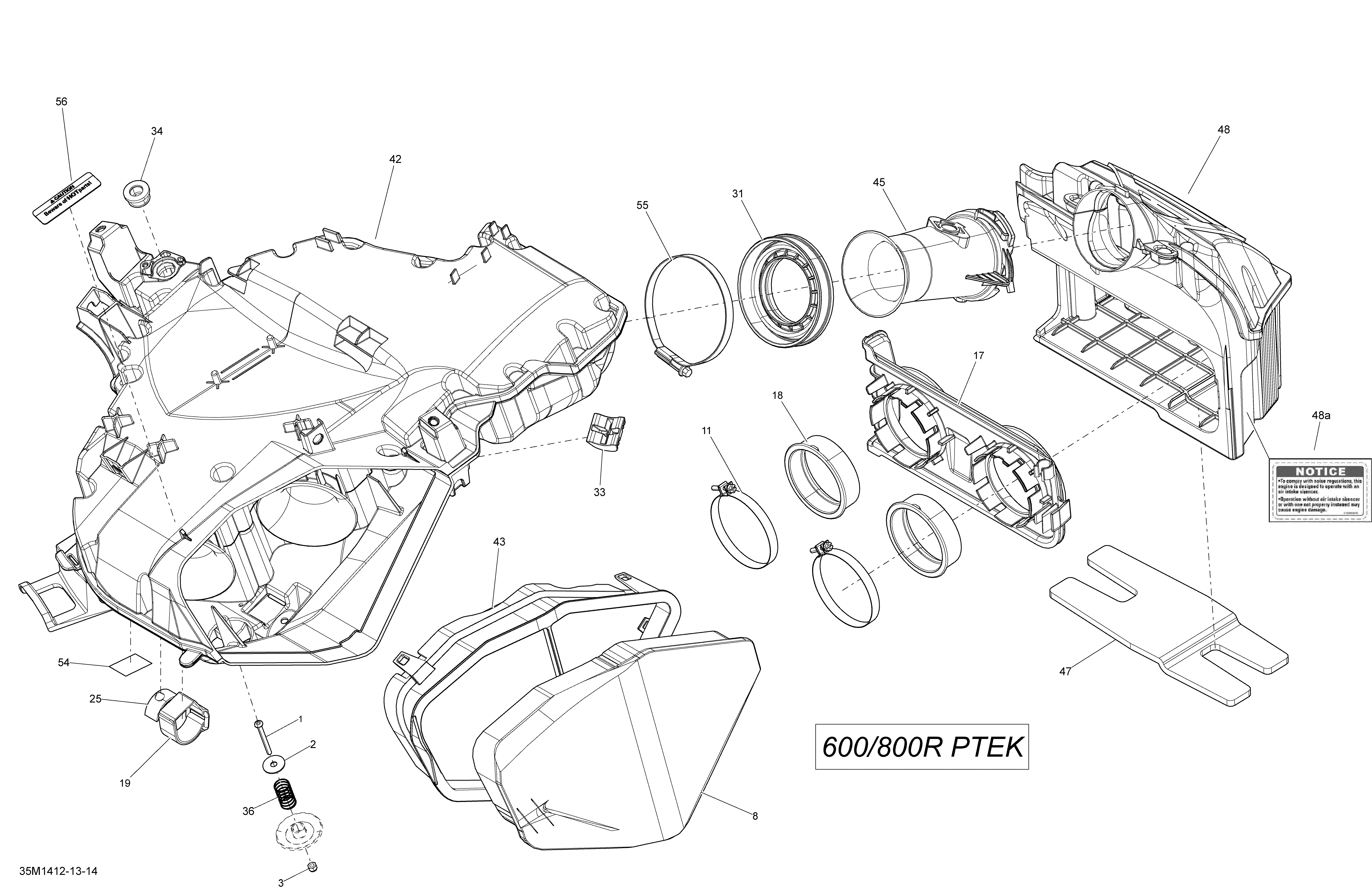

02- Air Intake System для BRP Ski-Doo GRAND TOURING SPORT 600 XP - 2014
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
2224060201 Flat WasherFlat Washer
-
3232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
4293300115 O-RingO-Ring
-
11508000346 Gemi ClampGemi Clamp
-
17508000500 Plate AdapterPlate Adapter
-
18508000501 Air Intake AdapterAir Intake Adapter
-
19508000532 Velcro StripVelcro Strip
-
25508000537 StopperStopper
-
31508000567 BootBoot
-
33508000572 BumperBumper
-
34508000574 GrommetGrommet
-
36508000576 SpringSpring
-
42508000624 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
43508000626 Air FilterAir Filter
-
45508000661 FluteFlute
-
47508000674 Insulated FoamInsulated Foam
-
48508000680 Primary Chamber Ass'yPrimary Chamber Ass'y
-
54509000688 Reflective SheetReflective Sheet
-
55514052924 Norma ClampNorma Clamp
-
56516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
48a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
