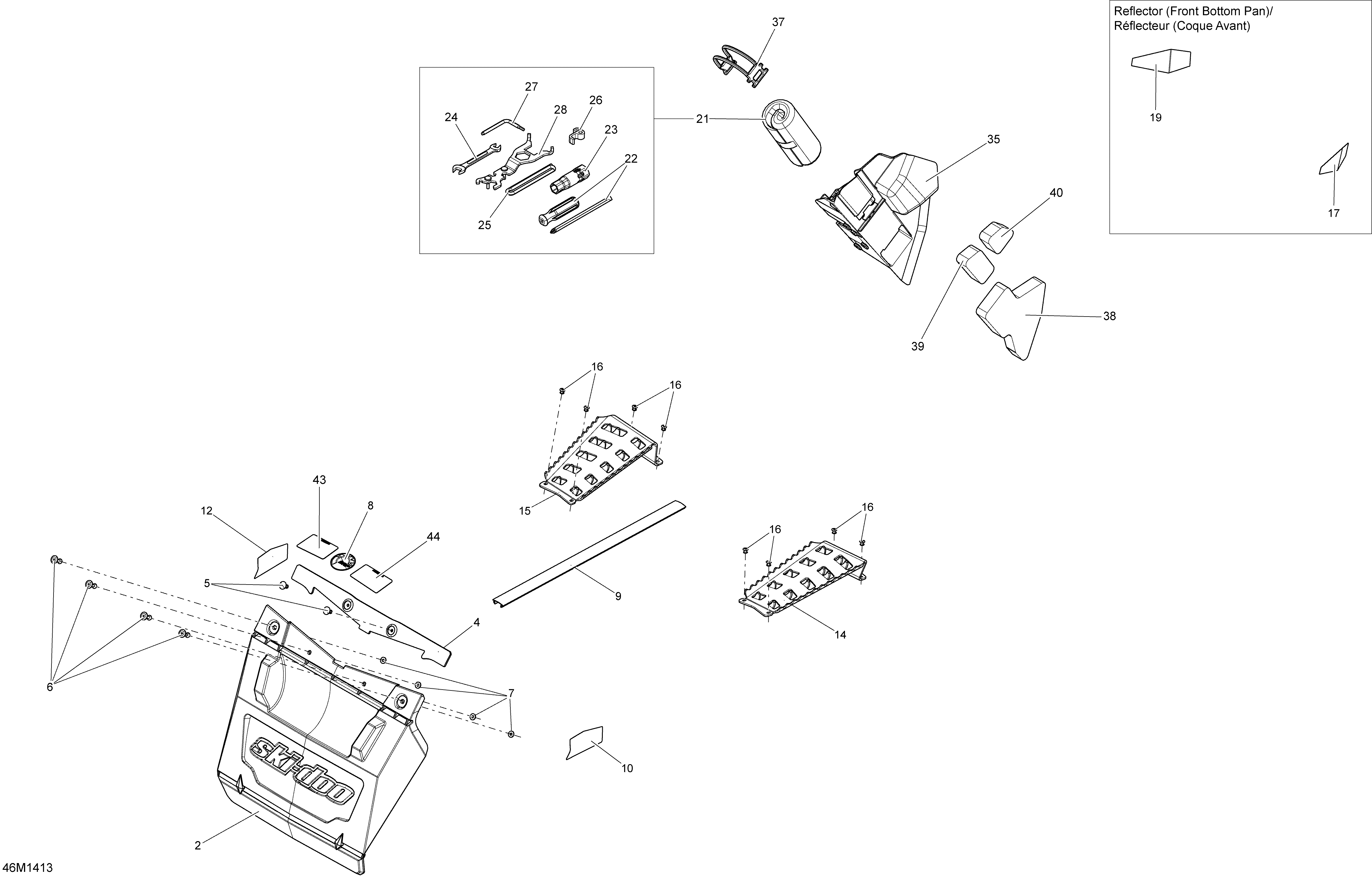

09- Utilities для BRP Ski-Doo GRAND TOURING SPORT 600 XP - 2014
-
№АртикулНазвание
-
2520000659 Snow GuardSnow Guard
-
4520000953 Esthetic PlateEsthetic Plate
-
5293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517124300 WasherWasher
-
8219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
9520000829 Radiator TrimRadiator Trim
-
10520000881 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
12520000880 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
14520000887 RH FootrestRH Footrest
-
15520000888 LH FootrestLH Footrest
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17520000718 Yellow RH Front ReflectorYellow RH Front Reflector
-
19520000719 Yellow LH Front ReflectorYellow LH Front Reflector
-
21529000065 Tool Kit. Includes 21 to 28Tool Kit. Includes 21 to 28
-
22529000004 Screw DriverScrew Driver
-
23529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
24529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
25412500200 Starter Rope, MeterStarter Rope, Meter
-
26529000060 Starter GripStarter Grip
-
27520001142 Spacing ToolSpacing Tool
-
28520000988 Wrench SuspensionWrench Suspension
-
35520000842 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
38520001059 FoamFoam
-
39520001061 FoamFoam
-
40520001062 FoamFoam
-
43516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
44516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
