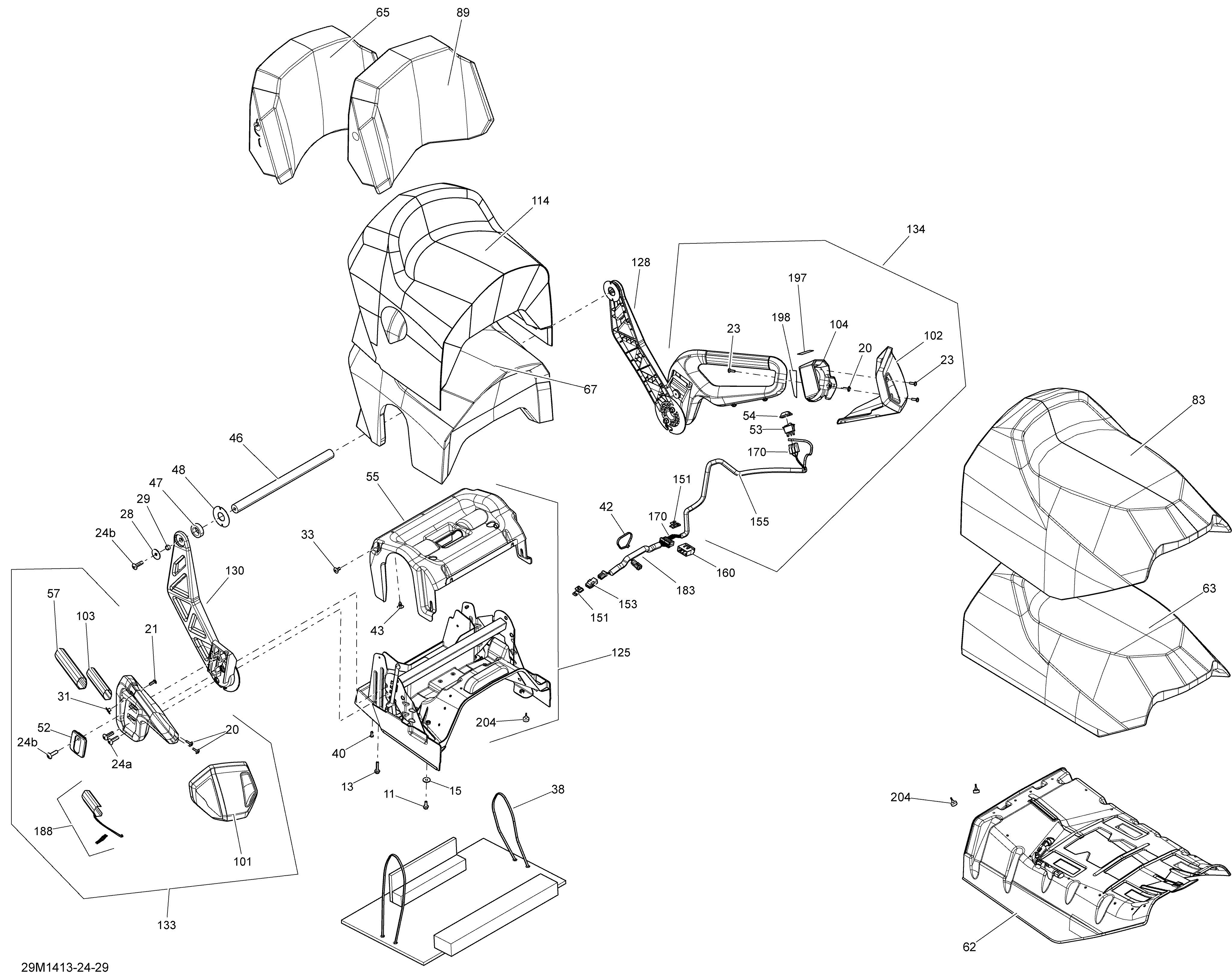

09- Seat для BRP Ski-Doo GRAND TOURING SPORT 600 XP - 2014
-
№АртикулНазвание
-
11207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
13207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
15224061201 Flat WasherFlat Washer
-
20250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
21250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
23250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
28250200128 Flat Washer 8 mmFlat Washer 8 mm
-
29271000558 SpacerSpacer
-
31293100003 Nut M6Nut M6
-
33390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43414644300 DartDart
-
46510004377 Upper Backrest AxleUpper Backrest Axle
-
47510004378 Rubber ShimRubber Shim
-
48510004379 WasherWasher
-
52510004405 MouldingMoulding
-
53510004413 Rocker SwitchRocker Switch
-
54510004414 Switch ProtectorSwitch Protector
-
55510004423 Foam SupportFoam Support
-
57510004449 Handle GripHandle Grip
-
62510004775 Front Seat BaseFront Seat Base
-
63510004777 Front Seat FoamFront Seat Foam
-
65510004782 Backrest FoamBackrest Foam
-
67510004791 Rear Seat FoamRear Seat Foam
-
83510005181 Seat CoverSeat Cover
-
89510005309 Backrest CoverBackrest Cover
-
101510005009 RH Air DeflectorRH Air Deflector
-
102510005010 LH Air DeflectorLH Air Deflector
-
103510005814 Reinforcement HandleReinforcement Handle
-
104510005036 Housing SwitchHousing Switch
-
114510005399 Rear Seat CoverRear Seat Cover
-
125510005535 Seat Base Ass'ySeat Base Ass'y
-
128510005538 LH Arm, BlackLH Arm, Black
-
130510005539 RH Arm, BlackRH Arm, Black
-
133510005848 RH Handle Ass'yRH Handle Ass'y
-
134510005847 LH Handle Ass'yLH Handle Ass'y
-
151515175283 Housing SupportHousing Support
-
153515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
155515175506 TubingTubing
-
160515176033 Male ConnectorMale Connector
-
170515176697 Handle HarnessHandle Harness
-
183515176766 Seat HarnessSeat Harness
-
188515176999 Heated ElementHeated Element
-
197516003816 Heated Handle DecalHeated Handle Decal
-
198516003937 Connector DecalConnector Decal
-
204708000759 Rubber StopperRubber Stopper
-
24a250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
24b250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
