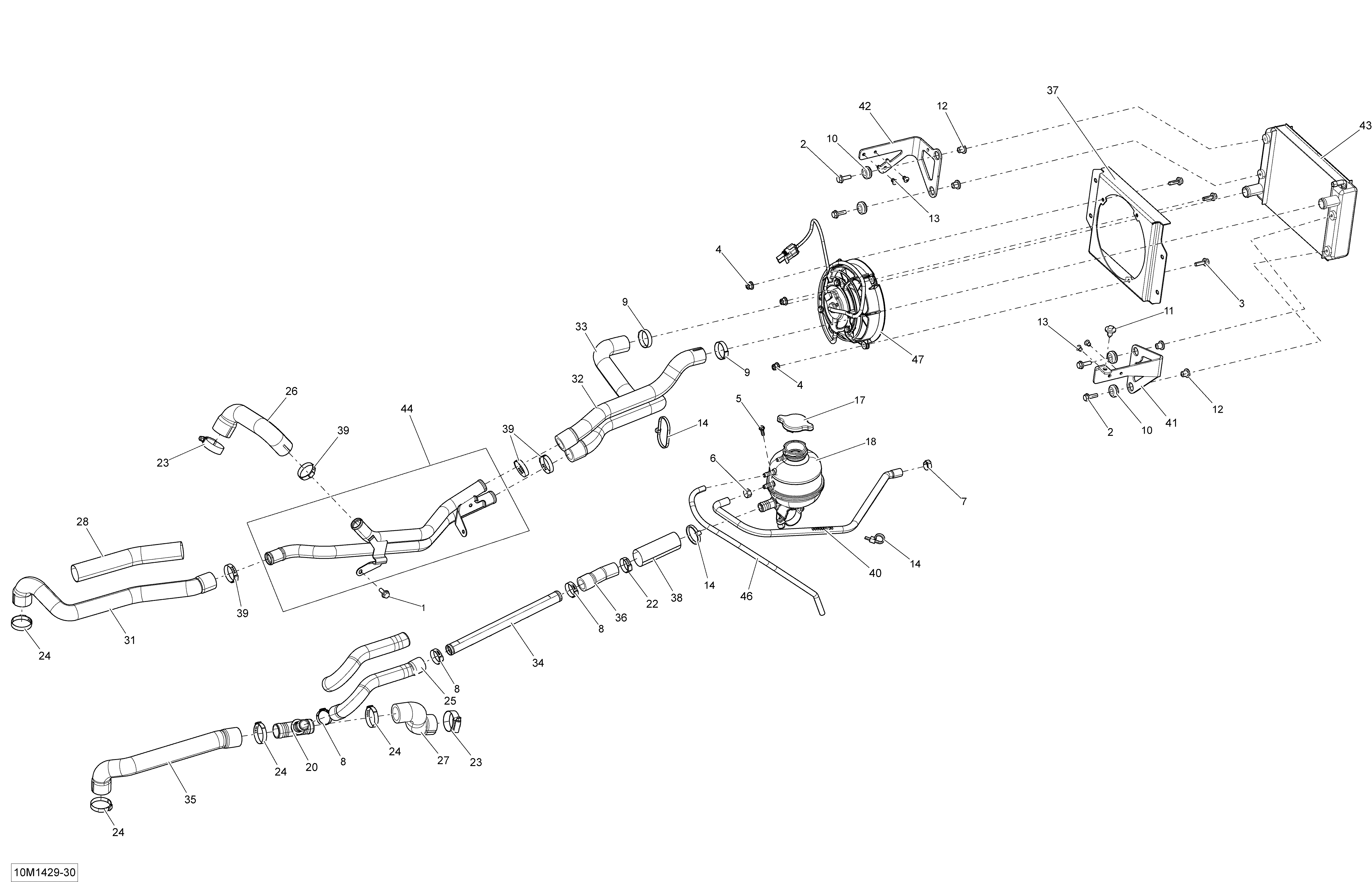

01- Cooling System для BRP Ski-Doo GRAND TOURING SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
6293650025 Oetiker Gear ClampOetiker Gear Clamp
-
7293650046 Oetiker ClampOetiker Clamp
-
8293650099 Crimp ClampCrimp Clamp
-
9293650165 Oetiker ClampOetiker Clamp
-
10293720053 GrommetGrommet
-
11293730040 Mount DartMount Dart
-
12293900100 BushingBushing
-
13390909100 Avex RivetAvex Rivet
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17509000180 Pressure CapPressure Cap
-
18509000368 Coolant TankCoolant Tank
-
20509000372 T-FittingT-Fitting
-
22509000442 Oetiker Gear ClampOetiker Gear Clamp
-
23509000443 Aba Gear ClampAba Gear Clamp
-
24509000529 Oetiker Gear ClampOetiker Gear Clamp
-
25509000563 HoseHose
-
26509000564 Engine Outlet HoseEngine Outlet Hose
-
27509000565 Engine Inlet HoseEngine Inlet Hose
-
28509000513 Protector Tube 32 mmProtector Tube 32 mm
-
31509000634 HoseHose
-
32509000636 Radiator HoseRadiator Hose
-
33509000637 Radiator HoseRadiator Hose
-
34509000644 PipePipe
-
35509000697 Radiator Return HoseRadiator Return Hose
-
36509000698 HoseHose
-
37509000714 Fan SupportFan Support
-
38509000730 Protector Tube 31.75 mm - 90 mmProtector Tube 31.75 mm - 90 mm
-
39509000735 ClampClamp
-
40509000750 Breather HoseBreather Hose
-
41509000754 RH Radiator SupportRH Radiator Support
-
42509000755 LH Radiator SupportLH Radiator Support
-
43509000756 RadiatorRadiator
-
44509000800 Water PipeWater Pipe
-
46276000048 Hose 6 mmHose 6 mm
-
47709200230 FanFan
