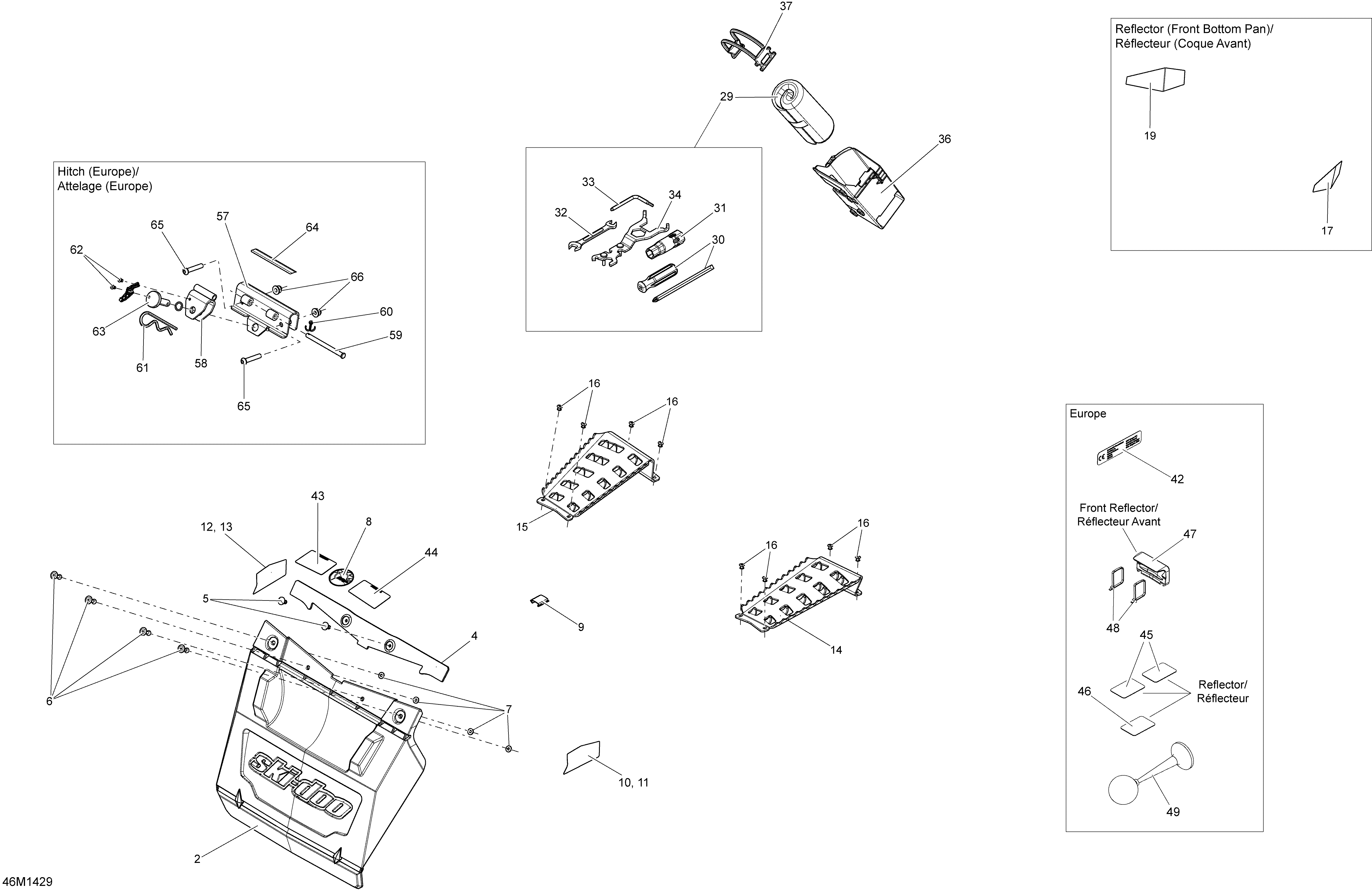

09- Utilities для BRP Ski-Doo GRAND TOURING SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
2520000659 Snow GuardSnow Guard
-
4520000953 Esthetic PlateEsthetic Plate
-
5293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517124300 WasherWasher
-
8219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
9520000829 Radiator TrimRadiator Trim
-
10520000881 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
11520000883 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
12520000880 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
13520000882 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
14520000887 RH FootrestRH Footrest
-
15520000888 LH FootrestLH Footrest
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17520000718 RH Front ReflectorRH Front Reflector
-
19520000719 LH Front ReflectorLH Front Reflector
-
29529000066 Tool Kit. Includes 29 to 34Tool Kit. Includes 29 to 34
-
30529000004 Screw DriverScrew Driver
-
31529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
32529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
33520001142 Spacing ToolSpacing Tool
-
34520000988 Wrench SuspensionWrench Suspension
-
36520000894 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
42516005873 ''CE'' Decal. Europe''CE'' Decal. Europe
-
43516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
44516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
45520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
46415037900 Reflector, White. EuropeReflector, White. Europe
-
47520000871 Reflector Support. EuropeReflector Support. Europe
-
48293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
49549011291 Horn. EuropeHorn. Europe
-
57511000554 Support. EuropeSupport. Europe
-
58511000588 Hitch Plate. EuropeHitch Plate. Europe
-
59511000520 Clevis Pin. EuropeClevis Pin. Europe
-
60371800200 Cotter Pin. EuropeCotter Pin. Europe
-
61114045200 Hair Pin. EuropeHair Pin. Europe
-
62390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
63511000555 Pin. EuropePin. Europe
-
64516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
65205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
66233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
