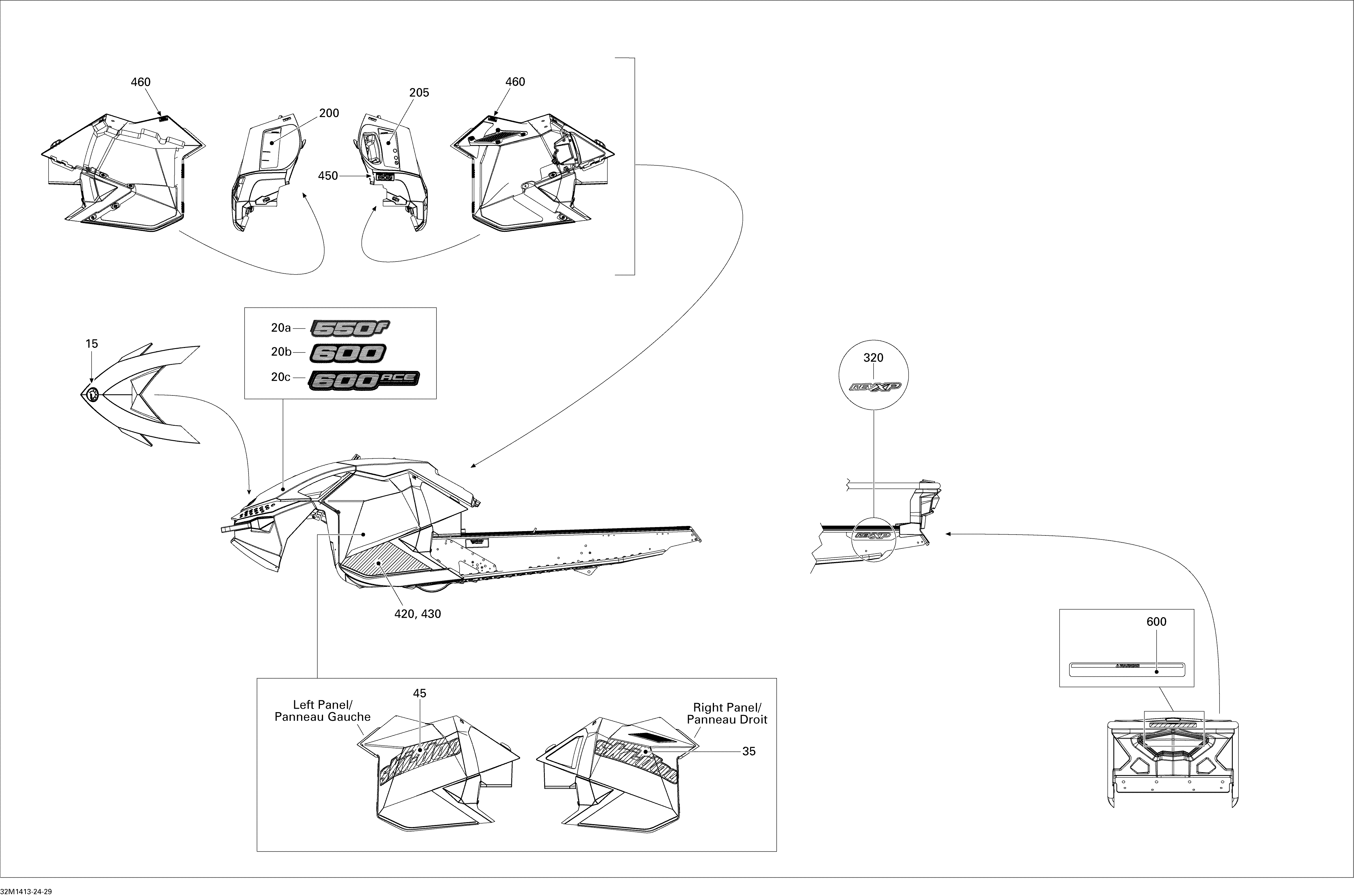

09- Decals для BRP Ski-Doo GRAND TOURING SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20c516006390 Hood Decal, Rotax 600ACEHood Decal, Rotax 600ACE
-
35516005296 RH Side DecalRH Side Decal
-
45516005295 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516006321 Decal, REV XPDecal, REV XP
-
420516006180 RH Lower DecalRH Lower Decal
-
430516006179 LH Lower DecalLH Lower Decal
-
450516005226 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516006117 Warning Decal, TrackWarning Decal, Track
