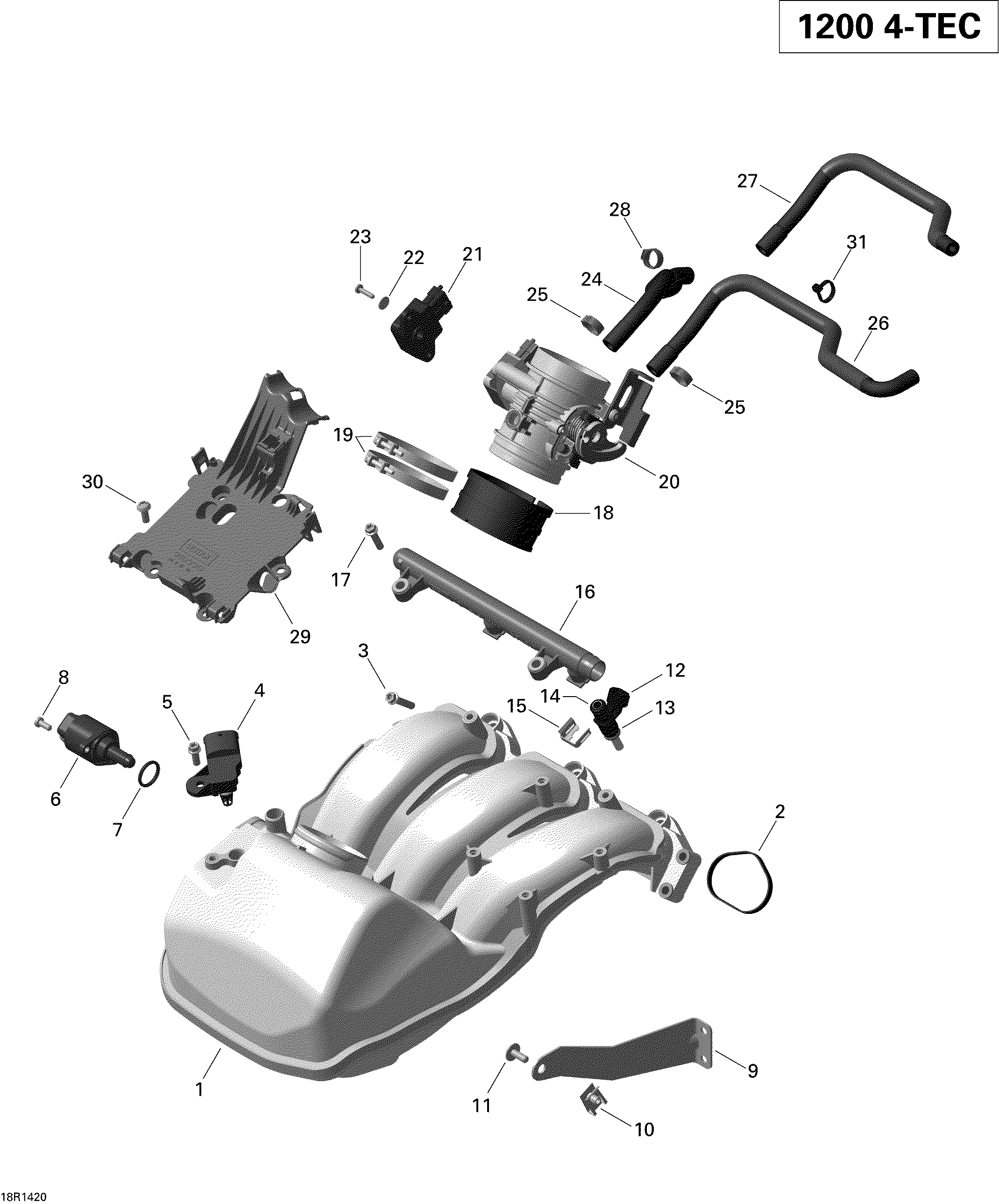

02- Air Intake Manifold And Throttle Body GSX SE для BRP Ski-Doo GSX SE 12004TEC XR - 2014
-
№АртикулНазвание
-
1420667440 Air Intake Manifold. Includes 1 to 2Air Intake Manifold. Includes 1 to 2
-
2420950745 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420665940 Idle Bypass ValveIdle Bypass Valve
-
7420631780 O-RingO-Ring
-
8420640081 Torx Screw M5 X 12Torx Screw M5 X 12
-
9420951011 SupportSupport
-
10420942108 Panel Nut M6 X 1Panel Nut M6 X 1
-
11420241524 Torx Screw M6 X 16Torx Screw M6 X 16
-
12420874830 Injection Valve Ass'y. Includes 12 to 14Injection Valve Ass'y. Includes 12 to 14
-
13420431890 O-RingO-Ring
-
14420631220 O-RingO-Ring
-
15420853030 ClipClip
-
16420874810 Fuel RailFuel Rail
-
17420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420460490 Intake AdaptorIntake Adaptor
-
19420251209 ClampClamp
-
20420891905 Throttle Body Socket Ass'y. Includes 20 to 23Throttle Body Socket Ass'y. Includes 20 to 23
-
21270000251 Position SensorPosition Sensor
-
22234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
23208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
24420460482 Molded HoseMolded Hose
-
25293650125 Oetiker ClampOetiker Clamp
-
27420822662 Molded HoseMolded Hose
-
28420851458 ClampClamp
-
29420910331 Base PlateBase Plate
-
30420641583 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
31420651396 Tie RapTie Rap
