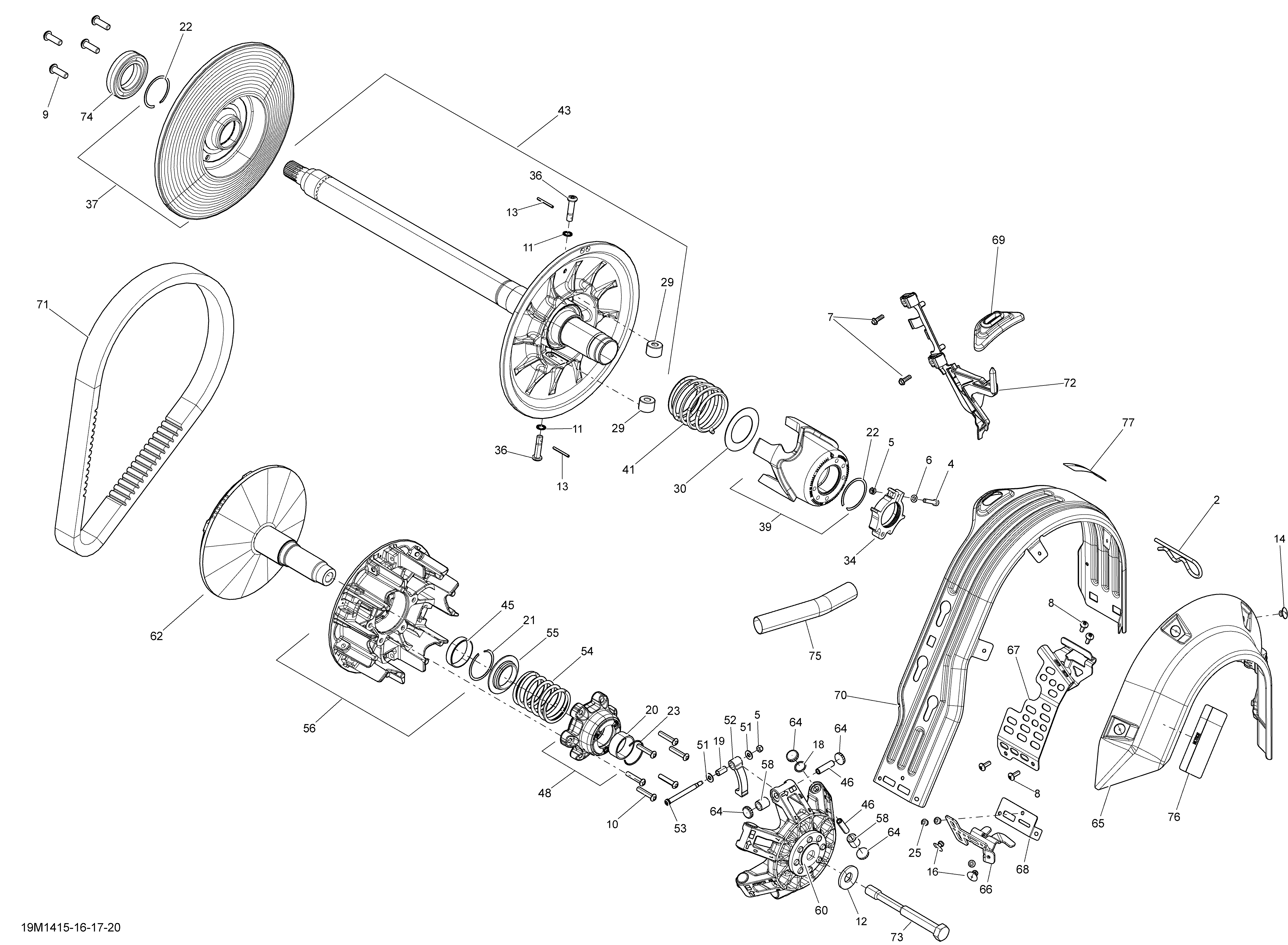

05- Pulley System для BRP Ski-Doo GSX SE 12004TEC XR - 2014
-
№АртикулНазвание
-
2114045200 Hair PinHair Pin
-
4205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
6234051410 Flat Washer M5Flat Washer M5
-
7241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
8250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
9250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
11250200009 Lock Washer 8 mmLock Washer 8 mm
-
12250200144 Conical Spring Washer M14Conical Spring Washer M14
-
13250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
14293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293300169 O RingO Ring
-
19293350078 Journal BearingJournal Bearing
-
20293350079 Journal BearingJournal Bearing
-
21293370037 CirclipCirclip
-
22293370049 CirclipCirclip
-
23293370065 CirclipCirclip
-
25390909200 Avex RivetAvex Rivet
-
29417127016 RollerRoller
-
30417127155 WasherWasher
-
34415129604 Calibration Ass'yCalibration Ass'y
-
36417127294 Pivot StudPivot Stud
-
37417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
39417127424 Cam Ass'yCam Ass'y
-
41417127427 Return SpringReturn Spring
-
43417127362 Fix Flange Ass'yFix Flange Ass'y
-
45417222758 BushingBushing
-
46417223257 Roller AxleRoller Axle
-
48417223650 Spring Cover Ass'ySpring Cover Ass'y
-
51417223660 Stopper WasherStopper Washer
-
52417223679 Rampe 735Rampe 735
-
53417223694 Ramp AxleRamp Axle
-
54417223746 Clutch SpringClutch Spring
-
55417223752 Seat SpringSeat Spring
-
56417223763 Slider Flange Ass'ySlider Flange Ass'y
-
58417223767 RollerRoller
-
60417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
62417223867 Fixe Flange Ass'yFixe Flange Ass'y
-
64417223919 Slider ShoeSlider Shoe
-
65417300356 Side ProtectorSide Protector
-
66417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
67417300361 Belt Guard BracketBelt Guard Bracket
-
68417300380 ReinforcementReinforcement
-
69417300381 GuideGuide
-
70417300382 Belt GuardBelt Guard
-
71417300383 Drive BeltDrive Belt
-
72417300396 Belt Guard BracketBelt Guard Bracket
-
73417300432 Pulley Drive BoltPulley Drive Bolt
-
74504152574 Ball BearingBall Bearing
-
75219702532 Protector Tube 25 mm - 210 mmProtector Tube 25 mm - 210 mm
-
76516005503 Decal, EnglishDecal, English
-
77516005509 Safety Belt Guard DecalSafety Belt Guard Decal
